| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C7-Nano |
| Minimum Order Quantity: | 1PCS |
| Price: | USD199-USD219\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | UAV Heathcare Industrial Jetson Nano Nvidia Dev Board Carrier Board CSI Interface | Key Word: | UAV Heathcare Industrial Jetson Nano Nvidia Dev Board Carrier Board CSI Interface |
|---|---|---|---|
| Expand Interface: | 1x MiniPCIE 1x M.2 Key M | USB Type-C: | 1x Micro USB 1x USB Type-C 1x USB 2.0 |
| 2 Lane MOPI Camera Interface FPC Connector: | X1 | RS-232 Level Serial Port: | X1 |
| 3.3V TTL Level UART Port: | X1 | Gigabit Ethernet（10/100/1000 BASE-T）Connector: | X1 |
| HDMI 2.0 Interface: | X1 | CAN Bus Interface: | X1 |
| Board Size: | 80mm×60mm×8 Mm | Power Supply: | DC +9V~+24V |
| Weight: | 40g | Temperature: | -40~+85℃ |
| High Light: | UAV nvidia dev board,Nano nvidia dev board,UAV nvidia carrier board |
||
UAV Heathcare Industrial Jetson Nano Nvidia Dev Board Carrier Board CSI Interface

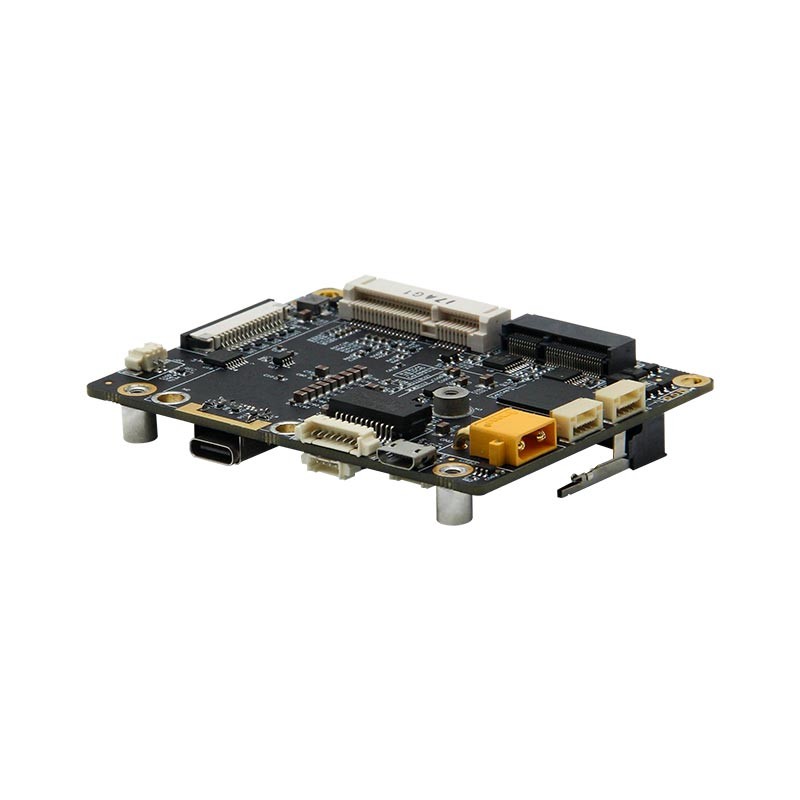

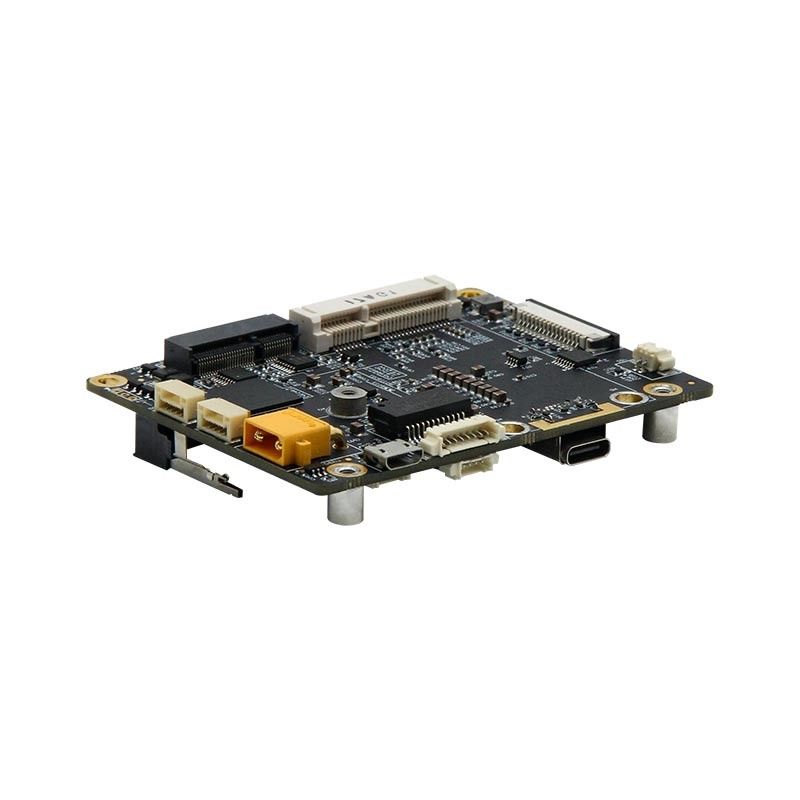

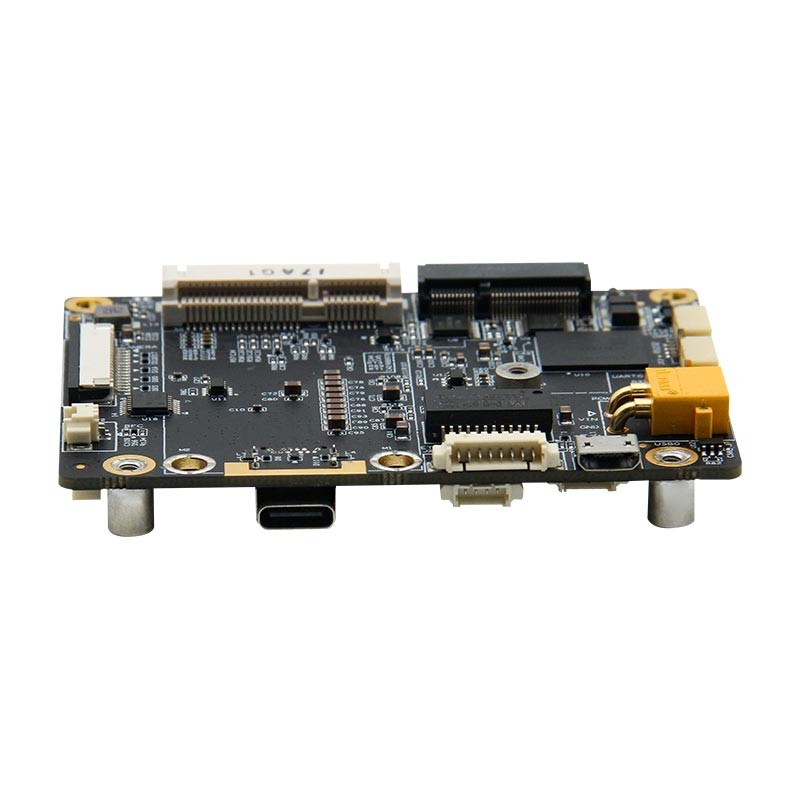

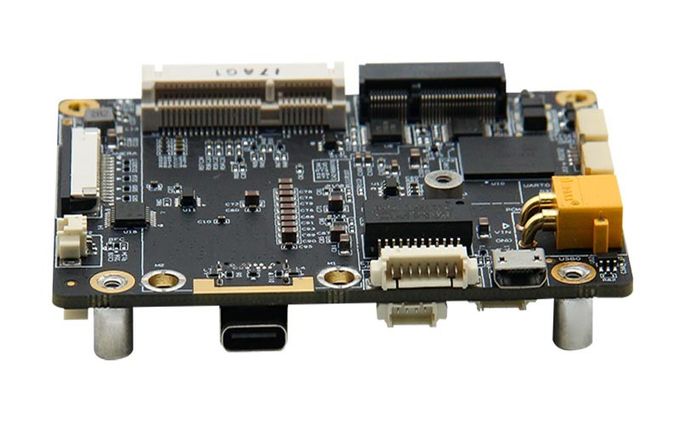

Y-C7-Nano Carrier Board
The Y-C7 carrier board is based on NVIDIA Jetson Nano module, is a NVIDIA DEV board. Through the 2 lane mipi CSI interface on Y-C7, you can access a variety of camera modules, as well as CVBS (PAL / NTSC), SDI, HDMI and other video signals.is a small volume carrier board. For the edge computing application of UAV industry.
| USB3.1 Type-C | 1 |
| RJ45(10 / 100 / 1000 BASE-T) | 1 |
| HDMI 2.0 | 1 |
| GPO(3.3V) | 1 |
| USB 2.0 | 1 |
| I2C(3.3V) | 1 |
| Fan Control | 1 |
| Micro USB | 1 |
| MiniPCIe | 1 |
| CAN | 1 |
| M.2 Key M | 1 |
| UART | 1 |
| RS-232 | 1 |
| GPIO(3.3V) | 3 |
| Temperature | -40~ + 85°C |
| Power supply | DC + 9V~ + 24V |
| Board size | 80mm * 60mm * 16.8mm |
| Weight | 40g |
*When the Y-C7 carrier board used with NVIDIA Jetson Nano module, the CAN bus interface function is unavailable and the M.2 connector is unavailable.
NVIDIA Jetson Nano Module Technical Specifications
| GPU | NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores 0.5 TFLOPs (FP16) |
| Memory | 4 GB 64-bit LPDDR4 1600MHz - 25.6 GB/s |
| Storage | 16 GB eMMC 5.1 Flash |
| CSI Camera | 12 lanes (3x4 or 4x2) MIPI CSI-2 DPHY 1.1 (18 Gbps) |
| CPU | Quad-core ARM® Cortex®-A57 MPCore processor |
| Mechanical | 260-pin edge connector |
