| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson Orin Nano developer kit |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 Usb 2.0 Micro-B Connector 8GB 128-Bit LPDDR5 | Keyword: | NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 Usb 2.0 Micro-B Connector 8GB 128-Bit LPDDR5 |
|---|---|---|---|
| Module: | NVIDIA Jetson ORIN Nano | PN Number: | 945-13766-0000-000 |
| AI Perf: | 40 TOPS | Memory: | 8GB 128-bit LPDDR5 68 GB/s |
| Storage: | SD Card Slot & External NVMe Via M.2 Key M | Networking: | 1xGbE Connector |
| Camera: | 2x MIPI CSI-2 22-pin Camera Connectors | USB: | USB Type-A Connector: 4x USB 3.2 Gen2 USB Type-C Connector For UFP |
| High Light: | 945-13766-0000-000 Nvidia Jetson Nano,USA Nvidia Jetson Nano |
||

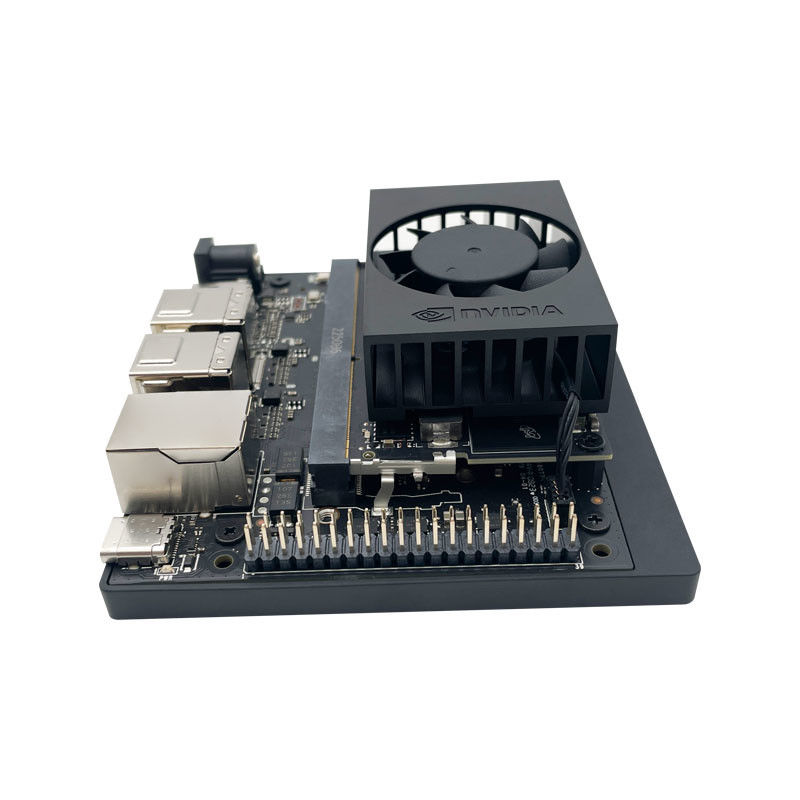

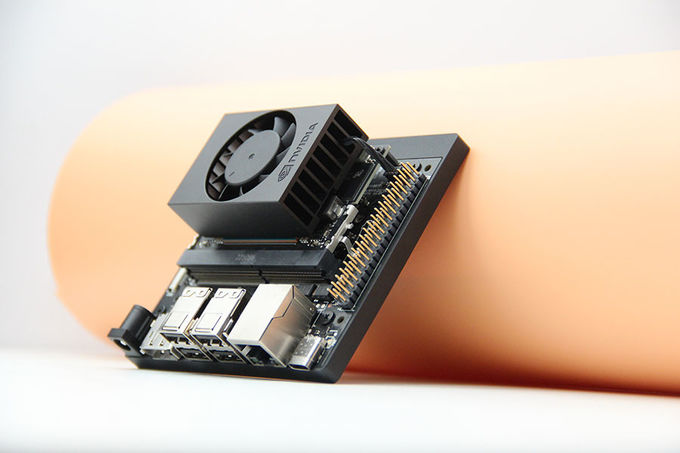

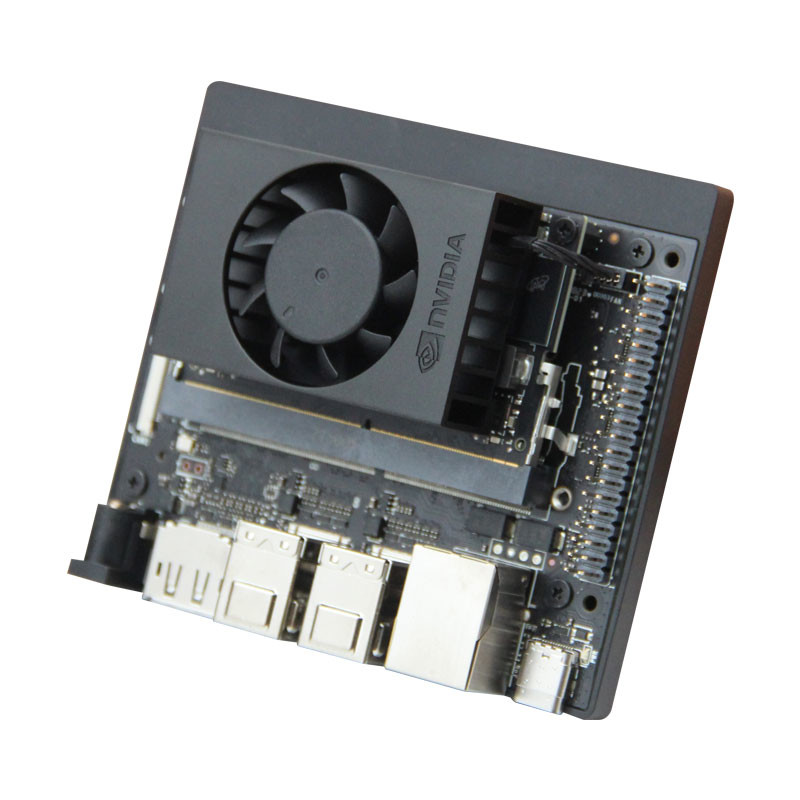

NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 Usb 2.0 Micro-B Connector 8GB 128-Bit LPDDR5
NVIDIA Jeton Orin Nano Developer Kit 945-13766-0000-000
The NVIDIA Jetson Orin Nano developer kit 945-13766-0000-000 carrier board supports five USB connectors. One is a USB 3.2 Type C connector supporting host, device, and USB Recovery. In addition, there are two, dual stacked USB 3.2 Type A connectors. Each connector supports host mode only. A load switch supplying VBUS is provided for each of the USB 3.2 ports per stack and is limited to 3A of output current.The Jetson Orin Nano developer kit 945-13766-0000-000 carrier board provides several connectors with industry standard pinouts to support additional functionality beyond what is integrated on the main platform board. This includes: USB 3.2: Type C connector,USB 3.2: 2 x Type A stacked connectors,Gigabit Ethernet: RJ45 connector,DisplayPort connector, M.2, Key E socket,M.2, Key M socket (4-lane PCIe), M.2, Key M socket (2-lane PCIe)
| NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 | |
| AI Perf | 40 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | - (SD Card Slot & external NVMe via M.2 Key M) |
| Video Encode | 1080p30 supported by 1-2 CPU cores |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| CSI Camera | 2x MIPI CSI-2 22-pin Camera Connectors |
| PCIe | M.2 Key M slot with x4 PCIe Gen3 M.2 Key M slot with x2 PCIe Gen3 M.2 Key E slot |
| USB | USB Type-A Connector: 4x USB 3.2 Gen2 USB Type-C Connector for UFP |
| Networking | 1xGbE Connector |
