| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson Orin Nano developer kit |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | M.2 Key E Carrier Board NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 | Keyword: | M.2 Key E Carrier Board NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 |
|---|---|---|---|
| PN Number: | 945-13766-0000-000 | AI Perf: | 40 TOPS |
| Memory: | 8GB 128-bit LPDDR5 68 GB/s | Storage: | SD Card Slot & External NVMe Via M.2 Key M |
| Networking: | 1xGbE Connector | Camera: | 2x MIPI CSI-2 22-pin Camera Connectors |
| Power: | 7W - 15W | ||
| High Light: | 40 TOPS Orin Nano Dev Kit,Orin Nano Dev Kit 945-13766-0000-000 |
||

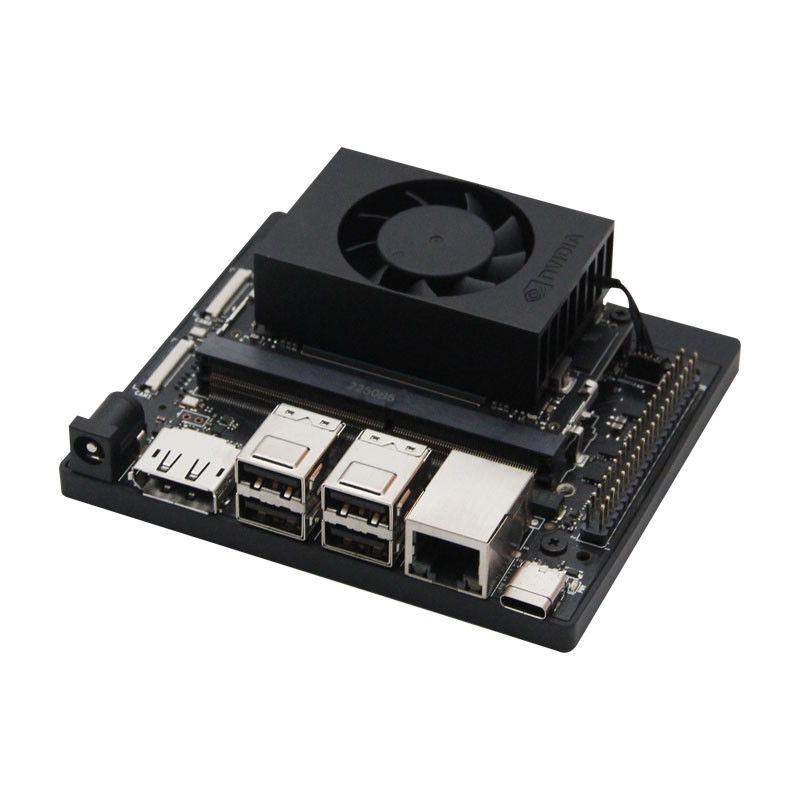

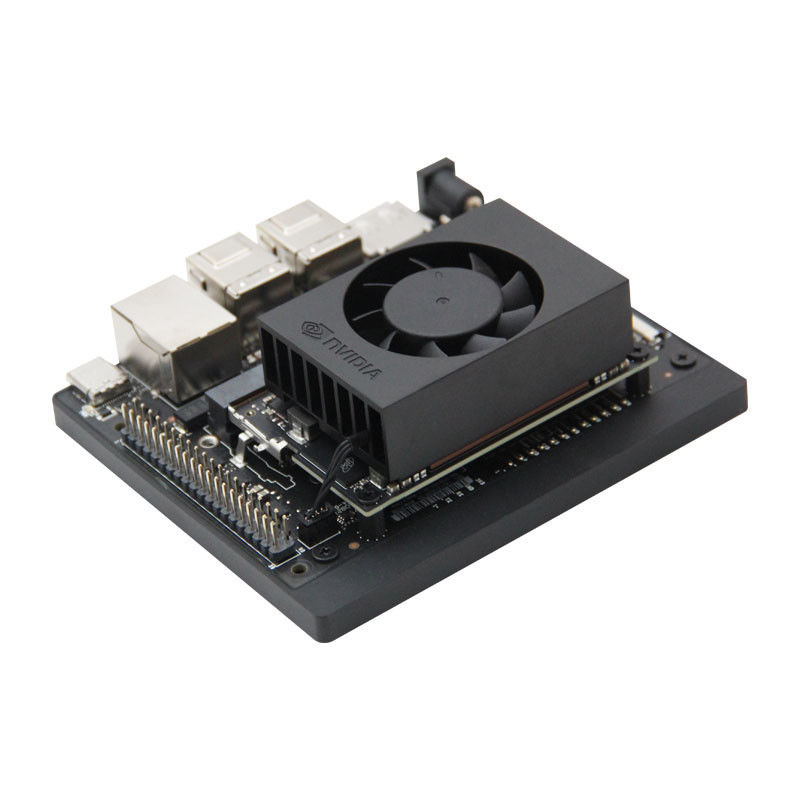

M.2 Key E Carrier Board NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000

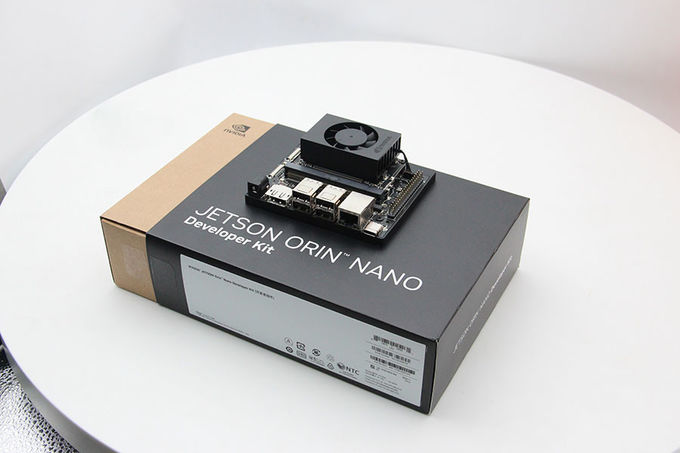

NVIDIA Jeton Orin Nano Developer Kit 945-13766-0000-000
The Carrier Board of NVIDIA® Jetson Orin Nano™ Developer Kit 945-13766-0000-000 includes two M.2, Key M Slots for NVMe storage. The M.2, Key M slot supports PCIe (x4), Gen4. The M.2, Key M slot J24 supports PCIe (x2), Gen4.(Jetson Orin Nano modules supports only up to Gen3 PCIe, and Jetson Orin NX modules support up to Gen4 PCIe, the Jetson Orin Nano Developer Kit carrier board will only support single sided M.2 Key M modules.) The carrier board interfaces to the Jetson Orin Nano module using a 260-pin SODIMM connector , and it has a TE Connectivity 2309413-1 connector. This interfaces with the Jetson Orin Nano edge fingers.
| NVIDIA Jetson Orin Nano Developer Kit | NVIDIA Jetson Nano Developer Kit | |
| AI Perf | 40 TOPS | 472 GFLOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 128-core NVIDIA Maxwell™ architecture GPU |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
Quad-core ARM® Cortex®-A57 MPCore processor |
| Memory | 8GB 128-bit LPDDR5 68 GB/s |
4GB 64-bit LPDDR4 25.6GB/s |
| Storage | - (SD Card Slot & external NVMe via M.2 Key M) |
16GB eMMC 5.1 |
| Video Encode | 1080p30 supported by 1-2 CPU cores | 1x 4K30 (H.265) 2x 1080p60 (H.265) |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
1x 4K60 (H.265) 4x 1080p60 (H.265) |
| CSI Camera | 2x MIPI CSI-2 22-pin Camera Connectors | 2x 15-pin 2-lane MIPI CSI-2 camera connectors |
| PCIe | M.2 Key M slot with x4 PCIe Gen3 M.2 Key M slot with x2 PCIe Gen3 M.2 Key E slot |
x1 on the M.2 Key E |
| USB | USB Type-A Connector: 4x USB 3.2 Gen2 USB Type-C Connector for UFP |
4x USB 3.0 Type-A connectors 1x USB 2.0 Micro-B connector |
| Networking | 1xGbE Connector | Gigabit Ethernet, M.2 Key E |
