| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson Orin Nano developer kit |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 40 TOPS 8GB 2 MIPI | Keyword: | NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 40 TOPS 8GB 2 MIPI |
|---|---|---|---|
| PN Number: | 945-13766-0000-000 | AI Perf: | 40 TOPS |
| Memory: | 8GB 128-bit LPDDR5 68 GB/s | Storage: | SD Card Slot & External NVMe Via M.2 Key M |
| Power: | 7W - 15W | CSI Camera: | 2x MIPI CSI-2 22-pin Camera Connectors |
| High Light: | 945-13766-0000-000 NVIDIA Orin Nano Dev Ki,NVIDIA Orin Nano Dev Ki 40 TOPS |
||

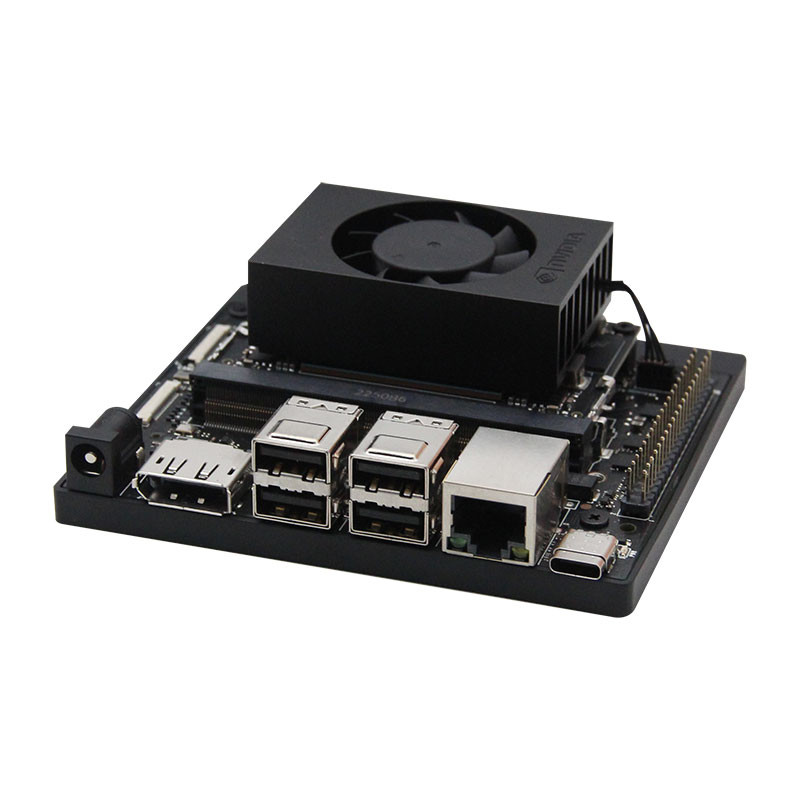

NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 40 TOPS 8GB 2 MIPI
NVIDIA Jeton Orin Nano Developer Kit 945-13766-0000-000
The NVIDIA® Jetson Orin Nano™ Developer Kit 945-13766-0000-000 enables development of AI-powered robots, smart drones, and intelligent cameras based on the Jetson Orin Nano series.The Jetson Orin Nano carrier board includes a M.2, Key E Slot Mini-PCIe Expansion slot . This includes interface options for WiFi/BT including PCIe (x1), USB 2.0, UART, I2S, and I2C optional.The Jetson Orin Nano carrier board is ideal for software development within the Linux environment. Standard connectors are used to access Jetson Orin Nano features and interfaces, enabling a highly flexible and extensible development platform. Go tohttps://developer.nvidia.com/embedded/develop or r contact your NVIDIA representative for access to software updates and the developer SDK supporting the OS image and host development platform that you want to use. The developer SDK includes an OS image that you will load onto your Jetson Orin Nano device, supporting documentation, and code samples to help you get started.The Jetson Orin Nano carrier board supports all the Jetson Orin Nano Series and Jetson Orin NX Series modules.
| NVIDIA Jetson Orin Nano Developer Kit | NVIDIA Jetson Nano Developer Kit | |
| AI Perf | 40 TOPS | 472 GFLOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | 128-core NVIDIA Maxwell™ architecture GPU |
| GPU Max Frequency | 625 MHz | 921MHz |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
Quad-core ARM® Cortex®-A57 MPCore processor |
| CPU Max Frequency | 1.5 GHz | 1.43GHz |
| Memory | 8GB 128-bit LPDDR5 68 GB/s |
4GB 64-bit LPDDR4 25.6GB/s |
| Storage | - (SD Card Slot & external NVMe via M.2 Key M) |
16GB eMMC 5.1 |
| Video Encode | 1080p30 supported by 1-2 CPU cores | 1x 4K30 (H.265) 2x 1080p60 (H.265) |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
1x 4K60 (H.265) 4x 1080p60 (H.265) |
| CSI Camera | 2x MIPI CSI-2 22-pin Camera Connectors | 2x 15-pin 2-lane MIPI CSI-2 camera connectors |
| PCIe | M.2 Key M slot with x4 PCIe Gen3 M.2 Key M slot with x2 PCIe Gen3 M.2 Key E slot |
x1 on the M.2 Key E |
| USB | USB Type-A Connector: 4x USB 3.2 Gen2 USB Type-C Connector for UFP |
4x USB 3.0 Type-A connectors 1x USB 2.0 Micro-B connector |
| Networking | 1xGbE Connector | Gigabit Ethernet, M.2 Key E |
