| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson Orin Nano developer kit |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 AI Module 8GB NVMe SSD Drone | Keyword: | NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 AI Module 8GB NVMe SSD Drone |
|---|---|---|---|
| Module: | NVIDIA Jetson Orin Nano 8GB | PN Number: | 945-13766-0000-000 |
| Storage: | Supports SD Card Slot And External NVMe | Memory: | 8GB 128-bit LPDDR5 68 GB/s |
| M.2 Key M: | X4 PCIe Gen3/x2 PCIe Gen3 | USB: | Type A: 4x USB 3.2 Gen2Type C: 1x For Debug And Device Mode |
| M.2 Key E: | PCIe (x1), USB 2.0, UART, I2S, And I2C | MicroSD Slot: | UHS-1 Cards Up To SDR104 Mode |
| High Light: | 945-13766-0000-000 nvidia developer kit,8GB nvidia developer kit,945-13766-0000-000 jetson developer kit |
||

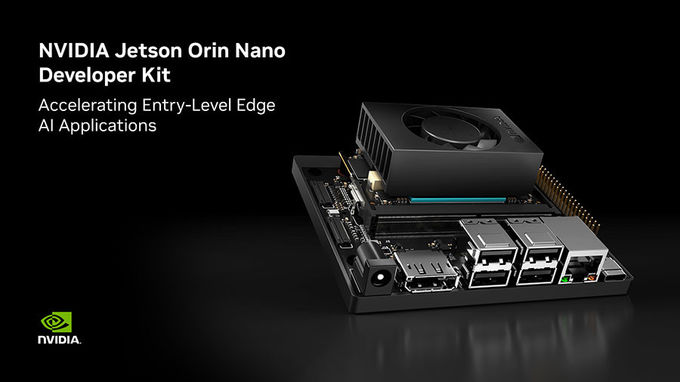

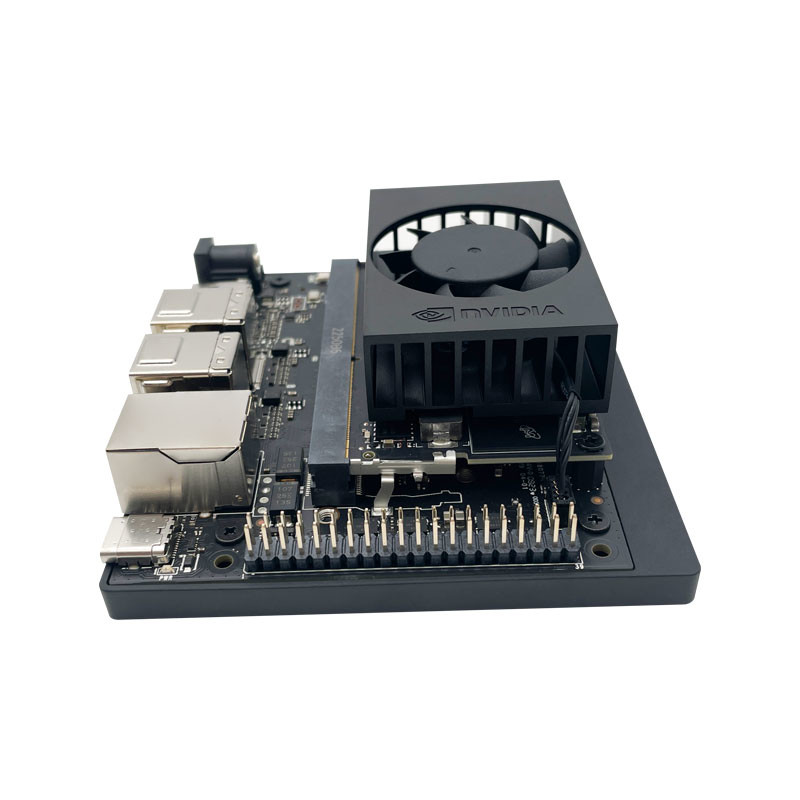

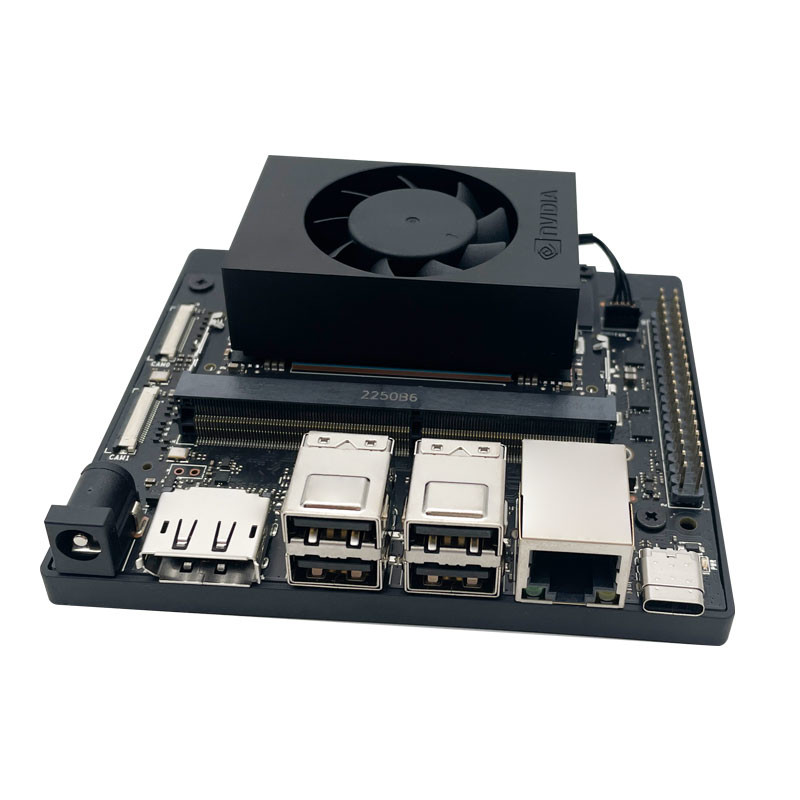

NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 AI Module 8GB NVMe SSD Drone
NVIDIA Jeton Orin Nano Developer Kit 945-13766-0000-000
The Nvidia Jetson Orin Nano Developer Kit 945-13766-0000-000 is based on the Nvidia Jetson Orin Nano core module with up to 40 TOPS of computing power,can run all modern AI models,2 MIPI CSI-2 22-pin Camera Connectors,2 M.2 Key M, M.2 Key E,40-pin Expansion Header (UART, SPI, I2S, I2C, GPIO),12-pin button heade,r4-pin fan header DC power jack,NVIDIA Jetson Orin Nano and NVIDIA DeepStream make an ideal combination for edge applications, such as smart retail, smart city intersections, and industrial automation. With the upcoming version of DeepStream, and the introduction of the GXF runtime, Jetson Orin Nano is an ideal platform for running AI graphs that require tight integration with deterministic systems, common in factory automation use cases.
| Module | NVIDIA Jetson Orin Nano 8 GB Module |
| GPU | NVIDIA Ampere architecture with 1024 NVIDIA CUDA Cores and 32 Tensor Cores |
| CPU | 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5 MB L2 + 4 MB L3 |
| Memory | 8 GB 128-bit LPDDR5 68 GB/s |
| Storage | External through microSD slot External NVMe through M.2 Key M |
| Power | 7 W to 15 W |
NVIDIA Jetson Orin Nano Developer Kit module specs
| REFERENCE CARRIER BOARD | |
| Camera | 2x MIPI CSI-2 22-pin Camera Connectors |
| M.2 Key M | x4 PCIe Gen3 |
| M.2 Key M | x2 PCIe Gen3 |
| M.2 Key E | PCIe (x1), USB 2.0, UART, I2S, and I2C |
| USB | Type A: 4x USB 3.2 Gen2 |
| Type C: 1x for Debug and Device Mode | |
| microSD slot | UHS-1 cards up to SDR104 mode |
| Others | 40-pin Expansion Header (UART, SPI, I2S, I2C, GPIO)12-pin button header4-pin fan headerDC power jack |
