| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson Orin Nano developer kit |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | 945-13766-0000-000 Jetson Orin Nano 8GB Module NVIDIA Jetson Orin Nano Developer Kit Ampere GPU | Keyword: | 945-13766-0000-000 Jetson Orin Nano 8GB Module NVIDIA Jetson Orin Nano Developer Kit Ampere GPU |
|---|---|---|---|
| PN Number: | 945-13766-0000-000 | Module: | NVIDIA Jetson Orin Nano 8GB |
| AI Perf: | 40 TOPS | Memory: | 8GB 128-bit LPDDR5 68 GB/s |
| GPU: | NVIDIA Ampere Architecture With 1024 CUDA Cores And 32 Tensor Cores | Storage: | Supports SD Card Slot And External NVMe |
| Camera: | 2x MIPI CSI-2 22-pin Camera Connectors | Power: | 7W-15W |
| USB Type-A Connector: | 4x USB 3.2 Gen2 | Mechanical: | 100 Mm X 79 Mmx 21 Mm (Height Includes Feet, Carrier Board, Module, And Thermal Solution) |
| High Light: | 945-13766-0000-000 Jetson Orin Developer Kit,Ampere GPU Jetson Orin Developer Kit |
||

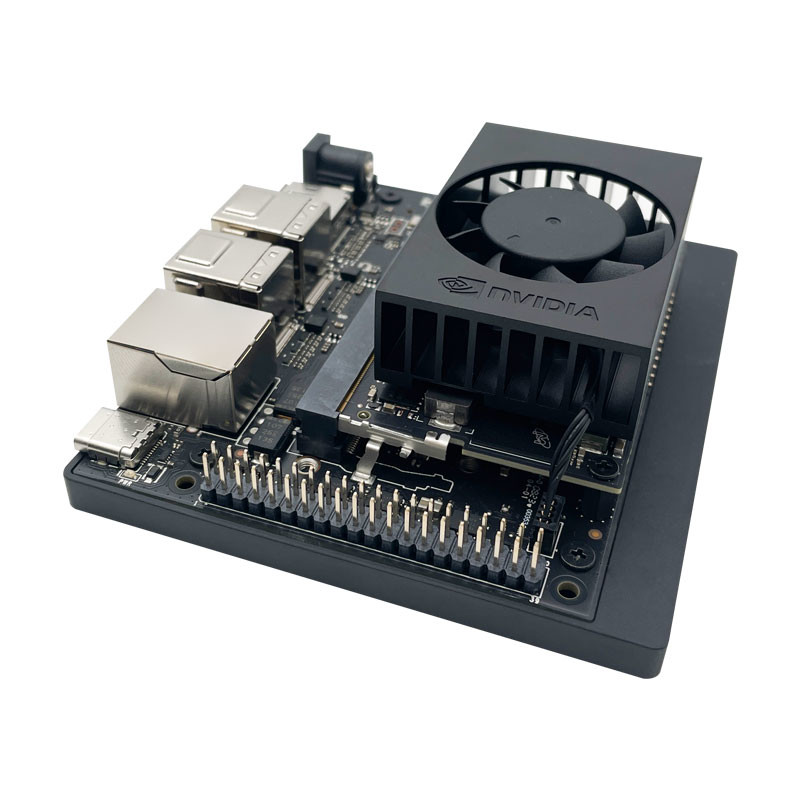

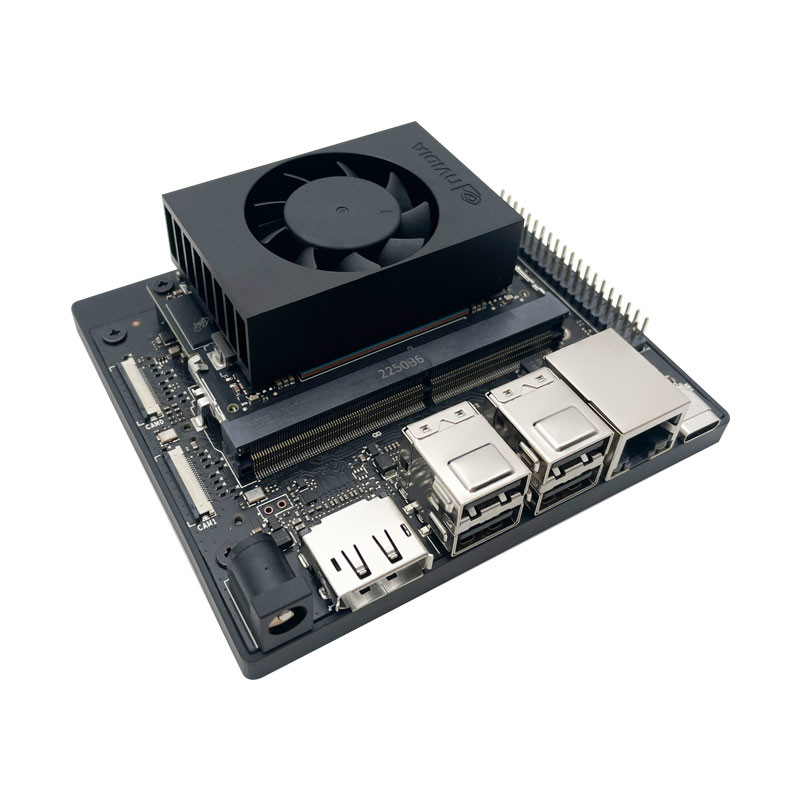

945-13766-0000-000 Jetson Orin Nano 8GB Module NVIDIA Jetson Orin Nano Developer Kit Ampere GPU
NVIDIA Jeton Orin Nano Developer Kit 945-13766-0000-000
The Jetson Orin Nano Developer Kit 945-13766-0000-000 includes a Jetson Orin Nano 8 GB compute module, reference carrier board, heatsink/fan, DC power supply, and 802.11ac/abgn WLAN+BT module,and it includes a special NVIDIA Orin Nano 8 GB module with an SD-card slot, a reference carrier board, preassembled heatsink/fan, a 19 V DC power supply, and an M.2-Key E based wireless networking module. In addition to the bootable microSD card slot, two M.2 Key-M NVMe sockets are provided on the underside of the carrier for high-speed storage.with up to 40 TOPS of AI performance, can run all modern AI models. This major leap in compute makes the most demanding AI applications possible, including running transformer models right at the edge, which was not possible before with Jetson Nano.
Key Features
NVIDIA Jeton Orin Nano Developer Kit 945-13766-0000-000 Content
> Jetson Orin NanoTM 8GB module with heat sink and reference carrier board
> DC Power Supply
> 802.11ac/abgn wireless network
interface controller
> Quick Start Guide
|
AI Perf |
40 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 68 GB/s |
| Storage |
Supports SD card slot and external NVMe |
| Power |
7W-15W |
| Video Encode | 1080p30 supported by 1-2 CPU cores |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| CSI Camera | 2x MIPI CSI-2 22-pin Camera Connectors |
| PCIe | M.2 Key M slot with x4 PCIe Gen3 M.2 Key M slot with x2 PCIe Gen3 M.2 Key E slot |
| USB | USB Type-A Connector: 4x USB 3.2 Gen2 USB Type-C Connector for UFP |
| Networking | 1xGbE Connector |
| Display | 1x DisplayPort 1.2 (+MST) connector |
| Mechanical | 100 mm x 79 mmx 21 mm (Height includes feet, carrier board, module, and thermal solution) |
