| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson Orin Nano developer kit |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | Nvidia Jetson Orin Nano Developer Kit 945-13766-0000-000 Orin Nano Module NVIDIA Ampere GPU | Keyword: | Nvidia Jetson Orin Nano Developer Kit 945-13766-0000-000 Orin Nano Module NVIDIA Ampere GPU |
|---|---|---|---|
| PN Number: | 945-13766-0000-000 | AI Perf: | 40 TOPS |
| DL Accelerator: | - | Networking: | 1xGbE Connector |
| Memory: | 8GB 128-bit LPDDR5 68 GB/s | Storage: | SD Card Slot & External NVMe Via M.2 Key M |
| Display: | 1x DisplayPort 1.2 (+MST) Connector | Mechanical: | 100 Mm X 79 Mmx 21 Mm (Height Includes Feet, Carrier Board, Module, And Thermal Solution) |
| High Light: | 945-13766-0000-000 Jetson Nano Orin 8gb Module,40 TOPS Jetson Nano Orin 8gb Module |
||

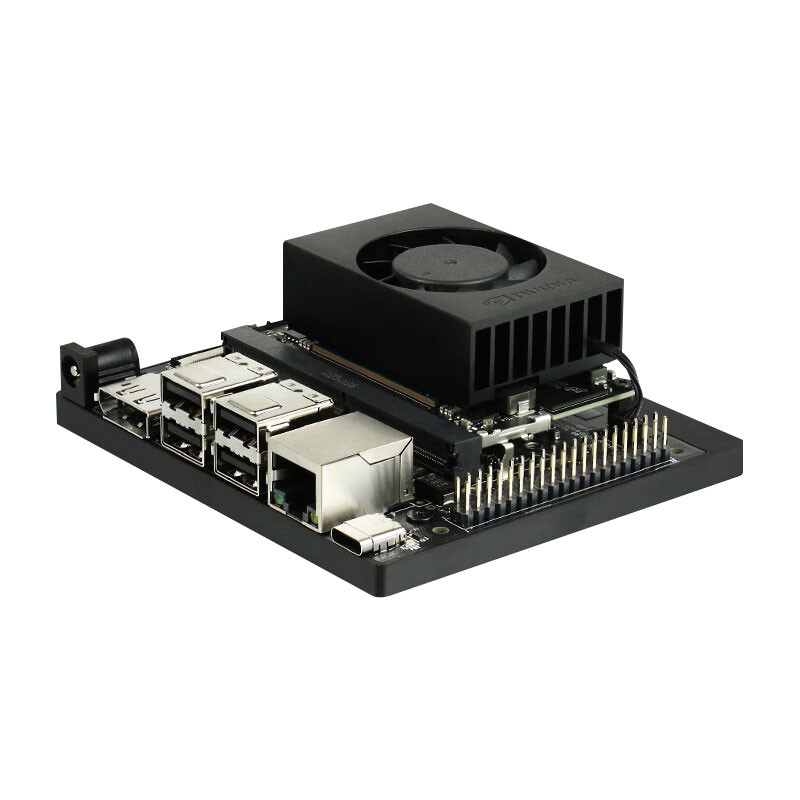

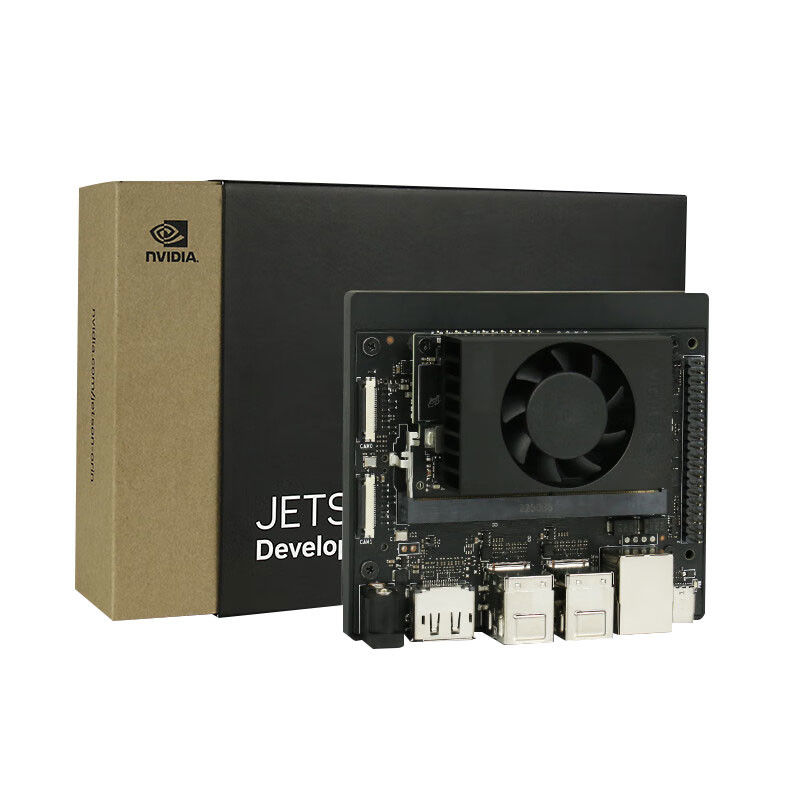

Nvidia Jetson Orin Nano Developer Kit 945-13766-0000-000 Orin Nano Module NVIDIA Ampere GPU
NVIDIA Jeton Orin Nano Developer Kit Specification 945-13766-0000-000
The NVIDIA Jetson Orin Nano Developer Kit 945-13766-0000-000 sets a new standard for creating entry-level AI-powered robots, smart drones, and intelligent cameras, while simplifying the process of starting with the Jetson Orin Nano series. and the NVIDIA Jetson Orin Nano series modules deliver up to 40 TOPS of AI performance,The Jetson Orin Nano developer kit carrier board 945-13766-0000-000 implements an RJ45 connector along with the necessary magnetics device. and includes a M.2, Key E Slot Mini-PCIe Expansion slot . This includes interface options for WiFi/BT including PCIe (x1), USB 2.0, UART, I2S, and I2C optional.(Notes:The Jetson Orin Nano Developer Kit carrier board will only support single sided M.2 Key E modules.Stuffing resistors for connecting I2C2 to pins 58 and 60 of the M.2 Key E connector are not installed by default. If I2C is required, 0Ω resistors can be installed at locations R106 and R107. Care should be taken as some M.2 cards can cause conflicts with other devices connected to the I2C interface.
|
AI Perf |
40 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | - (SD Card Slot & external NVMe via M.2 Key M) |
| Video Encode | 1080p30 supported by 1-2 CPU cores |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| CSI Camera | 2x MIPI CSI-2 22-pin Camera Connectors |
| PCIe | M.2 Key M slot with x4 PCIe Gen3 M.2 Key M slot with x2 PCIe Gen3 M.2 Key E slot |
| USB | USB Type-A Connector: 4x USB 3.2 Gen2 USB Type-C Connector for UFP |
| Networking | 1xGbE Connector |
| Display | 1x DisplayPort 1.2 (+MST) connector |
| Mechanical | 100 mm x 79 mmx 21 mm (Height includes feet, carrier board, module, and thermal solution) |

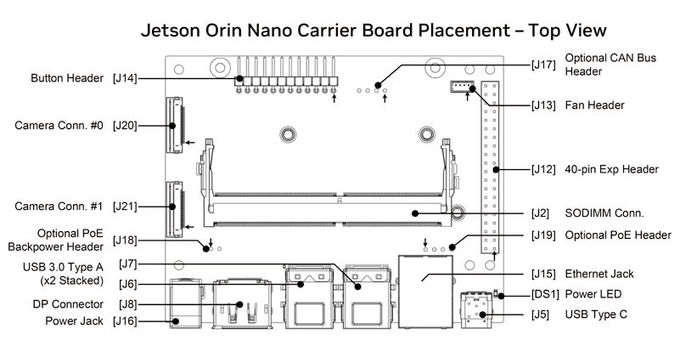

J2 Jetson Orin Nano Conn. (SODIMM, 260-pin)
J5 USB Type C
J6 USB Type A Dual Stacked Connector
J7 USB Type A Dual Stacked Connector
J8 DisplayPort Connector
J12 40-pin Expansion Header (2x20, 2.54 mm pitch)
J13 Fan Header (4-pin, 1.25 mm pitch)
J14 Button Header (1x12, 2.54 mm pitch, RA)
J15 RJ45 Ethernet Socket, 18-pins, RA, Female
J16 Power Jack
J17 Optional: CAN Bus Header (1x4, 2.54 mm pitch, RA)
J18 Optional: PoE Backpower Header (1x2, 2.54 mm pitch)
J19 Optional: PoE Header (1x4, 2.54 mm pitch)
J20 Camera (#0) Connector (22 pos, 0.5 mm pitch)
J21 Camera (#1) Connector (22 pos, 0.5 mm pitch)
DS1 Power LED (Green)

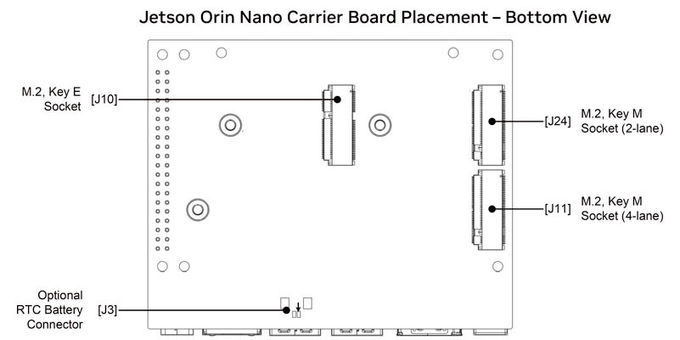

J3 Optional: RTC Back-up Coin Cell Socket (CR1225)
J10 M.2 Key E Connectivity Slot (75-pin)
J11 M.2 Key M Slot (75-pin)
J24 M.2 Key M Slot (75-pin)
