| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson Orin Nano developer kit |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | Jetson Orin Nano Developer Kit 945-13766-0000-000 Carrier Board 8 GB 40 TOPS Nvidia Jetson Orin Nano Module | Keyword: | Jetson Orin Nano Developer Kit 945-13766-0000-000 Carrier Board 8 GB 40 TOPS Nvidia Jetson Orin Nano Module |
|---|---|---|---|
| PN Number: | 945-13766-0000-000 | AI Perf: | 40 TOPS |
| Memory: | 8GB 128-bit LPDDR5 68 GB/s | Storage: | SD Card Slot & External NVMe Via M.2 Key M |
| CSI Camera: | 2x MIPI CSI-2 22-pin Camera Connectors | Power: | 7W - 15W |
| High Light: | 945-13766-0000-000 Jetson Carrier Board,Jetson Carrier Board 8 GB,40 TOPS Jetson Carrier Board |
||

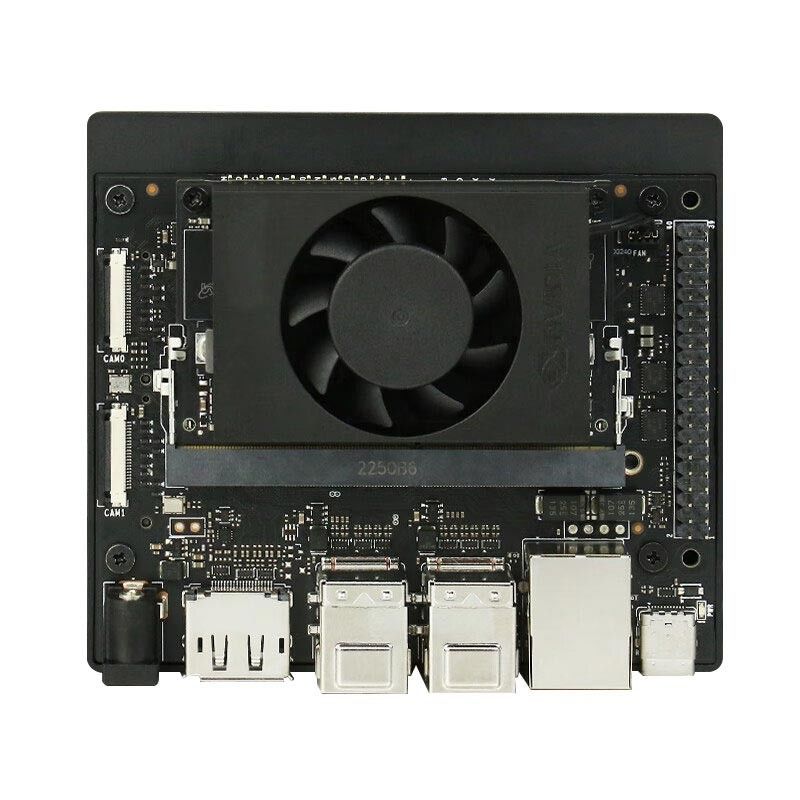

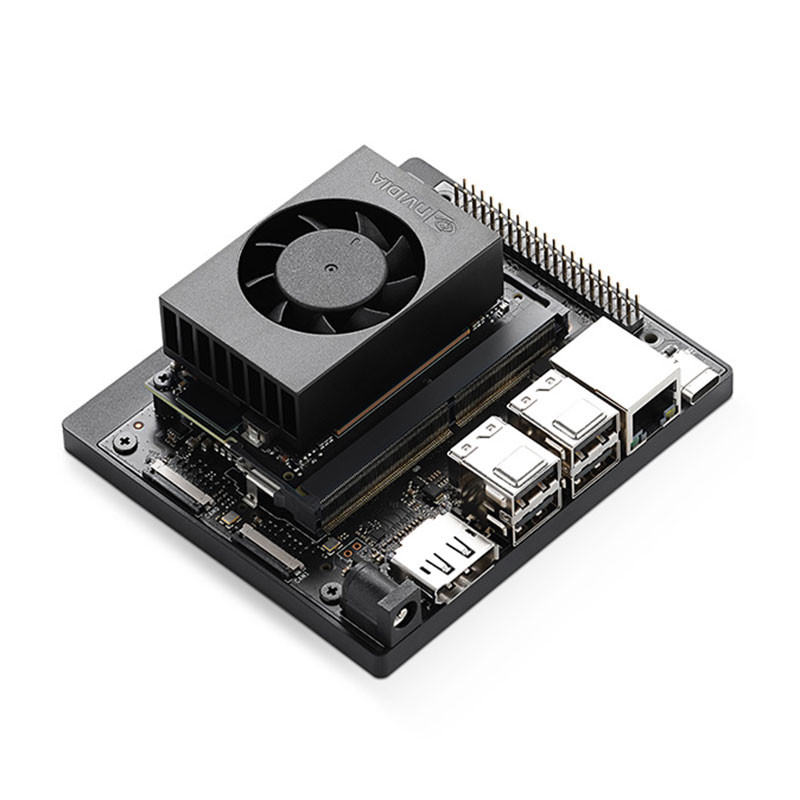

Jetson Orin Nano Developer Kit 945-13766-0000-000 Carrier Board 8 GB 40 TOPS Orin Nano Module
NVIDIA Jeton Orin Nano Developer Kit 945-13766-0000-000
The NVIDIA Jetson Orin Nano carrier board 945-13766-0000-000 is ideal for software development within the Linux environment. Which give you up to 40 TOPS and Standard connectors are used to access Jetson Orin Nano features and interfaces, enabling a highly flexible and extensible development platform. The developer SDK includes an OS image that you will load onto your Jetson Orin Nano developer kit 945-13766-0000-000, supporting documentation, and code samples to help you get started. The Jetson Orin Nano developer kit carrier board 945-13766-0000-000 supports all the Jetson Orin Nano Series and Jetson Orin NX Series modules. The NVIDIA Jetson Orin Nano developer kit carrier board 945-13766-0000-000 has been modified to only support 5V to the module. The MODULE_ID signal is not pulled up on the carrier board. This means that regardless of the capability of the module, VDD_IN will be 5V only. Custom carrier boards can still be designed to support 5 V and 19 V and use the MODULE_ID to identify a 5 V vs. 19 V Input.
Jetson Orin Nano Module Feature
> Memory
8 GB 128-bit wide LPDDR5 DRAM (68 GB/s)
Micro SD card socket (UHS-1)
> Networking
• 10/100/1000 BASE-T Ethernet
> Advanced power management (APM)
> Dynamic voltage and frequency scaling
> Multiple clock and power domains
|
AI Perf |
40 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | - (SD Card Slot & external NVMe via M.2 Key M) |
| Video Encode | 1080p30 supported by 1-2 CPU cores |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| CSI Camera | 2x MIPI CSI-2 22-pin Camera Connectors |
| PCIe | M.2 Key M slot with x4 PCIe Gen3 M.2 Key M slot with x2 PCIe Gen3 M.2 Key E slot |
| USB | USB Type-A Connector: 4x USB 3.2 Gen2 USB Type-C Connector for UFP |
| Networking | 1xGbE Connector |
| Display | 1x DisplayPort 1.2 (+MST) connector |
| Mechanical | 100 mm x 79 mmx 21 mm (Height includes feet, carrier board, module, and thermal solution) |
