| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson nano |
| Minimum Order Quantity: | 1PCS |
| Price: | USD130-USD140\PCS |
| Delivery Time: | 15-30 wok days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | 472 GFLOPS Jetson Nano Nvidia Image Processing Board AI Chip Edge Computing Board | Keyword: | 472 GFLOPS Jetson Nano Nvidia Image Processing Board AI Chip Edge Computing Board |
|---|---|---|---|
| Model Number: | NVIDIA Jetson Nano | GPU: | NVIDIA Maxwell™ Architecture With 128 NVIDIA CUDA® Cores 0.5 TFLOPs (FP16) |
| Memory: | 4 GB 64-bit LPDDR4 1600MHz - 25.6 GB/s | AI Performance: | 472 GFLOPS |
| CPU: | Quad-core ARM® Cortex®-A57 MPCore Processor | Storage: | 16 GB EMMC 5.1 Flash |
| Video Decode: | 4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265) | Power: | 5W | 10W |
| UPYH: | HDMI 2.0 Or DP1.2 | EDP 1.4 | DSI (1 X2) 2 Simultaneous | Mechanical: | 69.6 Mm X 45 Mm/260-pin Edge Connector |
| High Light: | GFLOPS nvidia image processing board,AI nvidia image processing board,GFLOPS edge computing board |
||
472 GFLOPS Jetson Nano Nvidia Image Processing Board AI Chip Edge Computing Board
NVIDIA Module

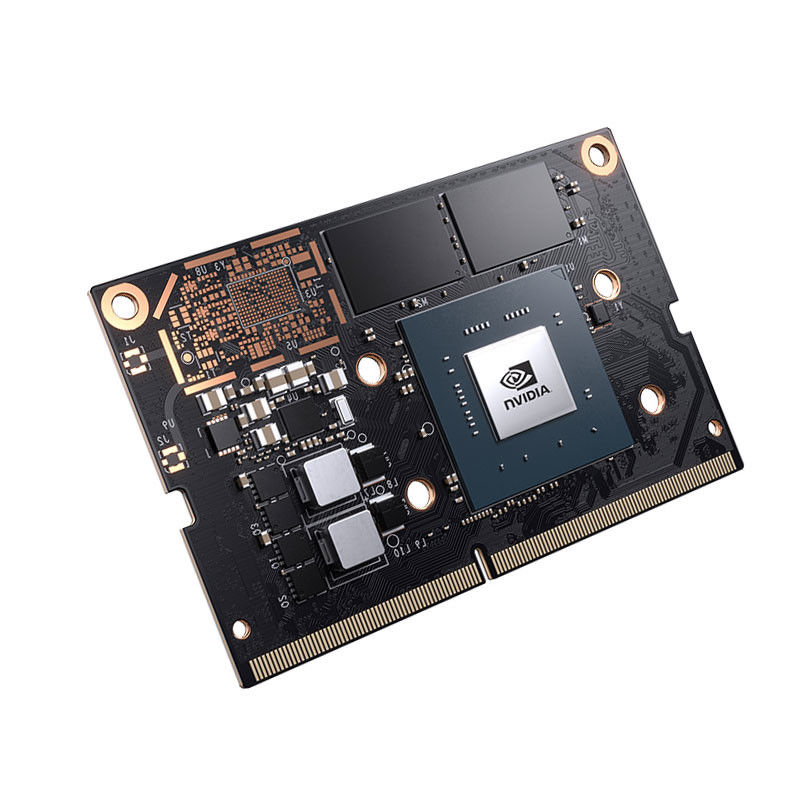

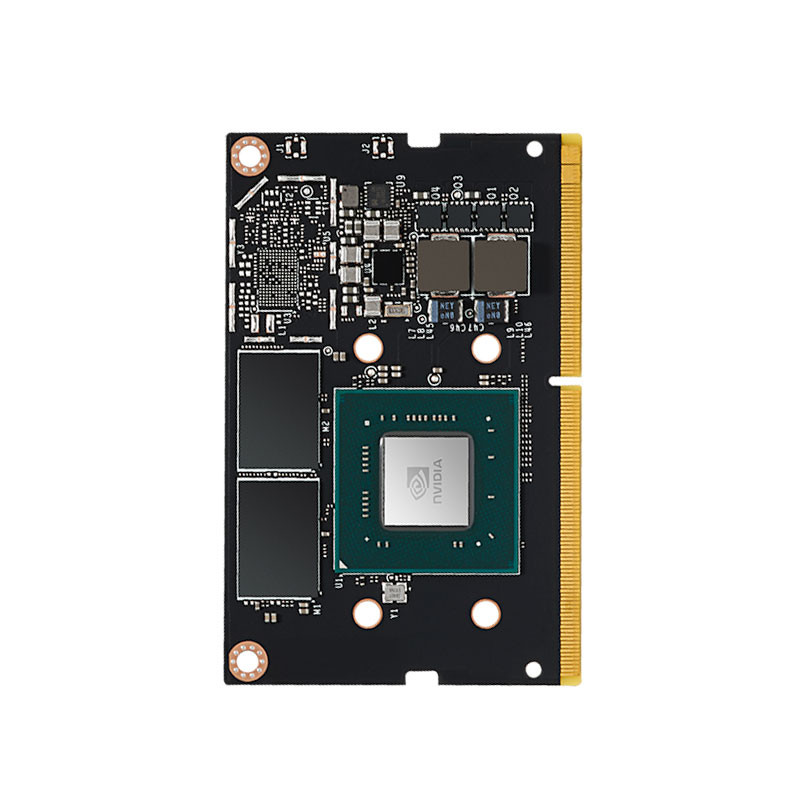

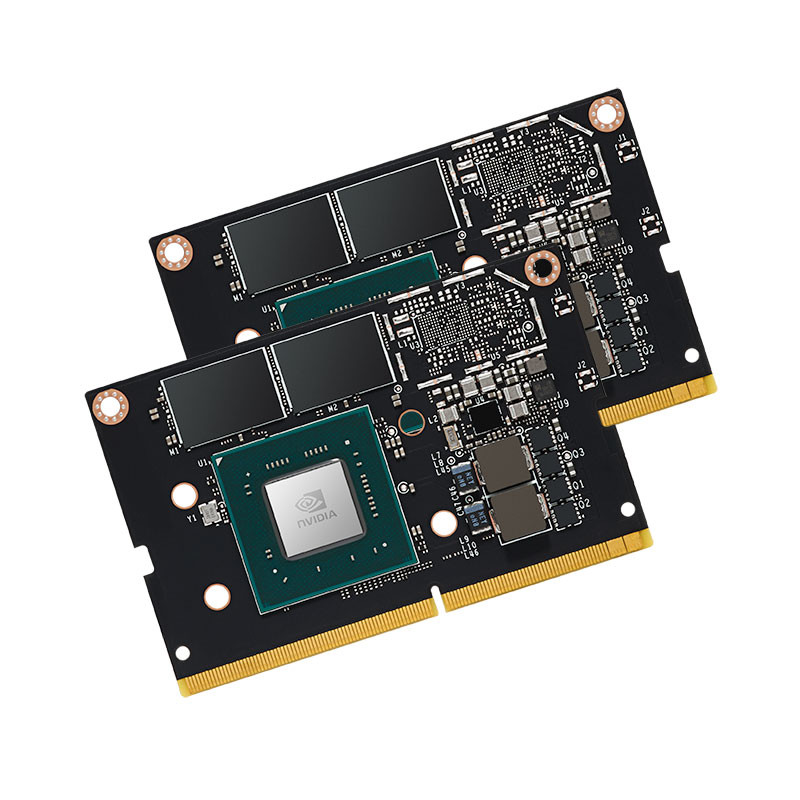

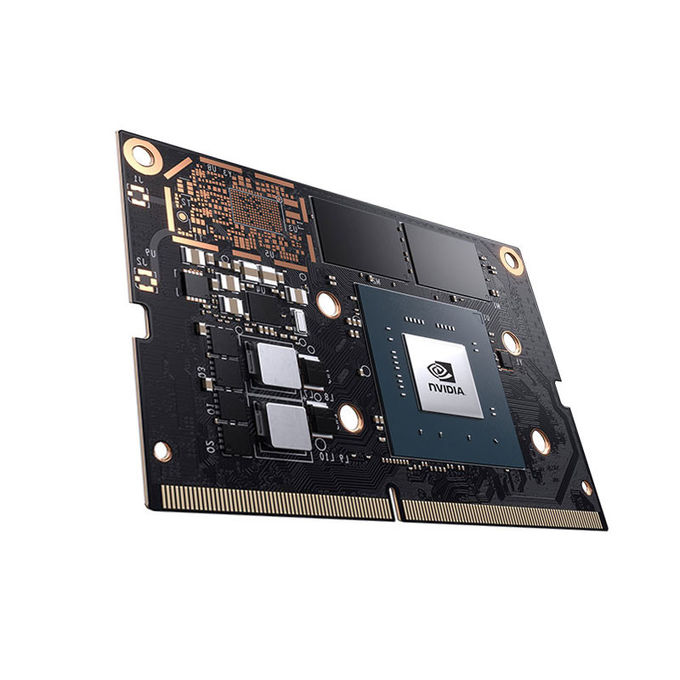

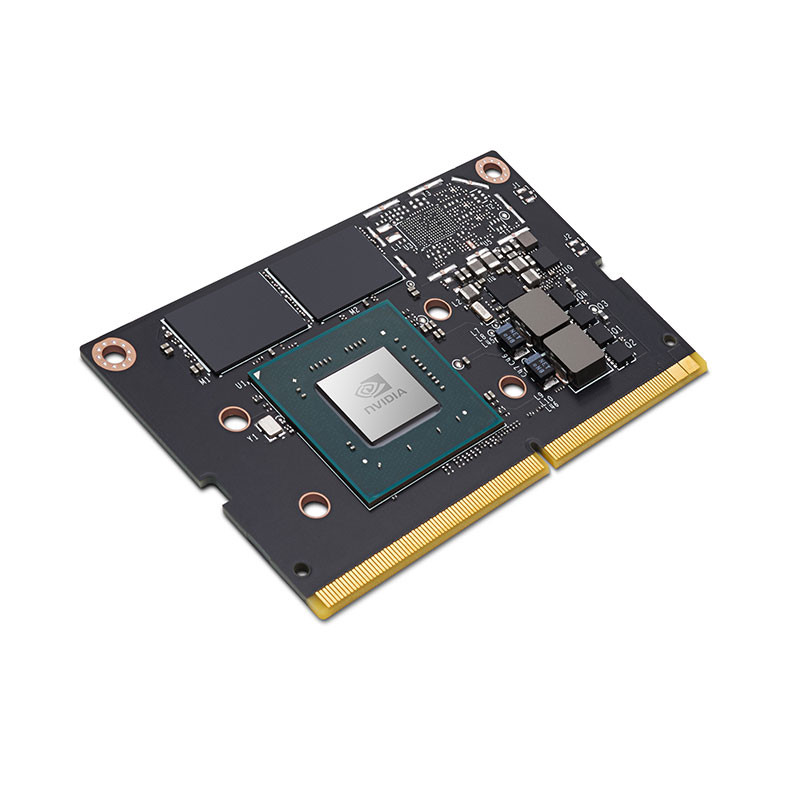

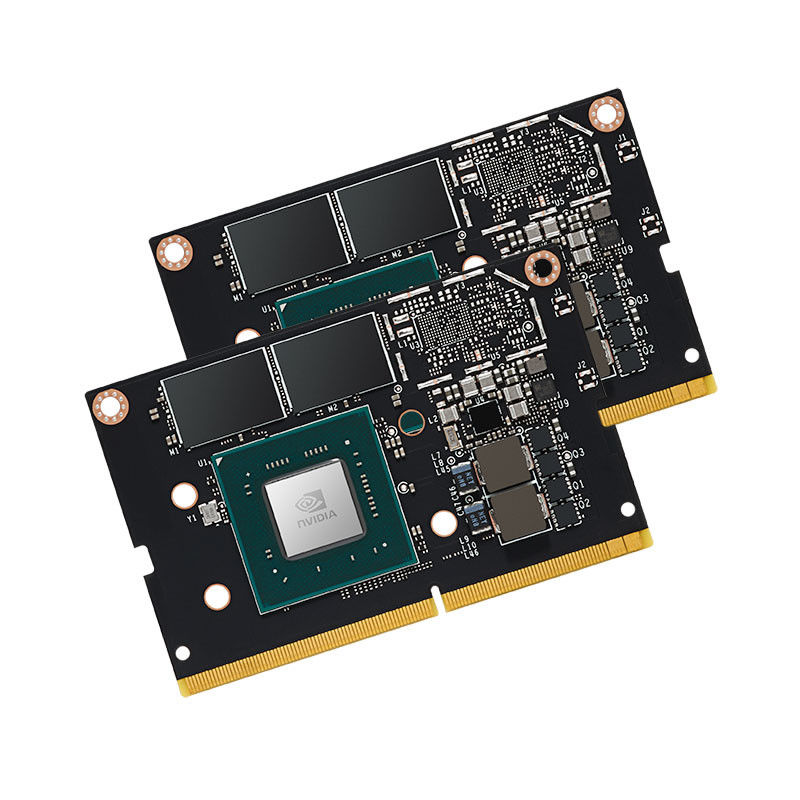

NVIDIA Jetson Nano Module
Maxwell GPU + ARM Cortex-A57 + 4GB LPDDR4 + 16GB eMMC
Storage
eMMC 5.1 Flash Storage | Bus Width: 8-bit | Maximum Bus Frequency: 200MHz (HS400) | Storage Capacity: 16GB
Mechanical
Module Size: 69.6 mm x 45 mm | PCB: 8L HDI | Connector: 260 pin SO-DIMM
Clocks
System clock: 38.4MHz | Sleep clock: 32.768kHz | Dynamic clock scaling and clock source selection
Multi-Stream HD Video and JPEG
Video Decode
H.265 (Main, Main 10): 2160p 60fps | 1080p 240fps
H.264 (BP/MP/HP/Stereo SEI half-res): 2160p 60fps | 1080p 240fps
H.264 (MVC Stereo per view): 2160p 30fps | 1080p 120fps VP9 (Profile 0, 8-bit): 2160p 60fps | 1080p 240fps
VP8: 2160p 60fps | 1080p 240fps
VC-1 (Simple, Main, Advanced): 1080p 120fps | 1080i 240fps MPEG-2 (Main): 2160p 60fps | 1080p 240fps | 1080i 240fps
Video Encode
H.265:2160p 30fps | 1080p 120fps
H.264 (BP/MP/HP): 2160p 30fps | 1080p 120fps
H.264 (MVC Stereo per view): 1440p 30fps | 1080p 60fps VP8: 2160p 30fps | 1080p 120fps
JPEG (Decode and Encode): 600 MP/s
NVIDIA Jetson Nano Module Technical Specifications
| AI Performance | 472 GFLOPS |
| CPU | Quad-core ARM® Cortex®-A57 MPCore processor |
| GPU | NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores 0.5 TFLOPs (FP16) |
| Memory | 4 GB 64-bit LPDDR4 1600MHz - 25.6 GB/s |
| Display | Three multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 a/b |
| Storage | 16 GB eMMC 5.1 Flash |
| Display | HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous |
| Video Encode | 4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265) |
| Video Decode | 4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265) |
| Camera | 12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps) |
| UPHY | 1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0 |
| Networking | 10/100/1000 BASE-T Ethernet |
| Power | 5W | 10W |
| I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs |
| Mechanical | 69.6 mm x 45 mm |
| 260-pin edge connector |
