| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson nano |
| Minimum Order Quantity: | 1PCS |
| Price: | USD130-USD140\PCS |
| Delivery Time: | 15-30 wok days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | 16GB EMMC Nvidia Jetson Nano Module 921MHz 900-13448-0020-000 | Keyword: | 16GB EMMC Nvidia Jetson Nano Module 921MHz 900-13448-0020-000 |
|---|---|---|---|
| Model Number: | NVIDIA Jetson Nano | AI Performance: | 472 GFLOPS |
| CPU: | Quad-core ARM® Cortex®-A57 MPCore Processor | GPU: | NVIDIA Maxwell™ Architecture With 128 NVIDIA CUDA® Cores 0.5 TFLOPs (FP16) |
| Memory: | 4 GB 64-bit LPDDR4 1600MHz - 25.6 GB/s | Storage: | 16 GB EMMC 5.1 Flash |
| UPYH: | HDMI 2.0 Or DP1.2 | EDP 1.4 | DSI (1 X2) 2 Simultaneous | Video Encode: | 4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265) |
| Video Decode: | 4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265) | Power: | 5W | 10W |
| I/O: | 3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs | Mechanical: | 69.6 Mm X 45 Mm |
| High Light: | 16GB Nvidia Jetson Nano,921MHz Nvidia Jetson Nano,900-13448-0020-000 |
||

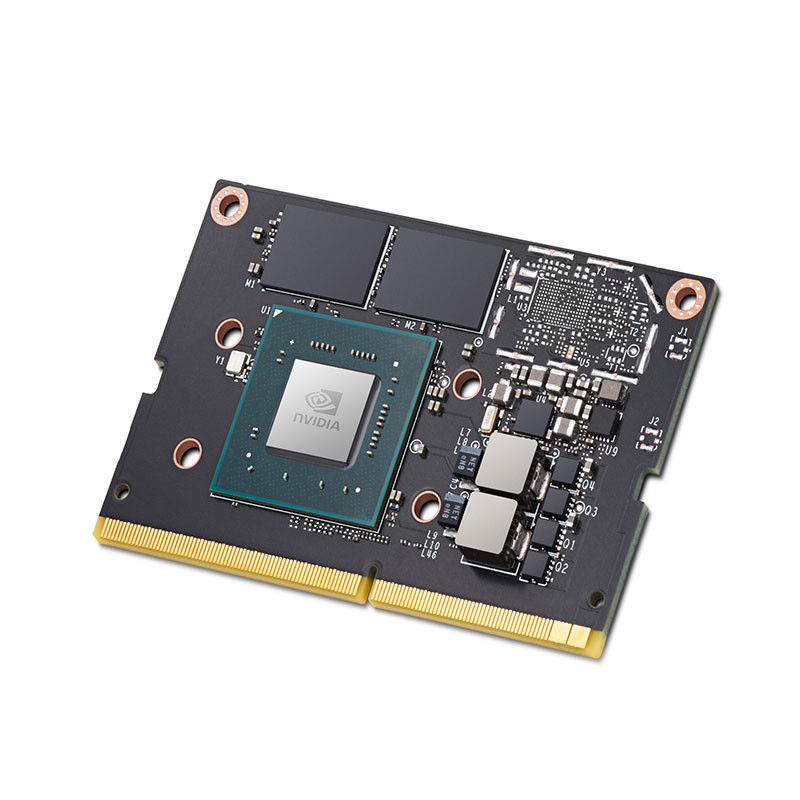

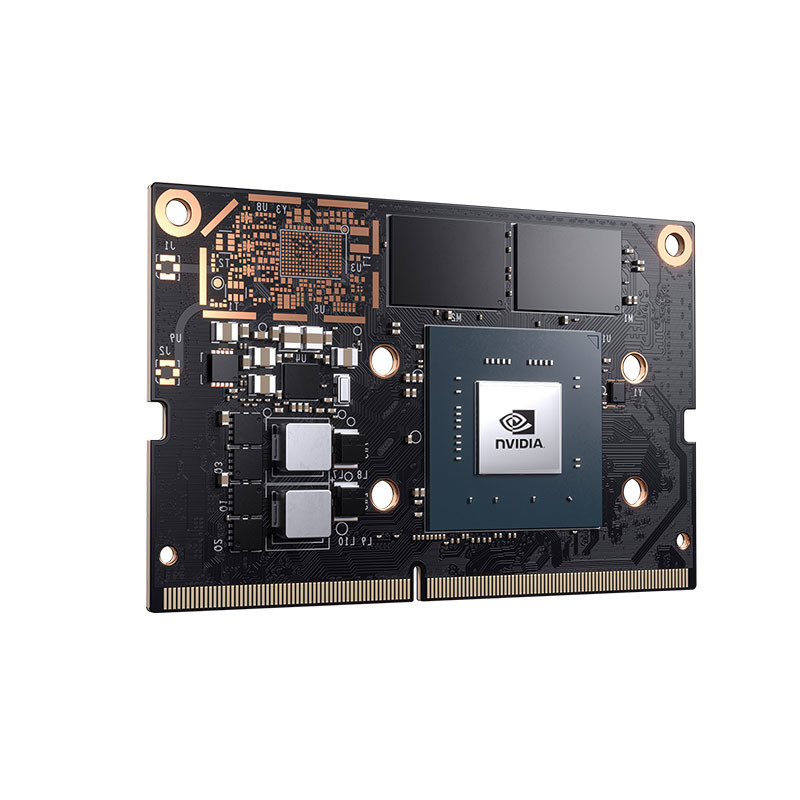

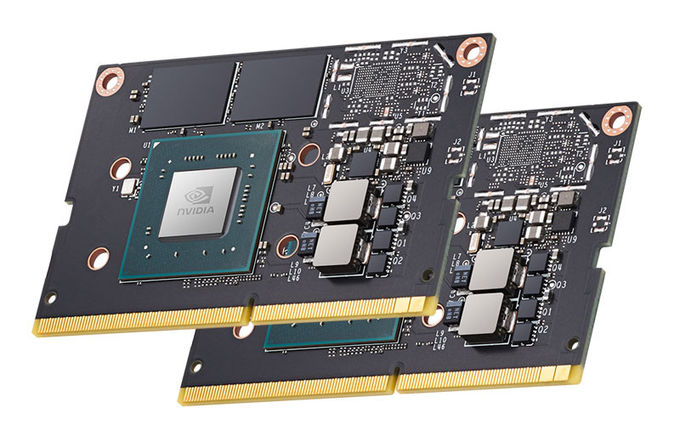

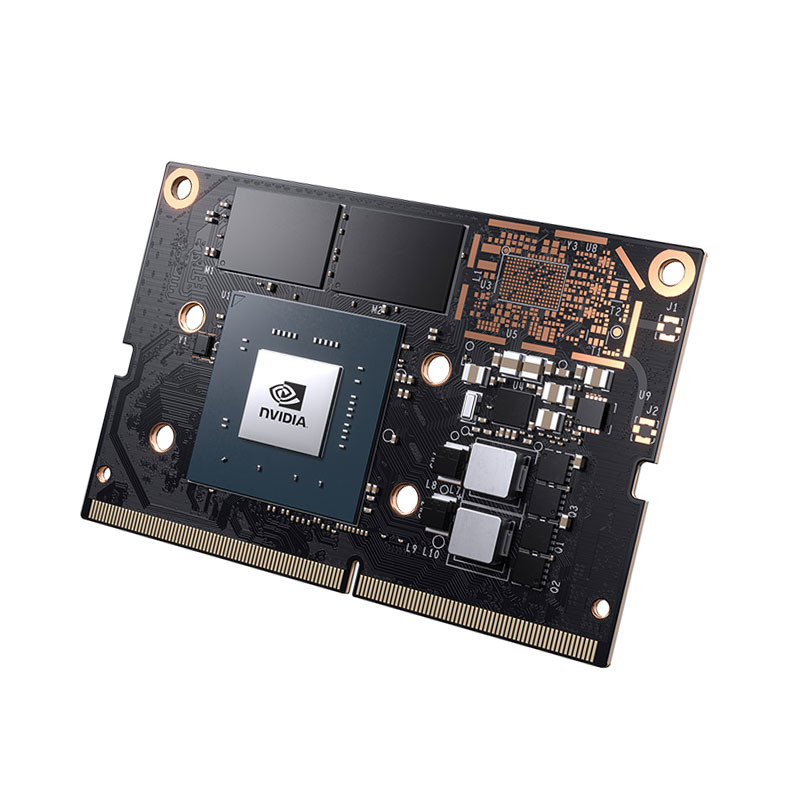

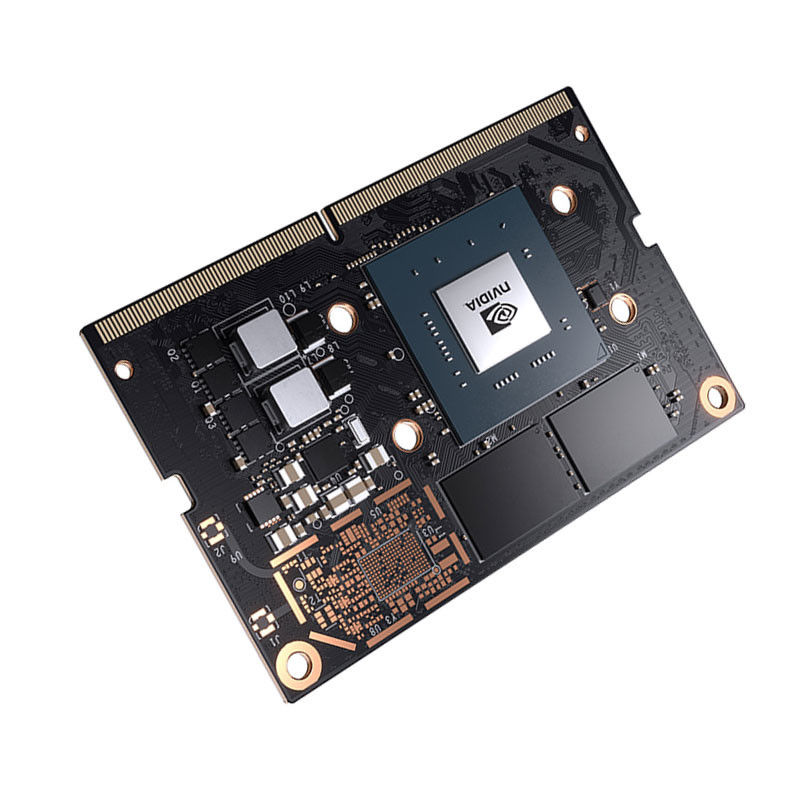

16GB EMMC Nvidia Jetson Nano Module 921MHz 900-13448-0020-000
Deep Learning Board NVIDIA Jetson Nano Module
Maxwell GPU + ARM Cortex-A57 + 4GB LPDDR4 + 16GB eMMC
◊ Maxwell GPU
128-core GPU | End-to-end lossless compression | Tile Caching | OpenGL® 4.6 | OpenGL ES 3.2 | VulkanTM 1.1 | CUDA® | OpenGL ES Shader Performance (up to): 512 GFLOPS (FP16)
Maximum Operating Frequency: 921MHz
◊ CPU
ARM® Cortex® -A57 MPCore (Quad-Core) Processor with NEON Technology | L1 Cache: 48KB L1 instruction cache (I-cache) per core; 32KB L1 data cache (D-cache) per core | L2 Unified Cache: 2MB | Maximum Operating Frequency: 1.43GHz
◊ Memory
Dual Channel | System MMU | Memory Type: 4ch x 16-bit LPDDR4 | Maximum Memory Bus Frequency: 1600MHz | Peak Bandwidth: 25.6 GB/s | Memory Capacity: 4GB
|
AI Performance |
472 GFLOPS |
|
CPU |
Quad-core ARM® Cortex®-A57 MPCore processor |
|
GPU |
NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores |
|
Memory |
4 GB 64-bit LPDDR4 |
|
Storage |
16 GB eMMC 5.1 Flash |
|
Display |
HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous |
|
Video Encode |
4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265) |
|
Video Decode |
4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265) |
|
Camera |
12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps) |
|
Display |
Three multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 a/b |
|
Networking |
10/100/1000 BASE-T Ethernet |
|
UPHY |
1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0 |
|
I/O |
3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs |
|
Power |
5W | 10W |
|
Mechanical |
69.6 mm x 45 mm |
|
260-pin edge connector |
FAQ
1. How can I place order?
A: You can contact us by email about your order details, or place order on line.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. Lead Time: How soon we can get the shipment?
Usually, it's within 7-15 working days after receiving payment.
4. Do you test all your goods before delivery?
Sure, have strict quality inspection department, also send you photos before shipment!
