| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Nano-DEV-02 |
| Minimum Order Quantity: | 1pcs |
| Price: | USD65-USD70\PCS |
| Packaging Details: | 110 mm x 90 mm x 22 mm |
| Delivery Time: | 15-30 wok days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100pcs 30work days |
| NAME: | CSI Jetson Nano Deep Learning Board Single Board Computer For AI HDMI DP 2X MIPI | Keyword: | CSI Jetson Nano Deep Learning Board Single Board Computer For AI HDMI DP 2X MIPI |
|---|---|---|---|
| CPU: | Quad-core ARM A57 @ 1.43 GHz | GPU: | 128-core NVIDIA Maxwell™ |
| Camera: | 2x MIPI CSI-2 DPHY Lanes | Video Encode: | 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
| Video Decode: | 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) | Expand The Storage: | Support M.2 E Key NVME Hard Disk |
| Size: | 100 Mm X 80 Mm X 18 Mm | Working Temperature: | 0-50 |
| High Light: | CSI HDMI deep learning board,2X MIPI deep learning board,HDMI single board computer for ai |
||

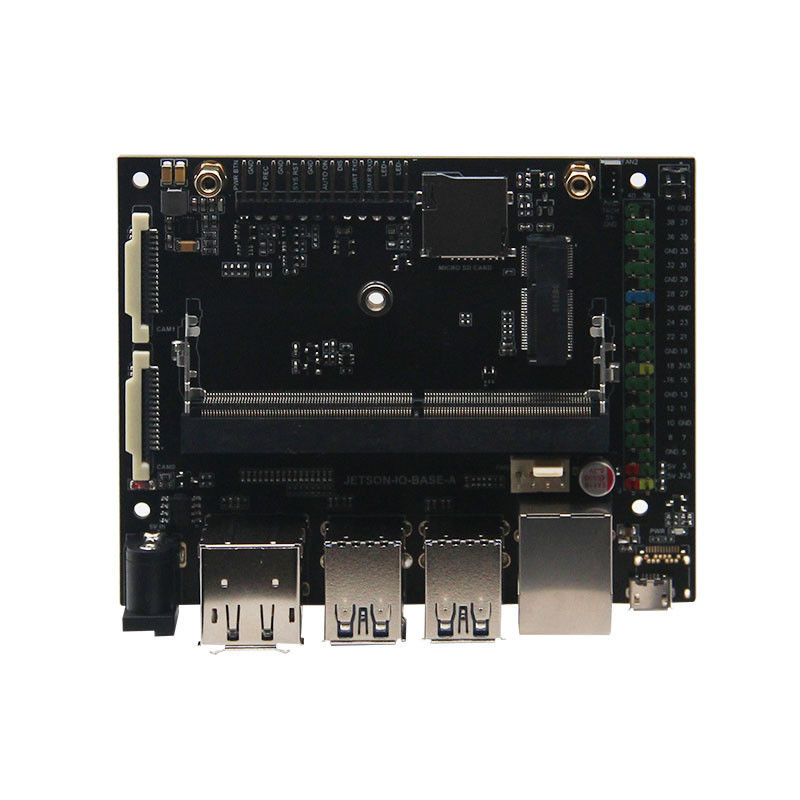

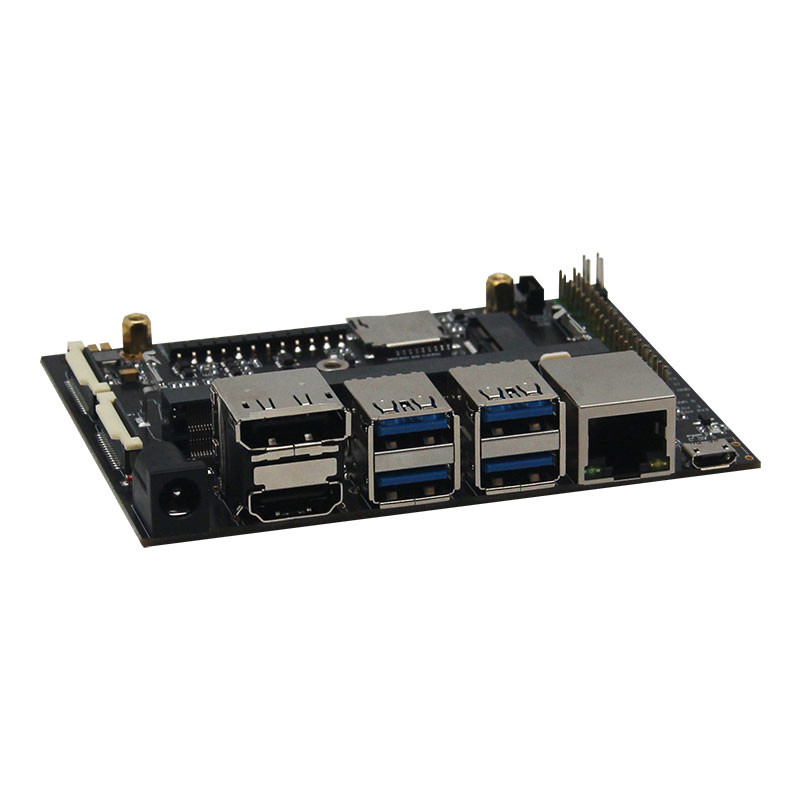

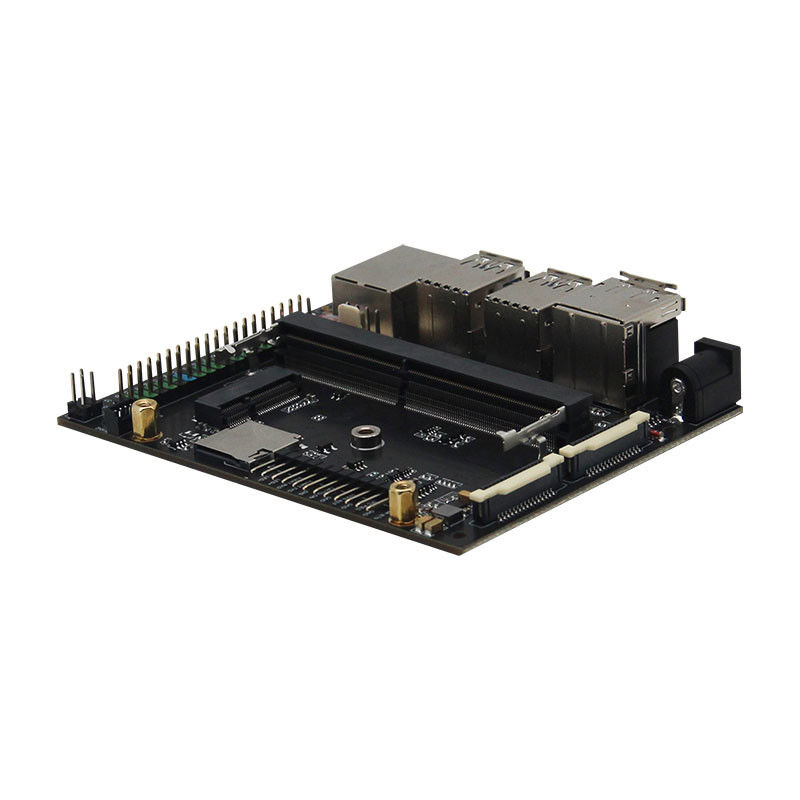

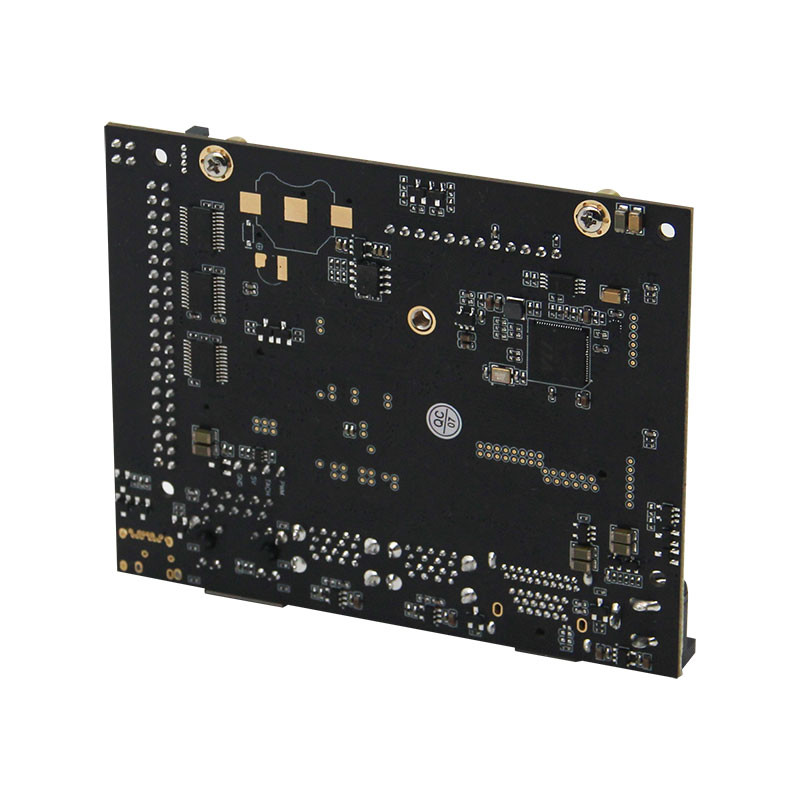

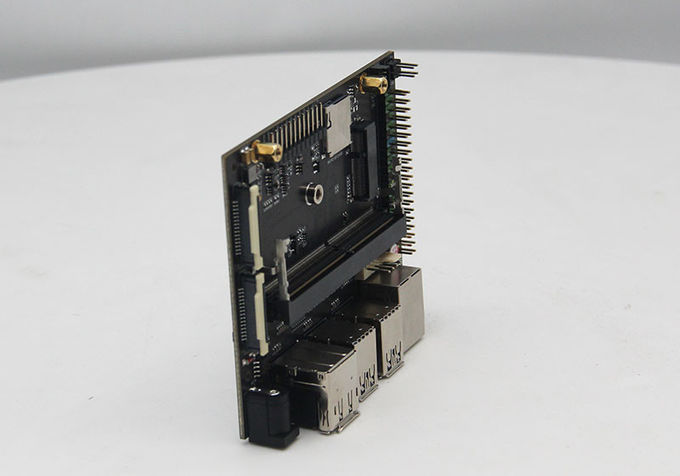

CSI Jetson Nano Deep Learning Board Single Board Computer For AI HDMI DP 2X MIPI
Jetson Nano domestic 4GB Carrier Board
128-core NVIDIA Maxwell™
Quad-core ARM A57 @ 1.43 GHz
4GB 64-bit LPDDR4 25.6GB/s
16GB eMMC 5.1 /microSD
100 mm x 80 mm x 18 mm
The Micro USB port can be used for 5V power input or USB data transfer
Gigabit Ethernet(10/100/1000 BASE-T) connector
|
Memory |
4GB 64-bit LPDDR4 |
|
CPU |
Quad-core ARM A57 @ 1.43 GHz |
|
Expand the storage |
Support M.2 E key NVME hard disk |
|
Storage |
16GB eMMC 5.1 /microSD |
|
Display |
1x HDMI 2.0, 1x DP 1.2 |
|
GPU |
128-core NVIDIA Maxwell™ |
|
Camera |
2x MIPI CSI-2 DPHY lanes |
|
Video Encode |
4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
|
Video Decode |
4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) |
|
USB |
4x USB 3.0 |
|
1x USB 2.0 OTG |
|
|
Other |
FAN Header (GPIO,I2C,I2S,SPI,UART) |
|
Mechanical |
100 mm x 80 mm x 18 mm |
Differences between Jetson Nano domestic and official kits
|
|
NVIDIA Jetson Nano official AI Embedded Board |
Jetson Nano domestic AI Embedded Board |
|
Storage |
Micro SD card |
16GB eMMC 5.1 |
|
M.2 Key |
M.2 Key E(WIFI) |
M.2 Key M |
