| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | AGX Orin Developer kit |
| Minimum Order Quantity: | 1PCS |
| Price: | USD2150-USD2200/PCS |
| Packaging Details: | 100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson AGX Orin Developer Kit 275 TOPS 2048-core GPU 64GB 16-lane MIPI CSI-2 945-13730-0000-000 | Keyword: | NVIDIA Jetson AGX Orin Developer Kit 275 TOPS 2048-core GPU 64GB 16-lane MIPI CSI-2 945-13730-0000-000 |
|---|---|---|---|
| Processor: | NVIDIA Jetson AGX Orin | PN Number: | 945-13730-0000-000 |
| AI Perf: | 275 TOPS | Memory: | 64GB 256-bit LPDDR5 204.8GB/s |
| DLA Max Frequency: | 1.6 GHz | Vision Accelerator: | 1x PVA V2 |
| Safety Cluster Engine: | - | Storage: | 64GB EMMC 5.1 |
| High Light: | 2048 Core NVIDIA AGX Orin Developer Kit,1.6 GHz NVIDIA AGX Orin Developer Kit |
||

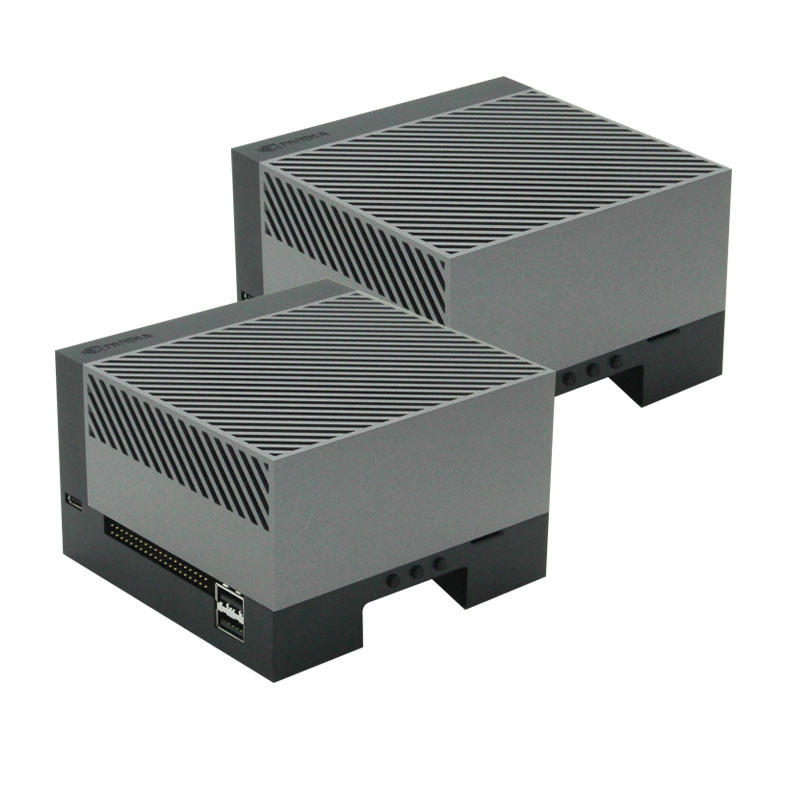

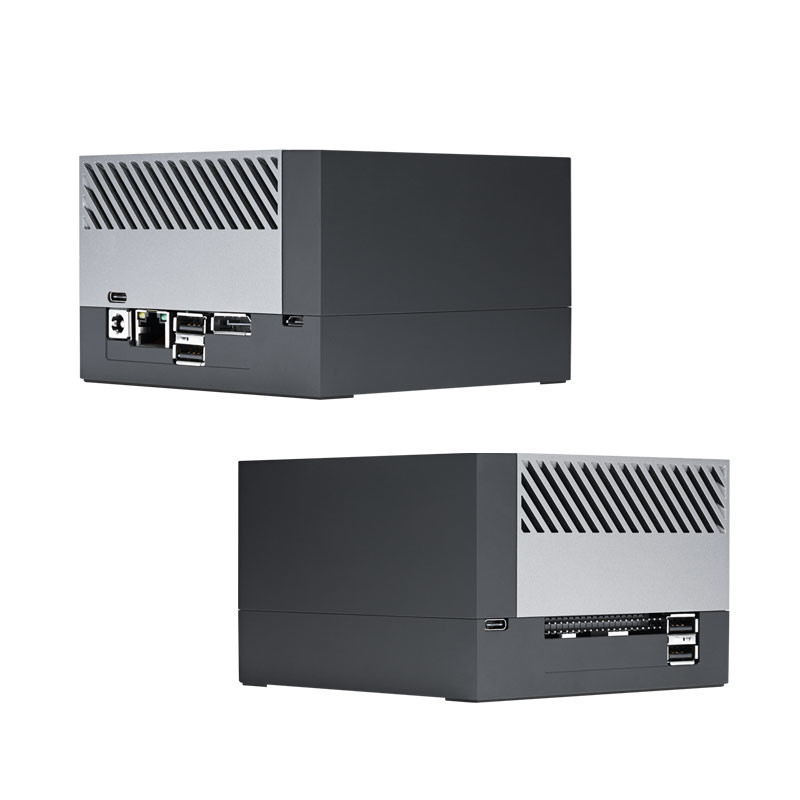

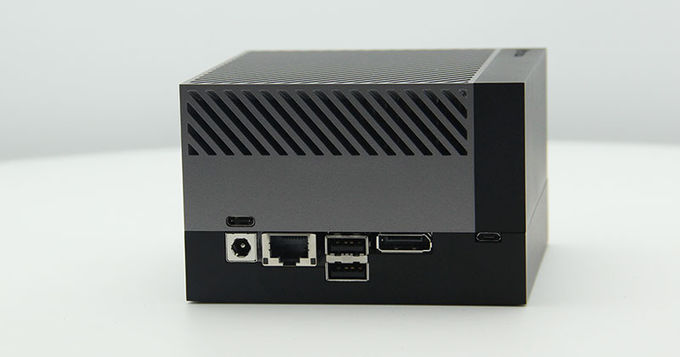

NVIDIA Jetson AGX Orin Developer Kit 275 TOPS 2048-core GPU 64GB 16-lane MIPI CSI-2 945-13730-0000-000
NVIDIA Jetson AGX Orin Developer Kit 64GB 945-13730-0000-000
The NVIDIA® Jetson AGX Orin™ Developer Kit 64G 945-13730-0000-000 has up to 275 TOPS of computing power, which can better bring a more convenient and intelligent experience for autonomous machines, including GPU Max Frequency up to 1.3 GHz.CPU Max Frequency up to 2.2 GHz, including 16-lane MIPI CSI-2 connector, compact shape, size only 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution),and the other I/O:40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO),12-pin automation header,10-pin audio panel header,10-pin JTAG header,4-pin fan header,2-pin RTC batter backup connector,microSD slot,DC power jack,Power, Force Recovery, and Reset buttons.
NVIDIA Jetson AGX Orin 64G Developer Kit 945-13730-0000-000
| AI Performance | 275 TOPS |
| GPU | 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores |
| CPU | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Memory | 64GB 256-bit LPDDR5 204.8GB/s |
| Storage | 64GB eMMC 5.1 |
| Networking | RJ45 connector with up to 10 GbE |
| PCIe | x16 PCIe slot supporting x8 PCIe Gen4 M.2 Key M slot with x4 PCIe Gen4 M.2 Key E slot with x1 PCIe Gen4 |
| Camera | 16-lane MIPI CSI-2 connector |
| Power | 15W - 60W |
| USB | USB Type-C connector: 2x USB 3.2 Gen2 USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 USB Micro-B connector: USB 2.0 |
| DLA Max Frequency | 1.6 GHz |
| Display | 1x DisplayPort 1.4a (+MST) connector |
