| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Jetson AGX Orin Nano 8G module |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Packaging Details: | 69.6mm x 45mm 260-pin SO-DIMM connector |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| NAME: | Face Recognition Nvidia AGX Orin Nano Jetson Module 8GB Edge AI Computing | Keyword: | Face Recognition Nvidia AGX Orin Nano Jetson Module 8GB Edge AI Computing |
|---|---|---|---|
| AI Performance: | 40 TOPs | GPU: | 1024-core NVIDIA Ampere Architecture GPU With 32 Tensor Cores |
| GPU Max Frequency: | 625 MHz | CPU: | 6-core Arm® Cortex®-A78AE V8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| CPU Max Frequency: | 1.5 GHz | Memory: | 8GB 128-bit LPDDR5 68 GB/s |
| Power: | 3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 | Video Encode: | 1080p30 Supported By 1-2 CPU Cores |
| Video Decode: | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | Mechanical: | 69.6mm X 45mm 260-pin SO-DIMM Connector |
| High Light: | Nvidia AGX Orin Module,8GB Nvidia AGX Orin,8GB jetson module |
||
Face Recognition Nvidia AGX Orin Nano Jetson Module 8GB Edge AI Computing
NVIDIA Orin Module

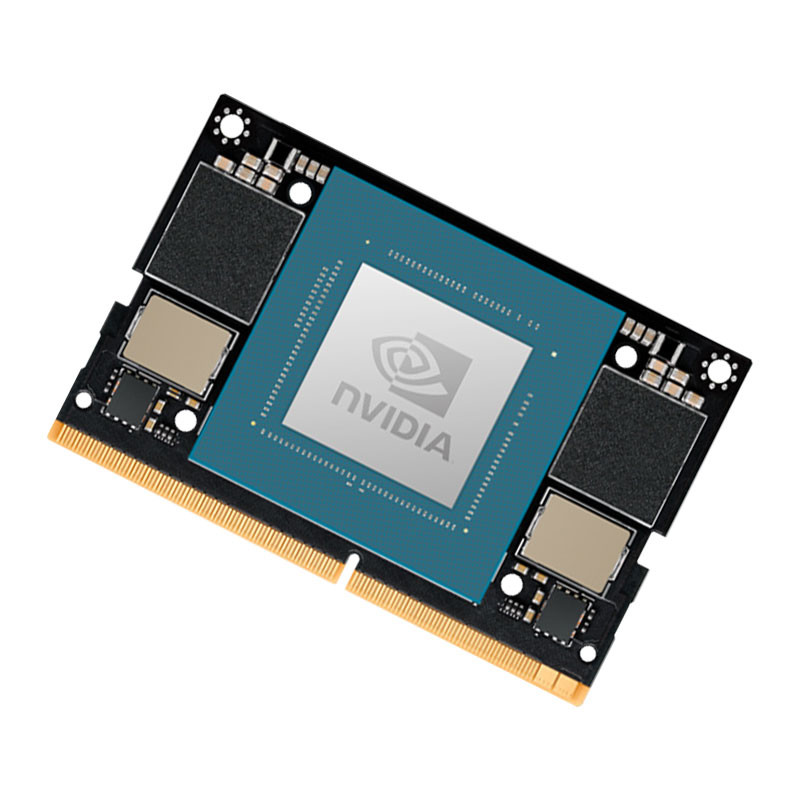

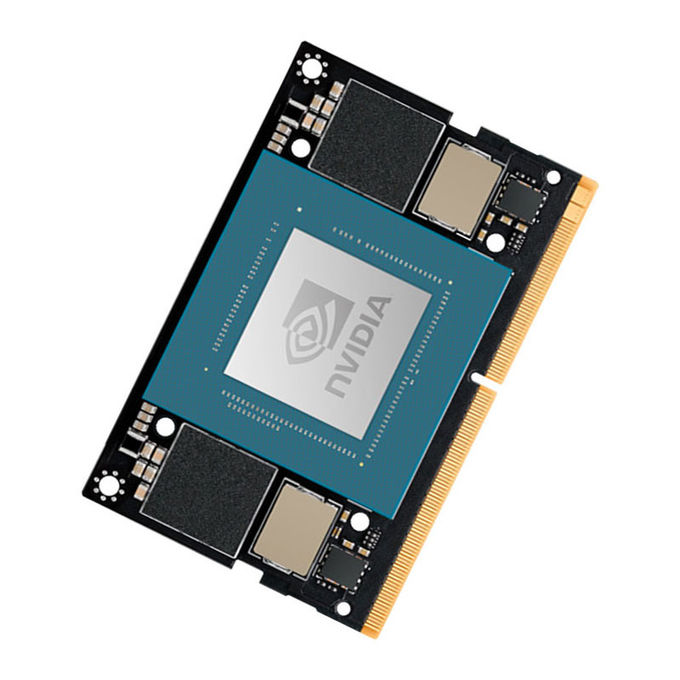

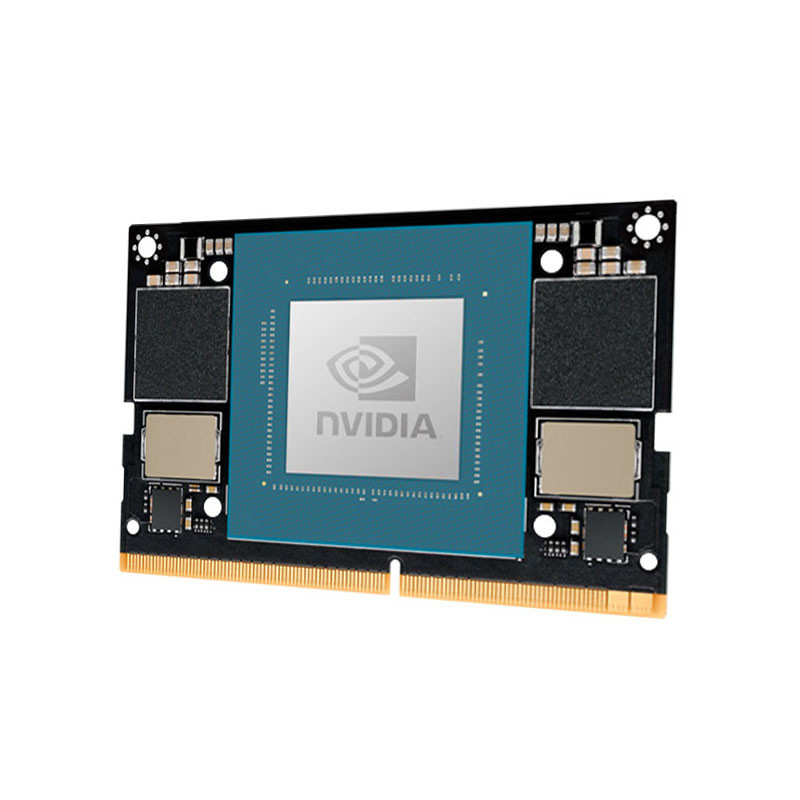

Jetson AGX Orin Nano 8GB Module
Ampere GPU + ARM Cortex-A78AE CPU + 8GB LPDDR5 Up to 40 (Sparse) INT8 TOPs and 20 (Dense) INT8 TOPs
NVIDIA Jetson Orin Nano provides three independent column address bits to each sub-partition, allowing it access different 32-byte sectors of a GOB between the sub-partitions. It provides connections between a wide variety of clients, supporting their bandwidth, latency, quality-of-service needs, and any special ordering requirements that are needed. The MSS supports a variety of security and safety features and address translation for clients that use virtual addresses.
Features:
8GB 128-bit LPDDR5
Low latency path and fast read/response path support for the CPU complex cluster
Support for low-power modes:
Software controllable entry/exit from self-refresh, power down, and deep power down o Hardware dynamic entry/exit from power down, self-refresh
Pads use DPD mode during idle periods
High-bandwidth interface to the integrated Ampere GPU
Full-speed I/O coherence with bypass for Isochronous (ISO) traffic
System Memory-Management Unit (SMMU) for address translation based on the ARM SMMU-500
High-bandwidth PCIe ordered writes
AES-XTS encryption with 128-bit key
| AI Performance | 40 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| GPU Max Frequency | 625 MHz |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| CPU Max Frequency | 1.5 GHz |
| Memory | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | - (Supports external NVMe) |
| Video Encode | 1080p30 supported by 1-2 CPU cores |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| PCIe | 1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint) |
| USB | 3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
| Networking | 1x GbE |
| Power | 7W - 15W |
| Display | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| Other I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
