| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | ORIN64-8F3E1 |
| Minimum Order Quantity: | 1SET |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| NAME: | 64G PCIe Nvidia Agx Orin Embedded IPC Computer For Smart Cities Retail Warehouse | Keyword: | 64G PCIe Nvidia Agx Orin Embedded IPC Computer For Smart Cities Retail Warehouse |
|---|---|---|---|
| Color: | Black | CPU: | 12-core Arm® Cortex®-A78AE V8.2 64-bit CPU 3MB L2 + 6MB L3 |
| GPU: | 2048-core NVIDIA Ampere GPU With 64 Tensor Cores | AI Performance: | 275 TOPS |
| Memory: | 64GB 256-bit LPDDR5 204.8 GB/s | Storage: | 64GB EMMC 5.1 |
| GPIO: | 4 | RS 232: | 2 |
| I2C: | 2 | Debug(UART): | 1 |
| SPI: | 1 | Temperature: | -20~+65°C |
| Size: | 198 Mm × 197 Mm × 45 Mm | Weight: | 1340g |
| High Light: | PCIe Nvidia AGX Orin,Nvidia AGX Orin Computer,Orin embedded ipc |
||

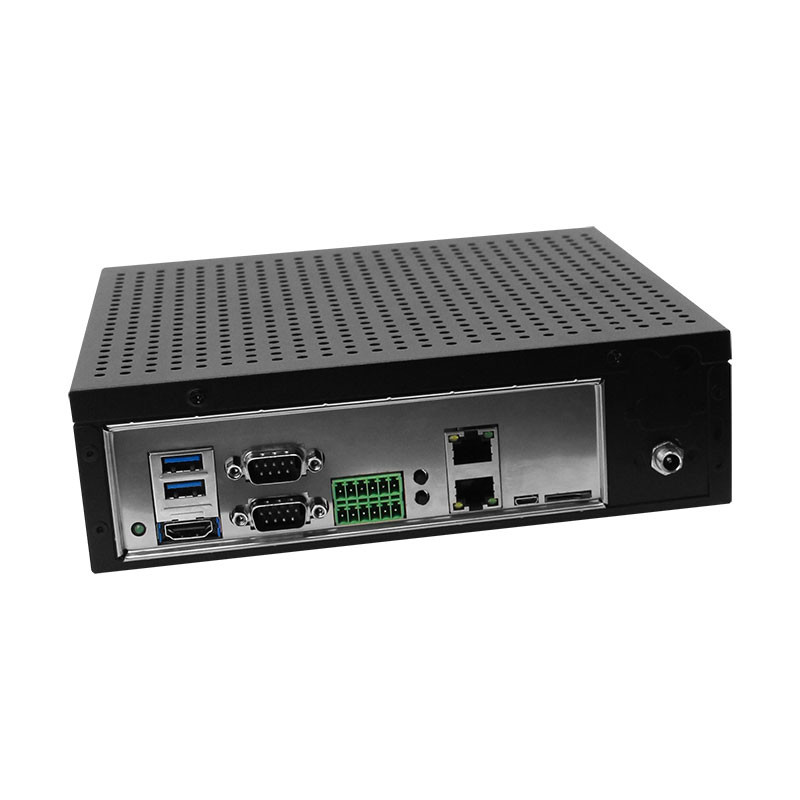

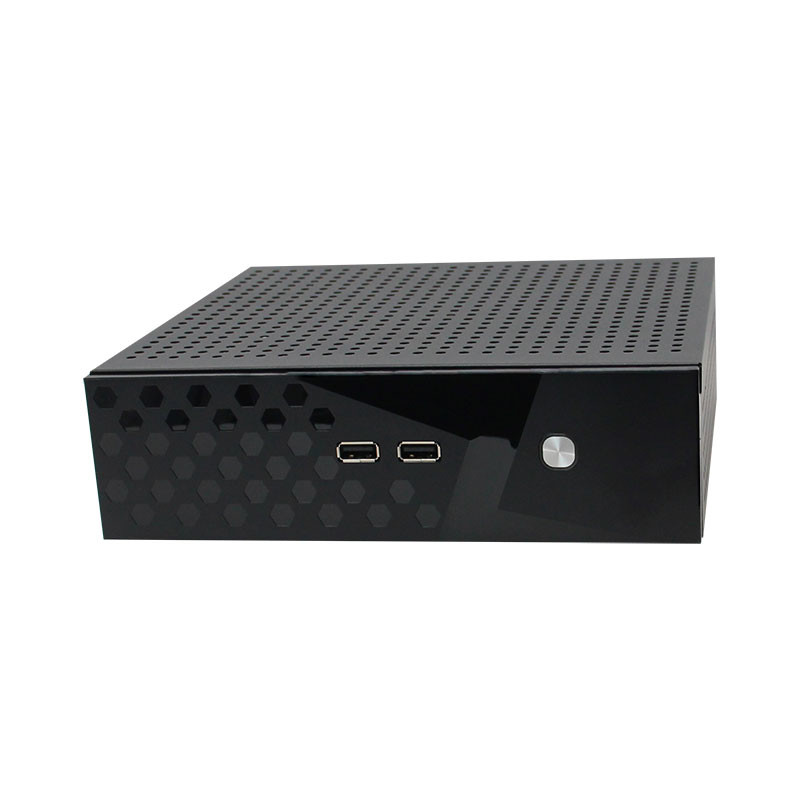

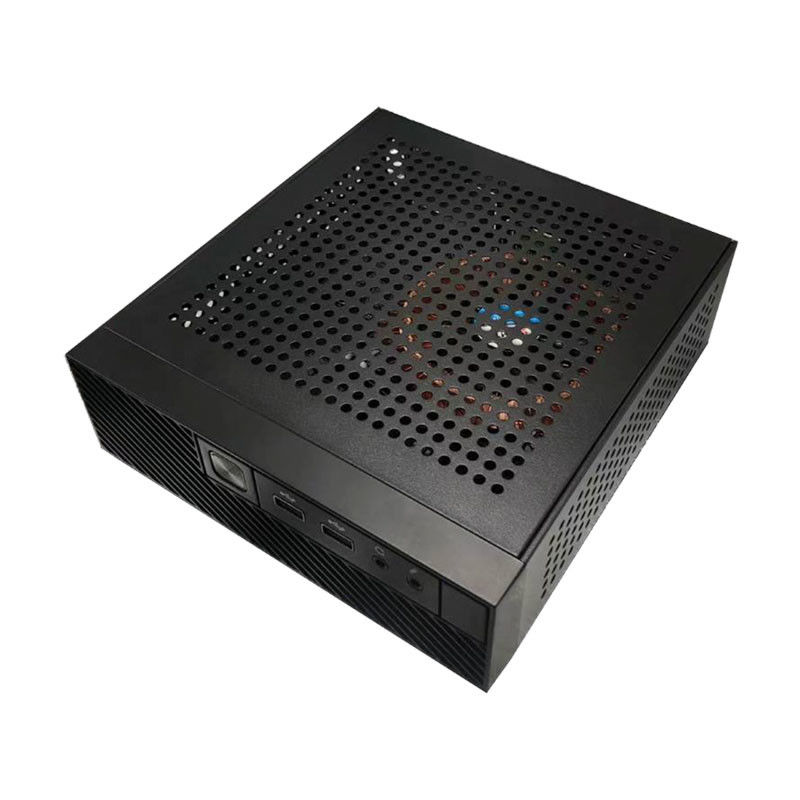

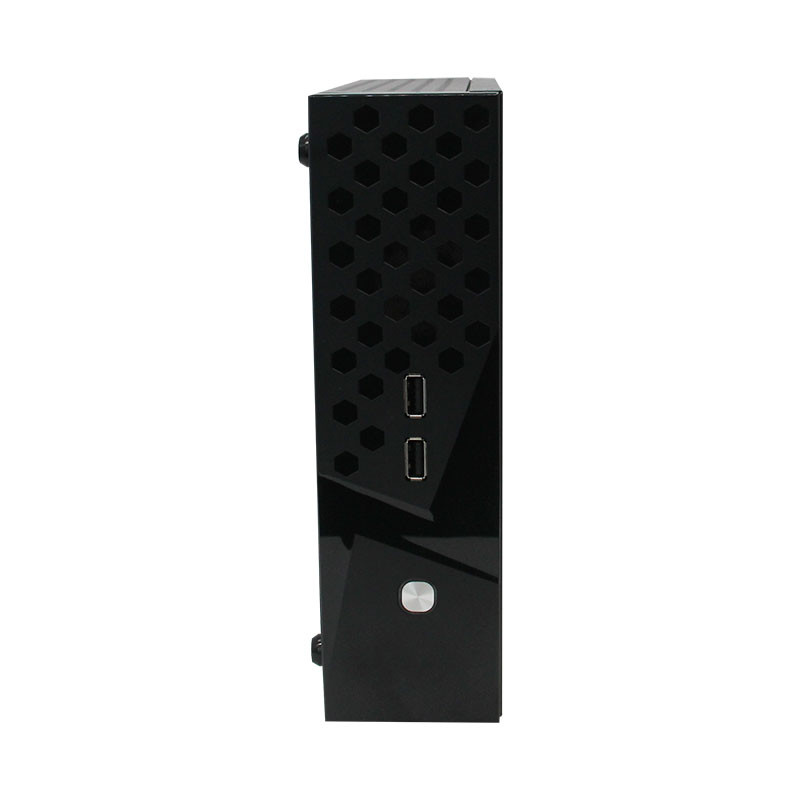

64G PCIe Nvidia Agx Orin Embedded IPC Computer For Smart Cities Retail Warehouse
2U Rackmount Computer
GPU Module (ORIN64-8F3E1)
NVIDIA AGX Orin Module 64G Embedded Computer
Arm Cortex-A78AE CPU + LPDDR5 + Ampere GPU + 64GB eMMC5.1
For logistics, construction, agriculture, V2X etc,.
Go to the Edge with PLINK-AI
Get a full introduction to edge computing from the leader in AI.
Create a Faster, Smarter, More Connected World
Billions of IoT sensors—in retail stores, on city streets, on warehouse floors, in hospitals—are generating massive amounts of data. Tapping into faster insights from that data can mean improved services, streamlined operations, and even saved lives. But to do this, enterprises need to drive decisions in real time, and that means taking their AI compute to where the data is, the network’s edge.
NVIDIA Jetson AGX Orin Technical Specification
|
Module |
NVIDIA Jetson AGX Orin 64G |
|
AI Performance |
275 TOPS |
|
GPU |
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores |
|
CPU |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
|
Memory |
64GB 256-bit LPDDR5 |
|
Storage |
64GB eMMC 5.1 |
|
PCIe |
Up to 2 x8 + 1 x4 + 2 x1 |
|
Other I/O |
4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC & DSPK, GPIOs |
|
Display |
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
|
USB Micro-B |
1 |
|
USB Type-A |
2 |
|
Other I/O |
4 x GPIO |
|
Networking |
2 x 10/100/1000 Ethernet/RJ45 |
|
Power Supply |
DC + 12V |
|
Temperature |
-20~+65°C |
|
Dimensions |
198 mm × 197 mm × 45 mm |
|
Weight |
1340g |
