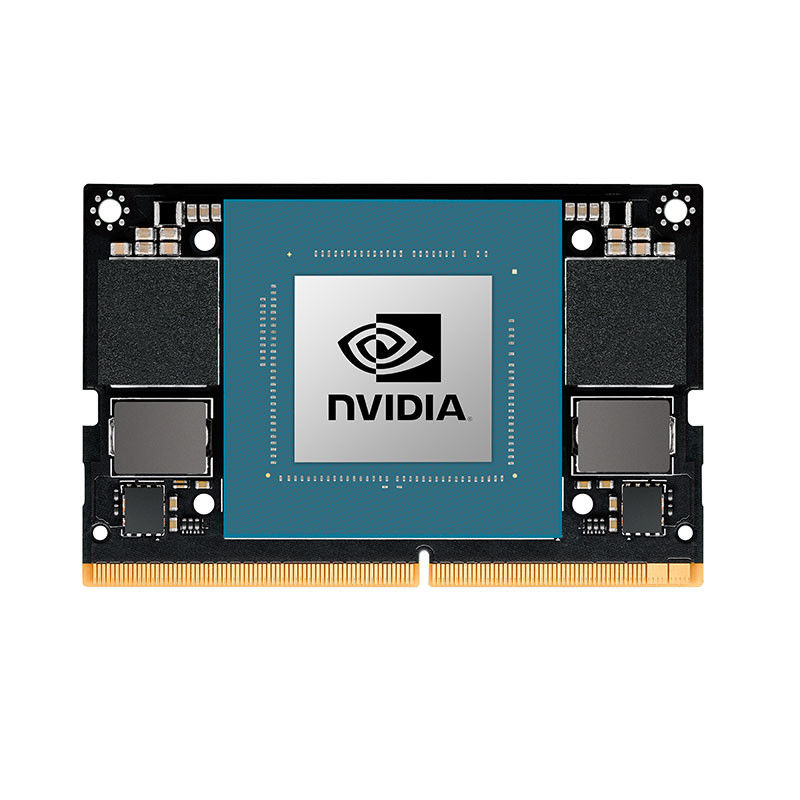

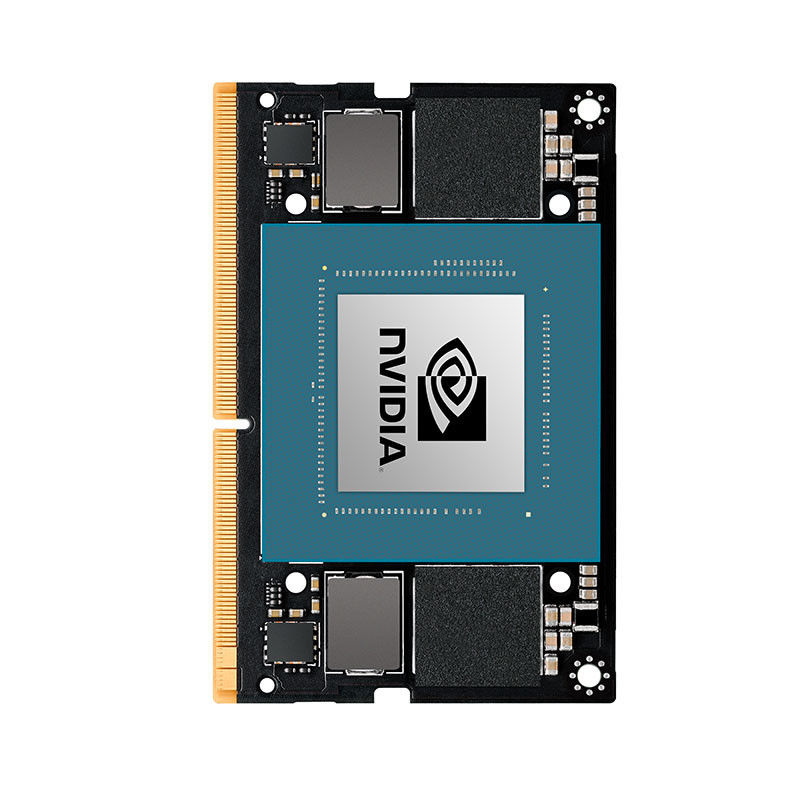

100 TOPS Embedded Nvidia Ai Module Jetson Orin NX Module 16GB

Basic Information
Place of Origin: USA
Brand Name: NVIDIA
Model Number: Jetson orin NX 16G module
Minimum Order Quantity: 1PCS
Price: To be discussed
Packaging Details: 69.6mm x 45mm 260-pin SO-DIMM connector
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
NAME: 100 TOPS Embedded Nvidia Ai Module Jetson Orin NX Module 16GB Keyword: 100 TOPS Embedded Nvidia Ai Module Jetson Orin NX Module 16GB
AI Performance: 100 TOPS GPU: 1024-core NVIDIA Ampere Architecture GPU With 32 Tensor Cores
CPU: 8-core Arm® Cortex®-A78AE V8.2 64-bit CPU 2MB L2 + 4MB L3 Memory: 16GB 128-bit LPDDR5 102.4GB/s
PCIe: 1 X4 + 3 X1 (PCIe Gen4, Root Port, & Endpoint) USB: 3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0
Display: 1x 8K30 Multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 Other I/O: 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
Power: 10W - 25W Mechanical: 69.6mm X 45mm 260-pin SO-DIMM Connector
High Light:

16GB nvidia ai module

,

Embedded nvidia ai module

,

16GB jetson nx module


Product Description


100 TOPS Embedded Nvidia Ai Module Jetson Orin NX Module 16GB


NVIDIA Jetson AGX Orin NX 16GB Module

NVIDIA Jetson Orin NX modules deliver up to 100 TOPS of AI performance in the smallest Jetson form factor, with power configurable between 10W and 25W. This gives you up to 3X the performance of Jetson AGX Xavier and up to 5X the performance of Jetson Xavier NX.

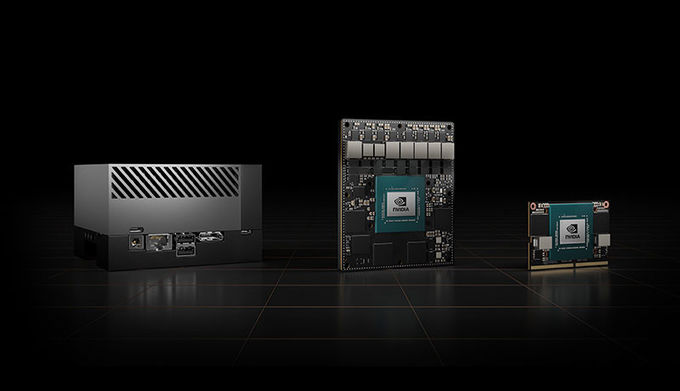

100 TOPS Embedded Nvidia Ai Module Jetson Orin NX Module 16GB 0


AI is Now Everywhere

As businesses across industries grapple with vast amounts of data, more complex operations, and more dynamic markets, edge AI is playing a growing role in helping them rapidly respond. Through a combination of computing power, AI technology, data analytics, and advanced connectivity, the edge extends compute capabilities from data centers out to the edge of networks, allowing organizations to act quickly on data where it’s captured. Reducing the distance between where data is captured and where it’s processed not only alleviates data transit costs, but also improves latency, bandwidth utilization, and infrastructure costs.


NVIDIA Jetson AGX Orin NX 16GB Module Technical Specifications

Brand

NVIDIA

Module

NVIDIA Jetson AGX Orin NX 16GB

AI Performance

100 TOPS

GPU

1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

GPU Max Frequency

918 MHz

CPU

8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3

CPU Max Frequency

2 GHz

DLA Max Frequency

614 MHz

DL Accelerator

2x NVDLA v2

Vision Accelerator

1x PVA v2

Safety Cluster Engine

-

Memory

16GB 128-bit LPDDR5
102.4GB/s

Storage

-
(Supports external NVMe)

Camera

Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)

Video Encode

1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)

Video Decode

1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)

PCIe

1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint)

USB

3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0

Networking

1x GbE

Power

10W - 25W

Display

1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1

Other I/O

3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs

Mechanical

69.6mm x 45mm
260-pin SO-DIMM connector













































Addressing the Requirements of Edge AI

AI at the edge comes with a unique set of requirements. Edge systems, dispersed across vast physical distances, lack the centrality that a data center presents. Software or system updates either need to be performed manually or to be centrally managed to easily deploy, manage, and scale software across vast fleets of devices. Moreover, the security requirements for edge computing infrastructure differ from cloud or data center computing models. Edge locations lack the physical security that data centers have, so an end-to-end security model that protects both the application intellectual property and the sensor data is paramount for a successful deployment.
