| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | AGX Orin Industrial module |
| Minimum Order Quantity: | 1pcs |
| Price: | To be discussed |
| Delivery Time: | To be discussed |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |
| NAME: | 900-13701-0080-000 Jetson AGX Orin Industrial Module 248 TOPs 64GB 16 Lanes MIPI CSI-2 | Keyword: | 900-13701-0080-000 Jetson AGX Orin Industrial Module 248 TOPs 64GB 16 Lanes MIPI CSI-2 |
|---|---|---|---|
| AI Performance: | 248 TOPS | Module Number: | AGX ORIN Industrial (900-13701-0080-000) |
| Power: | 15W-75W | Memory: | 64GB 256-bit LPDDR5 (+ ECC) 204.8GB/s |
| Storage: | 64GB EMMC 5.1 | Mechanical Shock: | Non-Operational: 140G, 2 Ms Operational 50G, 11 Ms |
| Temperature: | -40°C - 85°C At TTP Surface | Vibration: | Non-Operational: 3G Operational: 5G |
| High Light: | 900-13701-0080-000 Jetson AGX Orin Developer Kit,248 TOPs Jetson AGX Orin Developer Kit |
||
900-13701-0080-000 Jetson AGX Orin Industrial Module 248 TOPs 64GB 16 lanes MIPI CSI-2

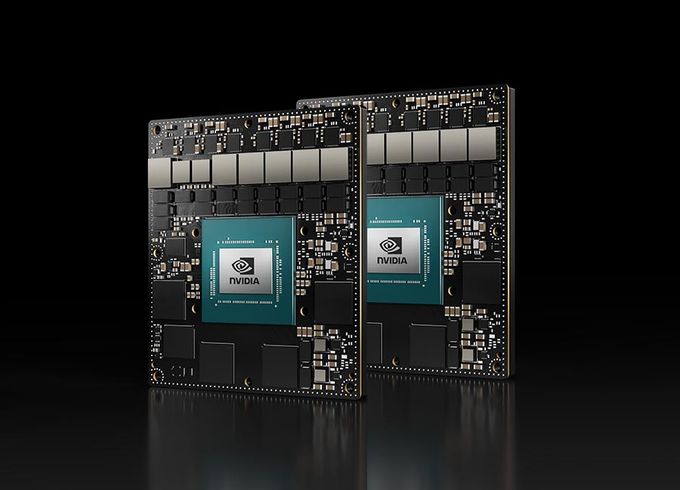

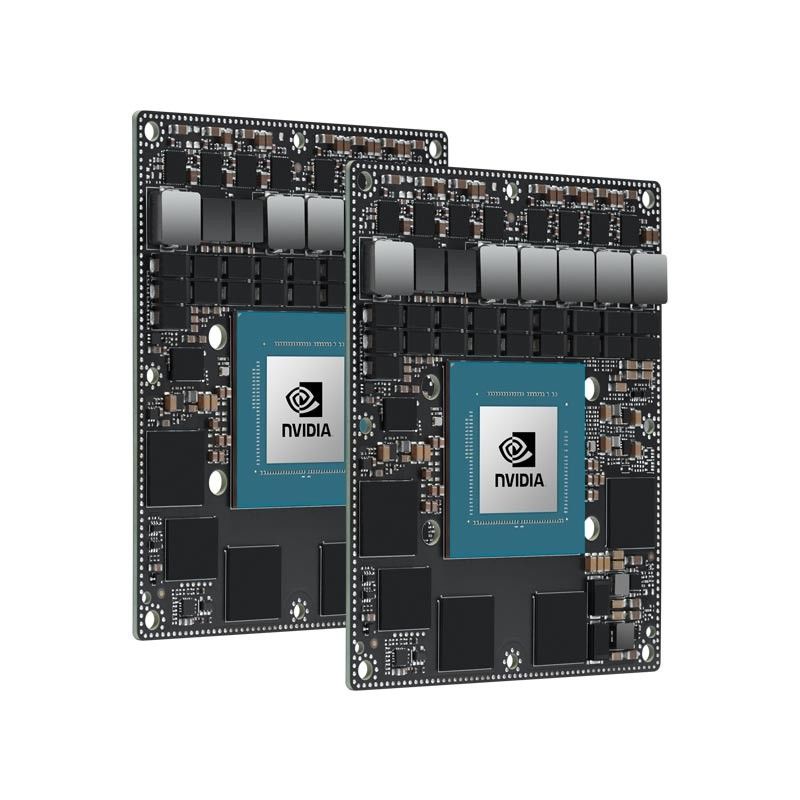

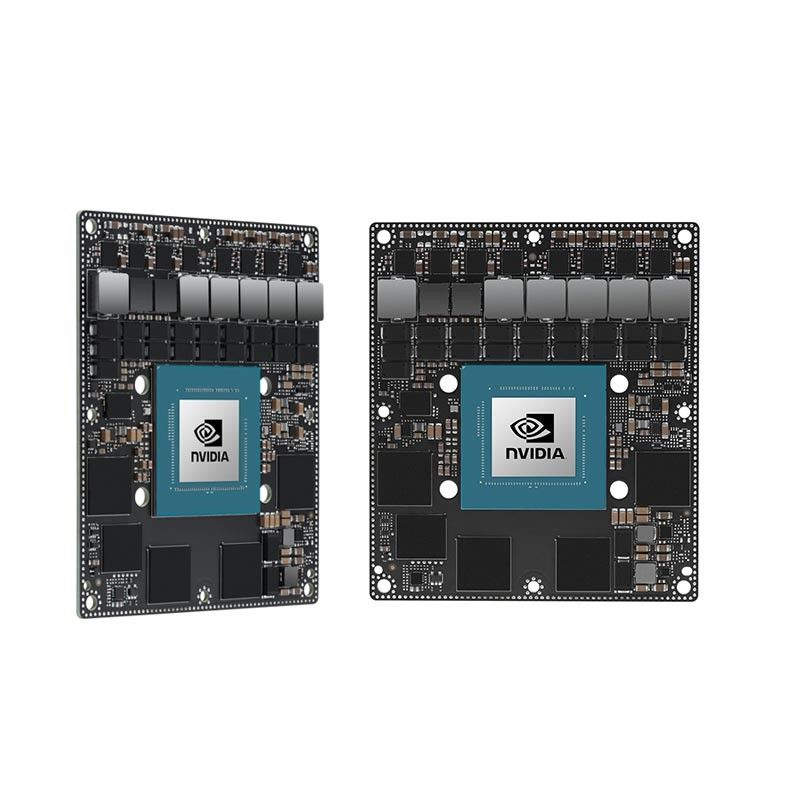

NVIDIA Jetson AGX Orin Industrial Module 900-13701-0080-000
The Future of Industrial-Grade Edge AI,The NVIDIA® Jetson AGX Orin™ Industrial module delivers up to 248 TOPs of AI Performance for embedded industrial applications with power configurable between 15W and 75W. It’s form-factor and pin-compatible with Jetson AGX Orin, and gives you more than 8X the performance of Jetson AGX Xavier Industrial. 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3,100mm x 87mm,699-pin Molex Mirror Mezz Connector,Integrated Thermal Transfer Plate
NVIDIA Jetson AGX Orin industrial Module 900-13701-0080-000 Technical Specifications
| AI Perf | 248 TOPs |
| GPU | 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores |
| GPU Max Frequency | 1.2 GHz |
| CPU | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| CPU Max Frequency | 2.0 GHz |
| Memory | 64GB 256-bit LPDDR5 (+ ECC) 204.8GB/s |
| Storage | 64GB eMMC 5.1 |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 7x 1080p60 (H.265) 15x 1080p30 (H.265) |
| Video Decode | 1x 8K30 (H.265) 3x 4K60 (H.265) 7x 4K30 (H.265) 11x 1080p60 (H.265) 23x 1080p30 (H.265) |
| CSI Camera | Up to 6 cameras (16 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps) |
| Power | 15W-75W |
| Mechanical | 100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate |
Jetson AGX Orin Industrial and Commercial Features
| Jetson AGX Orin Commercial | Jetson AGX Orin Industrial | |
| Mechanical Shock | Non-Operational: 140G, 2 ms | Non-Operational: 140G, 2 ms Operational 50G, 11 ms |
| Vibration | Non-Operational: 3G | Non-Operational: 3G Operational: 5G |
| Temperature | -25°C - 80°C at TTP Surface | -40°C - 85°C at TTP Surface |
| Humidity | 85°C, 85% RH, 168 hours | 85°C / 85% RH, 1000 hours, Power ON |
| Temperature Endurance | -20°C, 24 hours 45°C, 168 hours (operational) |
-40°C, 72 hours 85°C, 1000 hours (operational) |
