| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | ORIN32-8F3E1 |
| Minimum Order Quantity: | 1SET |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| NAME: | Industrial Nvidia AGX Orin Module 32GB AI Small Embedded PC For Energy Efficient Autonomous Machine | Keyword: | Industrial Nvidia AGX Orin Module 32GB AI Small Embedded PC For Energy Efficient Autonomous Machine |
|---|---|---|---|
| CPU: | 8-core Arm® Cortex®-A78AE V8.2 64-bit CPU 2MB L2 + 4MB L3 | GPU: | 1792-core NVIDIA Ampere Architecture GPU With 56 Tensor Cores |
| Memory: | 32GB 256-bit LPDDR5 204.8GB/s | Storage: | 64GB EMMC 5.1 |
| Color: | Black | DL Accelerator: | 2x NVDLA V2 |
| Temperature: | -20~+65°C | Power: | AC 220V |
| Size: | 430mm × 360mm ×88mm | Weight: | 6050g |
| High Light: | Industrial Nvidia AGX Orin,Nvidia AGX Orin PC,Nvidia small embedded pc |
||
NVIDIA Jetson Module AGX Orin 32G
Maximum Operating Frequency: 1.4 GHz | 46 TOPs each (Sparse INT8)
2 GPC | 7 TPC | | 1792 NVIDIA® CUDA® cores | 56 Tensor cores Ray-Tracing cores | 108 Sparse TOPS Maximum Operating Frequency: 939 MHz
Up to 200 Sparse TOPs (INT8)
AI is driving competitive advantage—from automating business processes and gaining insight through data analysis, to engaging with customers and employees.
NVIDIA® Jetson™ is the world's leading platform for autonomous machines and other embedded applications. It includes Jetson modules, which are small form-factor, high-performance computers, the NVIDIA JetPack™ SDK for accelerating software, and an ecosystem with sensors, SDKs, services, and products to speed up development. Jetson is compatible with the same AI software and cloud-native workflows used across other NVIDIA platforms and delivers the power-efficient performance customers need to build software-defined autonomous machines.
Advanced Functional Safety and Security for Edge AI Accelerate the deployment of intelligent embedded computer with PLINK-AI, an industrial-grade edge AI platform that delivers high performance, advanced functional safety, and security.

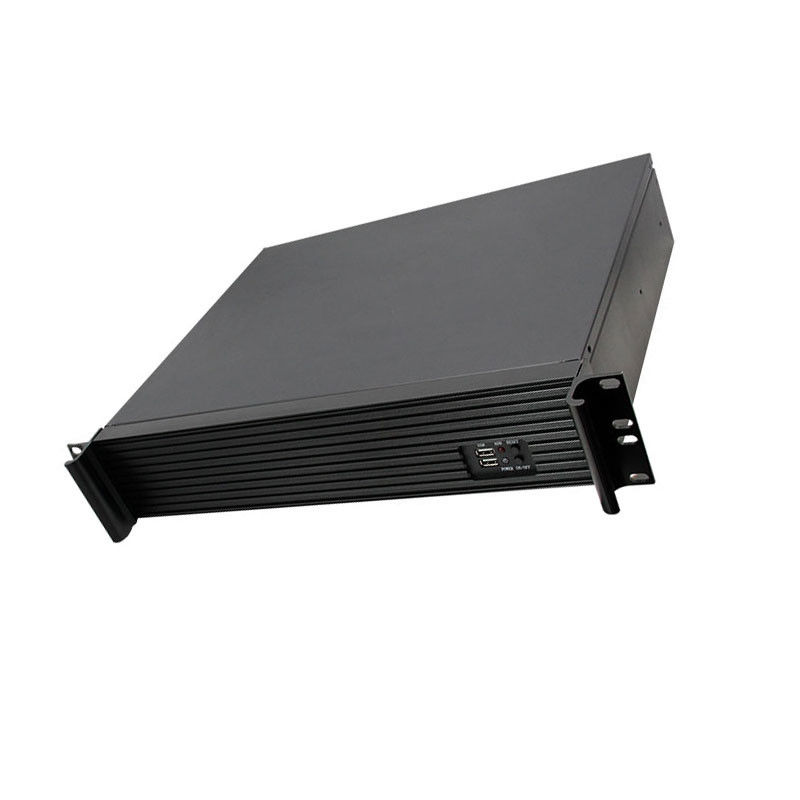

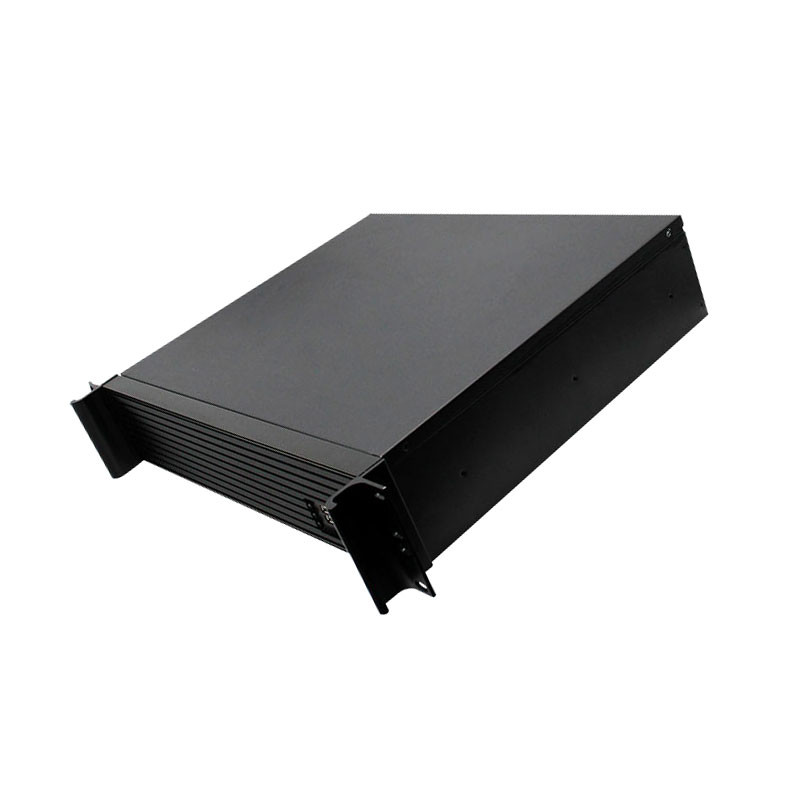

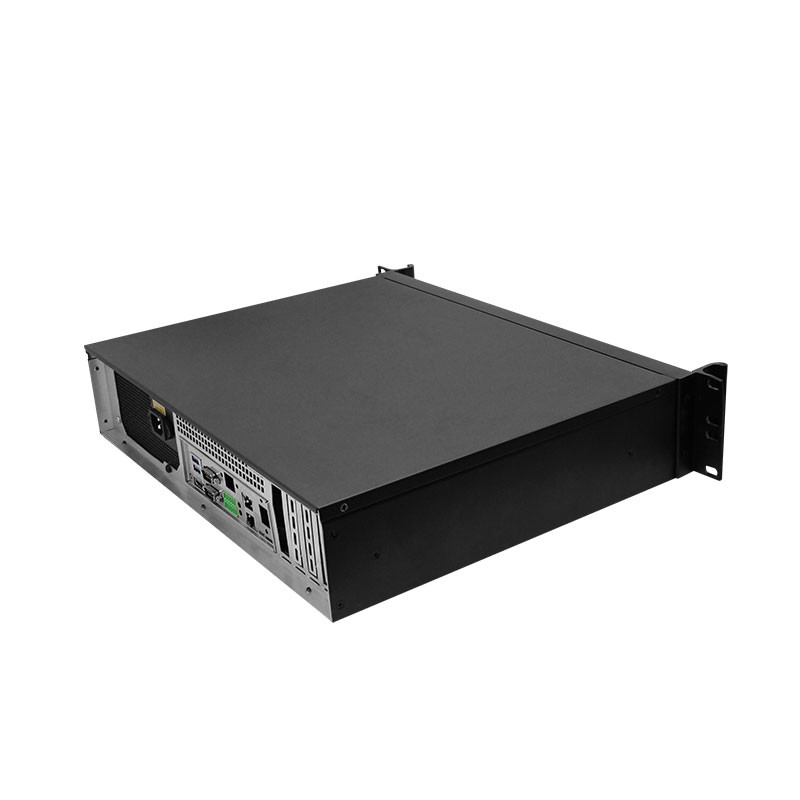

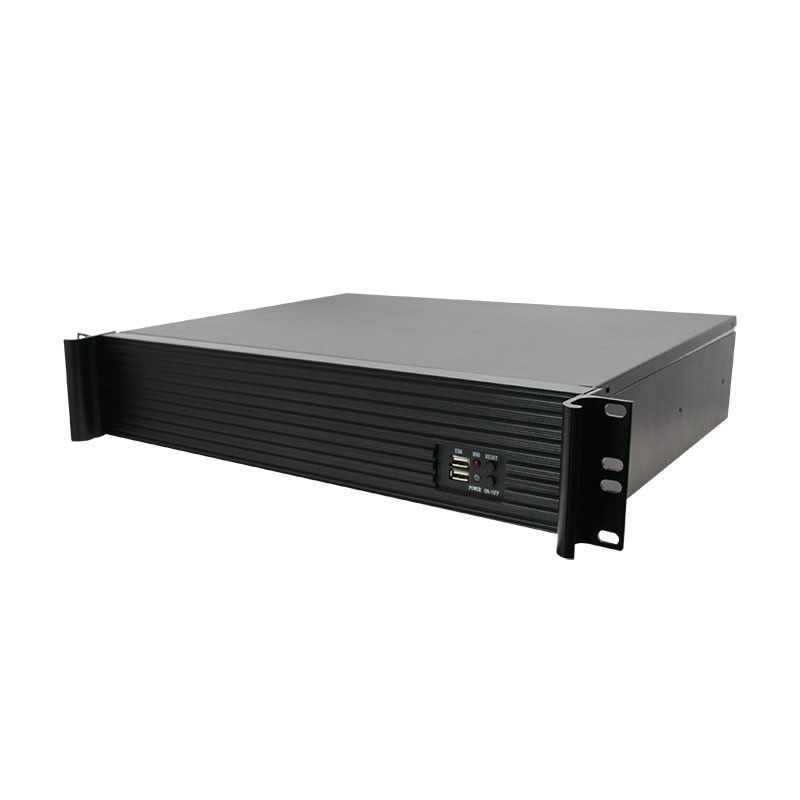

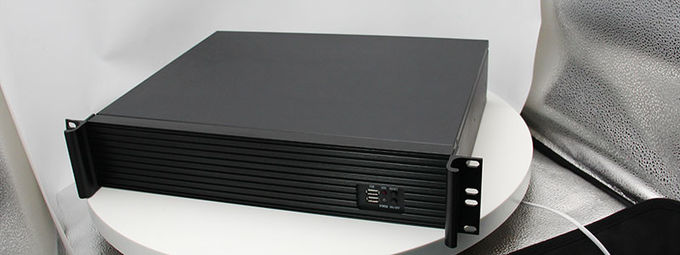

NVIDIA Jetson AGX Orin 32GB Embedded Computer
Technical Specification
Module |
NVIDIA Jetson AGX Orin 32G |
|
AI Performance |
200 TOPS |
| GPU |
1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| GPU Max Frequency | 930 MHz |
| CPU Max Frequency | 2.2 GHz |
| Memory |
32GB 256-bit LPDDR5 |
| Storage |
64GB eMMC 5.1 |
|
Video Encode |
1x 4K60 (H.265) |
|
Video Decode |
1x 8K30 (H.265) |
| CAN |
2 |
| GPIO | 4 |
| SPI | 1 |
| I2C | 2 |
| RS 232 | 2 |
| Debug(UART) | 1 |
| Networking | 2 x 10/100/1000 Ethernet/RJ45 |
| Power Supply | AC 220V |
| Temperature | -20~+65°C |
| Dimensions | 430mm × 360mm ×88mm |
| Weight | 6050g |
