| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | ORIN32-8F4E1 |
| Minimum Order Quantity: | 1SET |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | Deep Learning Imbedded Computer Industrial PC Box Jetson AGX Orin 32G | Keyword: | Deep Learning Imbedded Computer Industrial PC Box Jetson AGX Orin 32G |
|---|---|---|---|
| AI Performance: | 200 TOPS | GPU: | 1792-core NVIDIA Ampere Architecture GPU With 56 Tensor Cores |
| CPU: | 8-core Arm® Cortex®-A78AE V8.2 64-bit CPU 2MB L2 + 4MB L3 | Memory: | 32GB 256-bit LPDDR5 204.8GB/s |
| Storage: | 64GB EMMC 5.1 | Display: | 1x 8K60 Multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| USB Micro-B: | 1 X Type B (OTG) | USB Type-A: | 2 X USB 3.1 |
| Other I/O: | 4 X GPIO(3.3V) | 1 X SPI(3.3V) | 2 X I2C(3.3V) | 2 X RS-232 1 X Debug(UART) 2 X CAN (with On-board Transceiver) | Networking: | 1x GbE 1x 10GbE |
| Temperature: | -20~+65°C | Power: | AC 220 V |
| Size: | 335mm*257mm*146mm | Weight: | 5500g |
| High Light: | Orin imbedded computer,Jetson imbedded computer,Jetson industrial pc box |
||

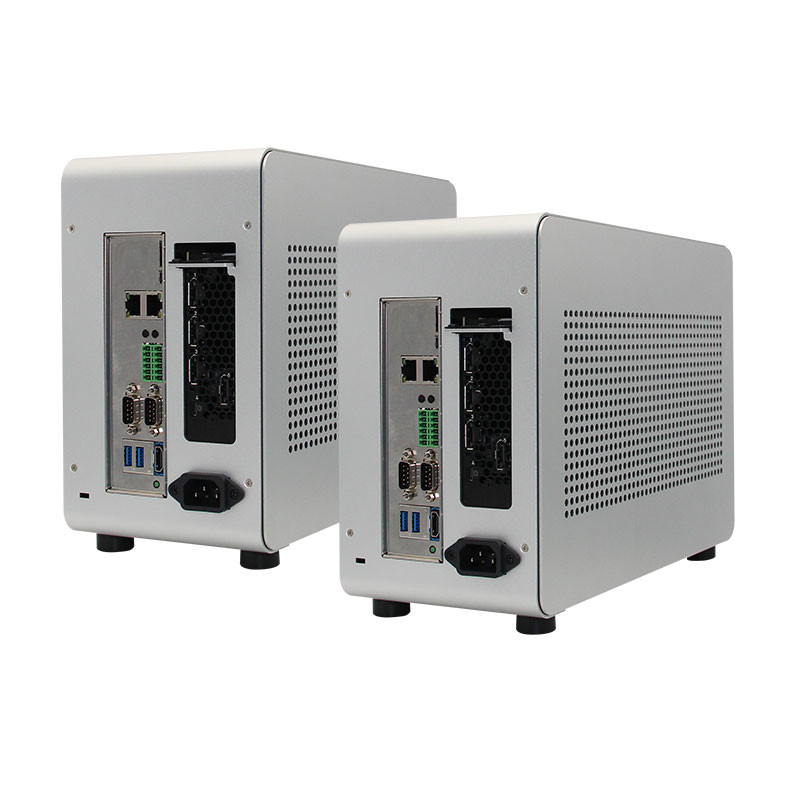

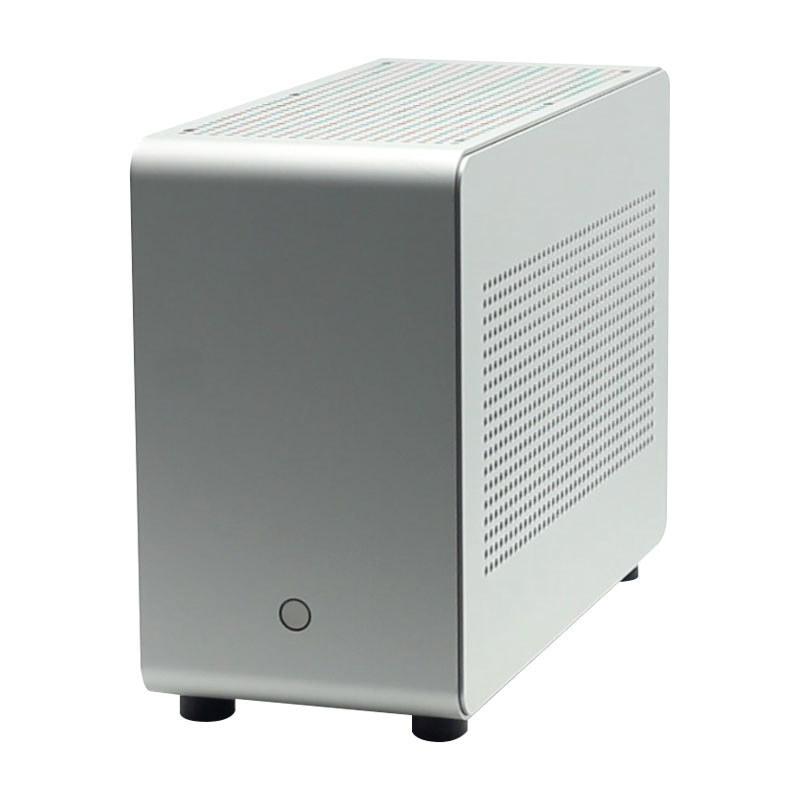

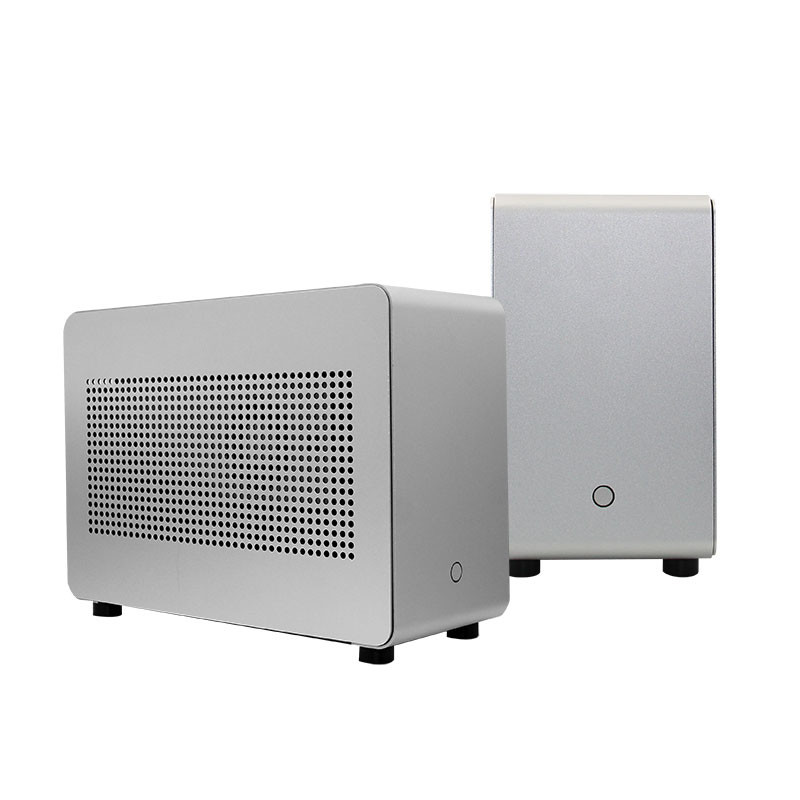

Deep Learning Imbedded Computer Industrial PC Box Jetson AGX Orin 32G
NVIDIA Jetson AGX Orin Embedded IPC
ORIN32-8F4E1 Embedded Computer
NVIDIA Ampere GPU + 2x NVDLA v2.0 + 32GB 256-bit LPDDR5 + 64GB eMMC 5.1

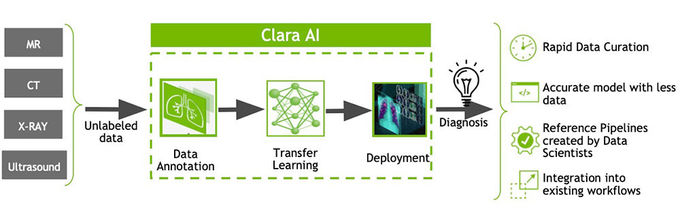

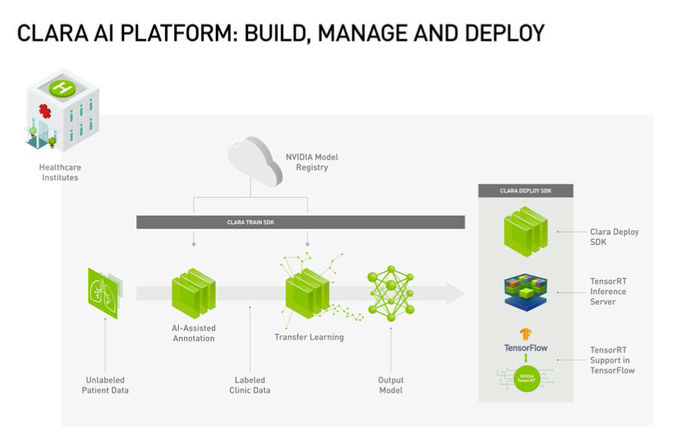

Clara Train SDK
AI Assisted Annotation + Transfer Learning for Medical
Internal SA Training Presentation
CLARA AI
Lowering the barriers to AI adoption
End to End NVIDIA Deep Learning
NETWORK VIDEO RECORDER
200 million 1080p streams
MACHINE VISION/AOI
1 trillion product units per year require visual inspection
HOME/SERVICE ROBOTS
175 billion hours per year on household chores
NVIDIA Orin module for Smart City, Public Safety, Retail, Healthcare & Robotics
Product Features and Specifications
|
Product size |
146mm×335mm×257 mm |
|
Power requirements |
220V |
|
Working temperature |
-20~+65°C |
|
Weight |
5050g |
|
Optional expansion |
32GB ~ 1TB SSD storage |
|
Maximum scalability 512g TF card memory |
|
|
4G and WIFI module can be extended |
|
|
The initial setting can be reset and restored |
|
NVIDIA Jetson AGX Orin 32GB Technical Specifications
|
Model |
NVIDIA Jetson AGX ORIN Module (32GB) |
|
AI Performance |
200 TOPS |
|
GPU |
1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
|
Safety Cluster Engine |
- |
|
Vision Accelerator |
1x PVA v2 |
|
Memory |
32GB 256-bit LPDDR5 |
|
Storage |
64GB eMMC 5.1 |
|
Camera |
Up to 6 cameras (16 via virtual channels) |
|
PCIe |
Up to 2 x8 + 1 x4 + 2 x1 |
|
USB |
3x USB 3.2 Gen2 (10 Gbps) |
|
4x USB 2.0 |
|
|
Other I/O |
4x UART |
|
4x I2S |
|
|
3x SPI |
|
|
8x I2C |
|
|
2x CAN |
|
|
PWM, DMIC & DSPK, GPIOs |
|
|
Networking |
1x GbE |
|
1x 10GbE |
|
|
Mechanical |
100mm x 87mm |
