| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | ORIN32-8F5E2 |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| NAME: | 12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles | Keyword: | 12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles |
|---|---|---|---|
| AI Performance: | 200 TOPS | GPU: | 8-core Arm® Cortex®-A78AE V8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Memory: | 32GB 256-bit LPDDR5 204.8GB/s | Storage: | 64GB EMMC 5.1 |
| Color: | Silver | USB Type-A: | 1 X USB 3.1 |
| USB Micro-B: | 1 X Type B (OTG) | GPIO(3.3V): | *4 |
| SPI(3.3V): | *1 | I2C(3.3V): | *2 |
| RS 232: | *2 | CAN: | *2 |
| Dimensions: | 238 Mm × 222 Mm × 67 Mm | Weight: | 2950g |
| High Light: | 12V mini pc windows embedded,mini pc windows embedded GPU,12V windows embedded mini pc |
||
12V AI Edge Computing Mini PC Windows Embedded GPU For Vehicles
NVIDIA Jetson AGX Orin Module

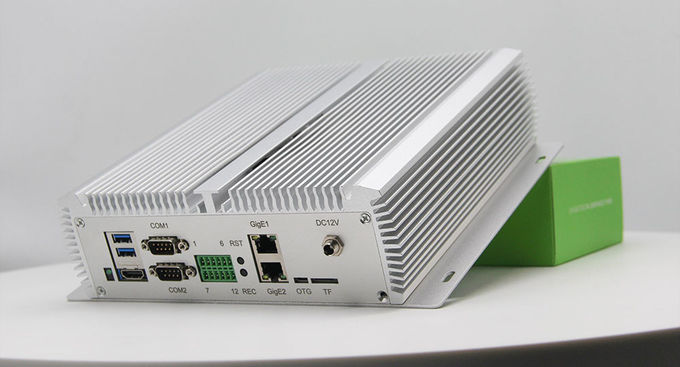

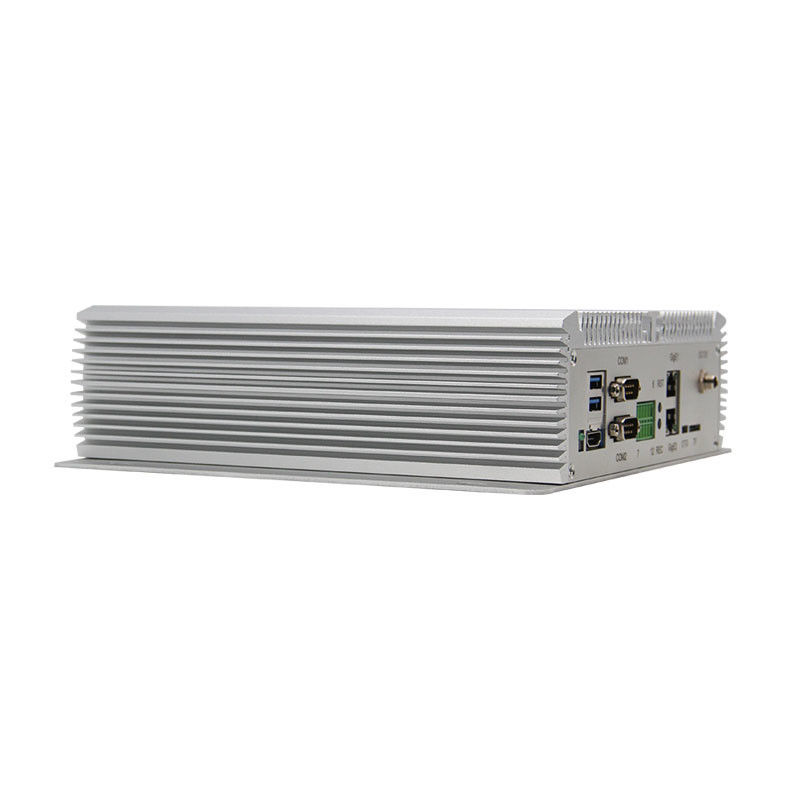

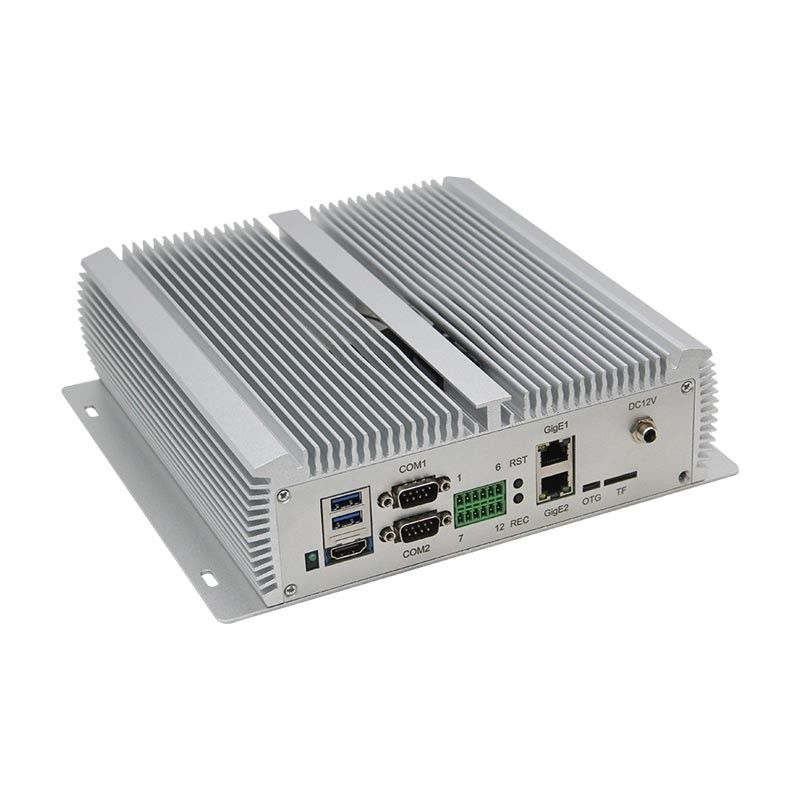

ORIN32-8F5E2 is an industrial PC box with NVIDIA Jetson AGX Xavier and AGX ORIN module. and it is with multi chip module GPU, is designed based on worse environmental conditions and has good characteristics such as anti-seismic and dust-proof, and is suitable for V2X and other fields.
8F5E2 provides M.2 ports, MiniPCIe ports, which is suitable for multi-network port scenarios.
Type-A USB3.0 standard connector
When equipped with AGX ORIN, it supports USB3.1 function and is backward compatible;
Type-B micro USB interface
When equipped with AGX ORIN, only used for burning system
Name | ORIN32-8F5E2 |
Module | NVIDIA Jetson AGX Orin 32GB |
AI Performance | 200 TOPS |
CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
GPU | 1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
Memory | 32GB 256-bit LPDDR5 |
Storage | 64GB eMMC 5.1 |
USB3.1 Type-A | 1* |
Micro-B | 1* Type B (OTG) |
Networking | 2* 10/100/1000 Ethernet/RJ45 |
Temperature | -20℃ ～ 65℃ |
Power | DC +12V |
GPIO(3.3V) | 4* |
SPI(3.3V) | 1* |
I2C(3.3V) | 2* |
RS 232 | 2* |
Debug(UART) | 1* |
CAN | 2* |
Size | 238 mm × 222 mm × 67 mm |
Weight | 2950g |
Typical Installation
Ensure power off of all external system
Install the necessary external cables.(e.g. display cable connected to HDMI monitor,power input cable supplying power to the system, USB cable connecting keyboard and mouse...)
Connect the power cord to the power supply
8F5E2 could be set as default automatic power on or switch on. Please consult the sales and technical staff of our company for specific methods.
