| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | AGX32-8F3E1 |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| NAME: | AI Nvidia AGX Xavier PC Embedded Computing 32G For Portable Drone Aerospace Cooperation | Keyword: | AI Nvidia AGX Xavier PC Embedded Computing 32G For Portable Drone Aerospace Cooperation |
|---|---|---|---|
| AI Performance: | 32 TOPS | CPU: | 8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3 |
| GPU: | NVIDIA Volta Architecture With 512 NVIDIA CUDA Cores And 64 Tensor Cores | USB Micro-B: | 1* |
| USB Type-A: | 2* | Networking: | 2* |
| Power Supply: | DC + 12V | Temperature: | -20~+65°C |
| Dimensions: | 198 Mm × 197 Mm × 45 Mm | Weight: | 1340g |
| High Light: | Nvidia AGX Xavier PC,32G Nvidia AGX Xavier,32G xavier pc |
||
AI Nvidia AGX Xavier PC Embedded Computing 32G For Portable Drone Aerospace Cooperation
NVIDIA Jetson AGX Xavier IPC (AGX32-8F3E1)
NVIDIA Jetson AGX Xavier 32GB module
The NVIDIA Jetson AGX Xavier series module integrates the Bosch Time-triggered Controller Area Network (M_TTCAN ) controller version 3.2.0. Two independent CAN ports/channels supports connectivity to two CAN networks; each port instantiates the Bosch M_TTCAN module, a message RAM module, an APB slave interface module, interrupt aggregator, time-triggered control module and a wake detect module. All M_TTCAN external modules have direct connections to M_TTCAN except for the wake detect module.

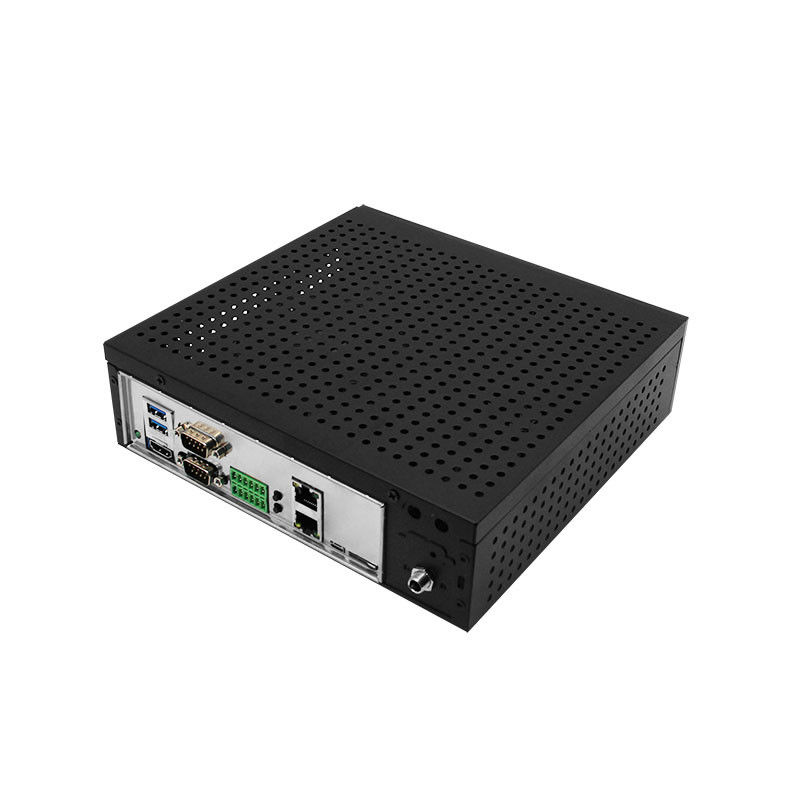

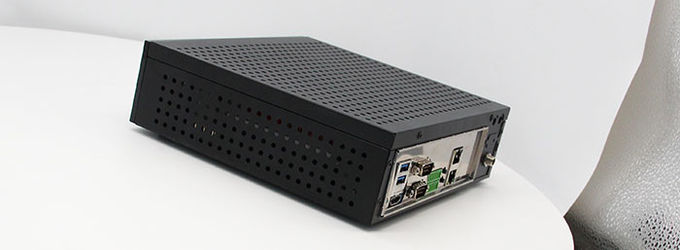

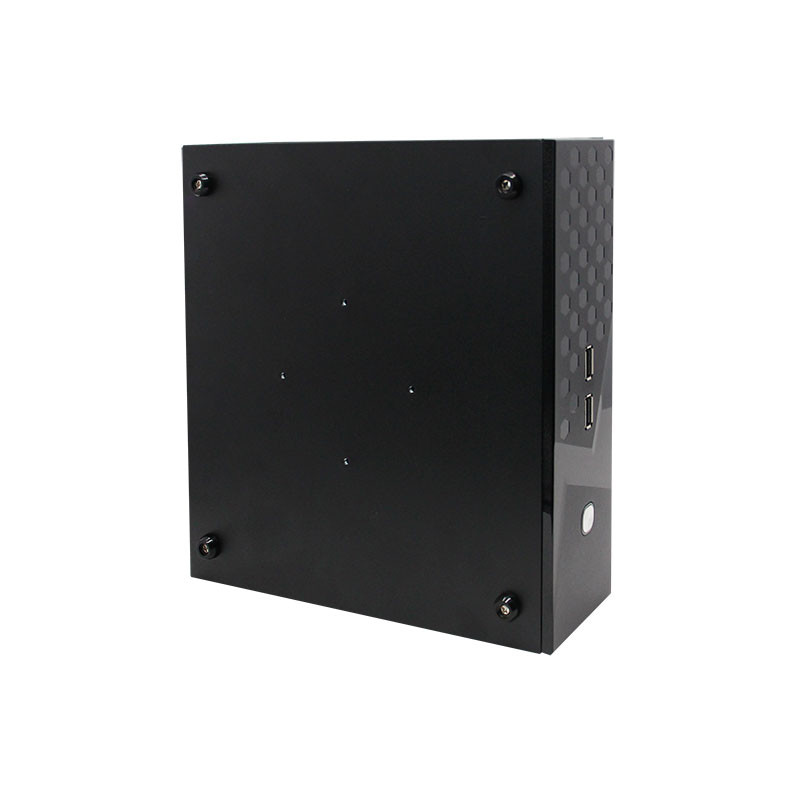

NVIDIA Jetson AGX Xavier Industrial Embedded Computer AGX32-8F3E1
Power : DC +12V
Weight : 1340g
Size : 198mm × 197mm ×45mm
Temperature Range : -20℃ to 65℃
Features and Specifications
| Brand | PLink | |
| Product Name | AGX32-8F3E1 | |
| CPU | 8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3 |
|
| GPU | NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores | |
| AI Performance | 32 TOPS | |
| Memory | 32 GB 256-bit LPDDR4x 136.5GB/s | |
| Storage | 32GB eMMC 5.1 | |
| USB Micro-B | 1 x Type B (OTG) | |
| USB Type-A | 2 x USB 3.1 | |
| Product size | 198mm×197mm×45mm | |
| Power | DC + 12V | |
| Temperature | -20~+65℃ | |
| Weight | 1340g | |
| Storage | 64GB eMMC 5.1 | |
| Maximum scalability | 512g TF card memory | |
| Other I/O | 4 x GPIO(3.3V) | |
| 1 x SPI(3.3V) | ||
| 2 x I2C(3.3V) | ||
| 2 x RS 232 | ||
| 1 x Debug(UART) | ||
| 2 x CAN (with on-board transceiver) | ||
| PCIe | Up to 2 x8 + 1 x4 + 2 x1 (PCIe Gen4, Root Port, & Endpoint) |
|
| Networking | 2 x 10/100/1000 Ethernet/RJ45 | |
| 4G and WIFI module can be extended | ||
| The initial setting can be reset and restored | ||
