| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C9-DEV-Xavier32G |
| Minimum Order Quantity: | 1SET |
| Price: | To be discussed |
| Packaging Details: | 110*140*50mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System | Keyword: | Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System |
|---|---|---|---|
| Model Number: | NVIDIA Jetson AGX Xavier 32G | AI Performance: | 32 TOPS |
| HDMI 2.0: | 2x NVDLA Engines | Memory: | 32 GB 256-bit LPDDR4x 136.5GB/s |
| Power: | DC +12V | Temperature: | -25~+65℃ |
| Single Package Size: | 136mm×100mm×20 Mm | Weight: | 412g |
| High Light: | Embedded jetson agx xavier 32gb,jetson agx xavier 32gb Carrier Board,Embedded jetson agx carrier board |
||
Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System
NVIDIA Jetson AGX Xavier (32G ) Y-C9-DEV

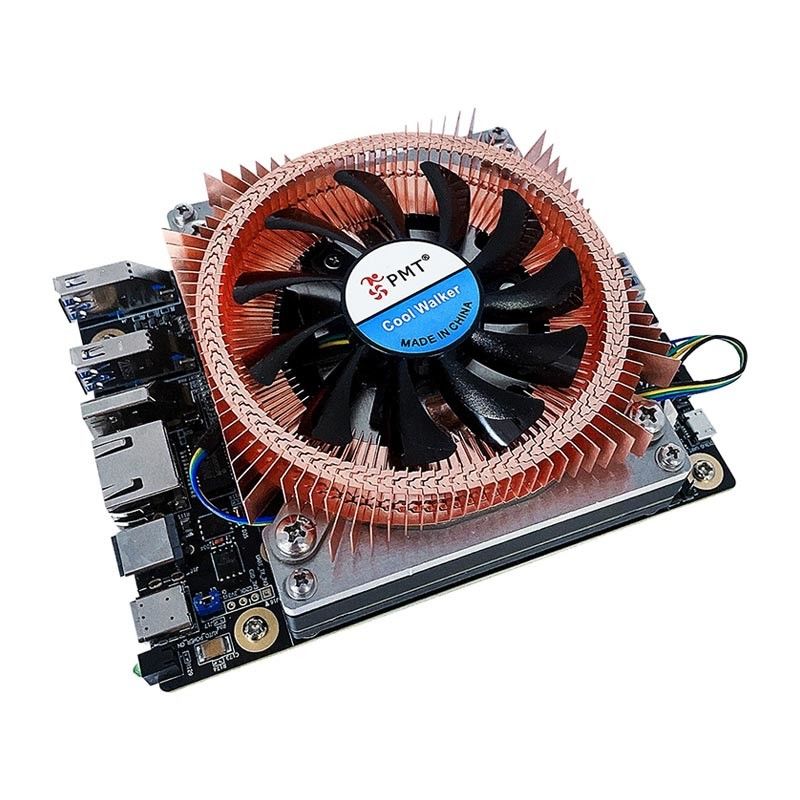

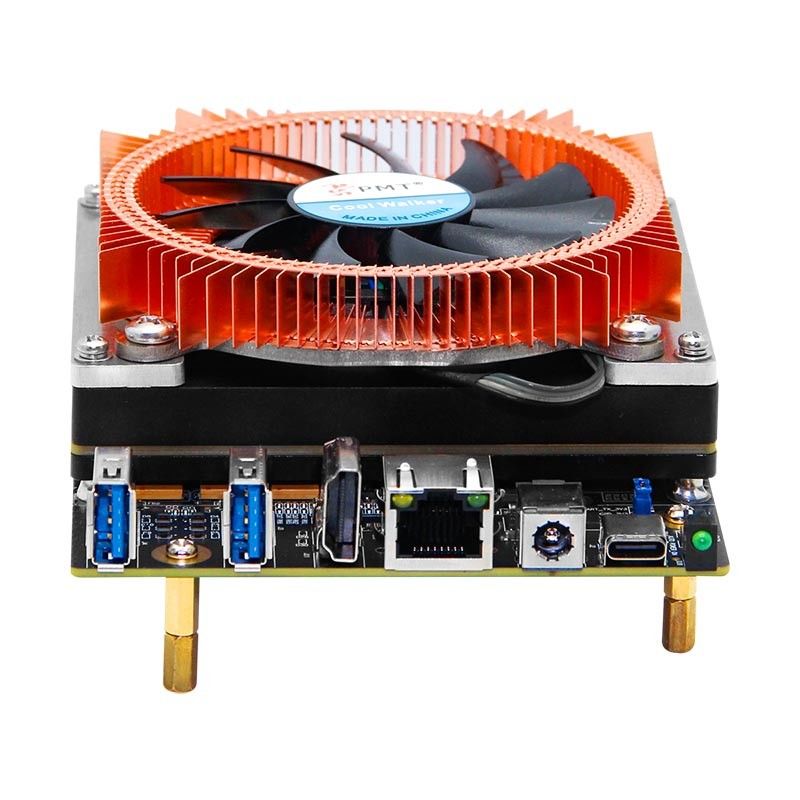

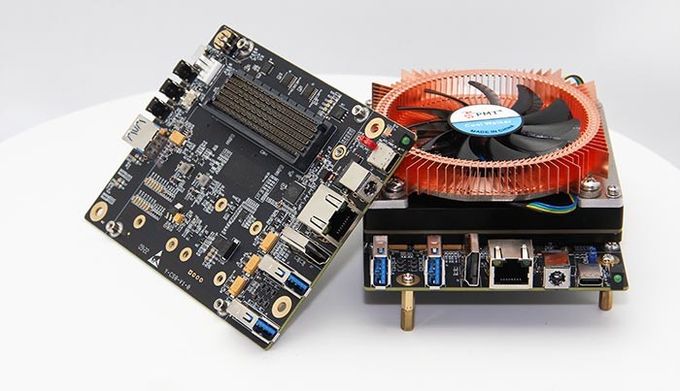

NVIDIA Jetson AGX Xavier(32G) + Y-C9 Carrier Board + Cooling FAN
The Y-C9-DEV is for deep lesrning and makes the makers, developers good to creat the autonomous products, it based on NVIDIA Jetson AGX Xavier module, two instances of the NVIDIA Multi-Standard Video Decoder (NVDEC). The video decoder is designed to be extremely power efficient without sacrificing performance and communicates with the memory controller through the video DMA which supports a variety of memory format output options. For low power operations, the video decoder can operate at the lowest possible frequency while maintaining real-time decoding using dynamic frequency scaling techniques.
NVIDIA Jetson AGX Xavier module Technical Specifications
|
AI Perf |
32 TOPS |
|
GPU |
512-core NVIDIA Volta architecture GPU with 64 Tensor Cores |
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
Memory |
32GB 256-bitLPDDR4x 136.5GB/s |
|
CSI Camera |
Up to 6 cameras |
|
Storage |
32GB eMMC 5.1 |
|
USB |
3x USB 3.2 Gen2 (10 Gbps) |
|
PCIe |
1 x8 + 1 x4 + 1 x2 + 2 x1 |
|
USB 3.1 Type-A |
3 |
|
Micro USB (Debug) |
1 |
|
USB Type-C |
1 |
|
MiniPCIe |
2 |
|
M.2 Key M |
1 |
|
3.3V TTL |
2 |
|
Working indicator light |
1 |
|
Fan control interface |
1 |
|
Gigabit Ethernet (10/100/1000 BASE-T) RJ45 |
1 |
|
HDMI 2.0 |
1 |
|
Size |
136mm×100mm×20 mm |
|
Weight |
412g |
|
Power |
DC +12V |
|
Temperature |
-25~+65℃ |
