| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | AGX xavier 32G |
| Minimum Order Quantity: | 1pcs |
| Price: | $1100-$1200/pcs |
| Packaging Details: | 100mm x 87mm 699 pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 15-30 work days |
| NAME: | 32 TOPS Nvidia Jetson Agx Xavier Module 32G For Autopilot | Keyword: | 32 TOPS Nvidia Jetson Agx Xavier Module 32G For Autopilot |
|---|---|---|---|
| Model Number: | AGX Xavier 32G (900-82888-0040-000) | GPU: | NVIDIA Volta Architecture With 512 NVIDIA CUDA Cores And 64 Tensor Cores 22 TOPS (INT8) |
| CPU: | 8-Core Carmel ARM V8.2 64-Bit CPU, 8 MB L2 + 4 MB L3 | Memory: | 32 GB 256-bit LPDDR4x 136.5GB/s |
| Storage: | 32 GB EMMC 5.1 | Networking: | 10/100/1000 BASE-T Ethernet |
| Display: | Three Multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 A/b | Other I/O: | USB 2.0 UART, SPI, CAN, I2C, I2S, DMIC & DSPK, GPIOs |
| Mechanical: | 100mm X 87mm 699 Pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate | ||
| High Light: | Autopilot jetson agx xavier module,32G jetson agx xavier module,32G nvidia jetson agx xavier module |
||

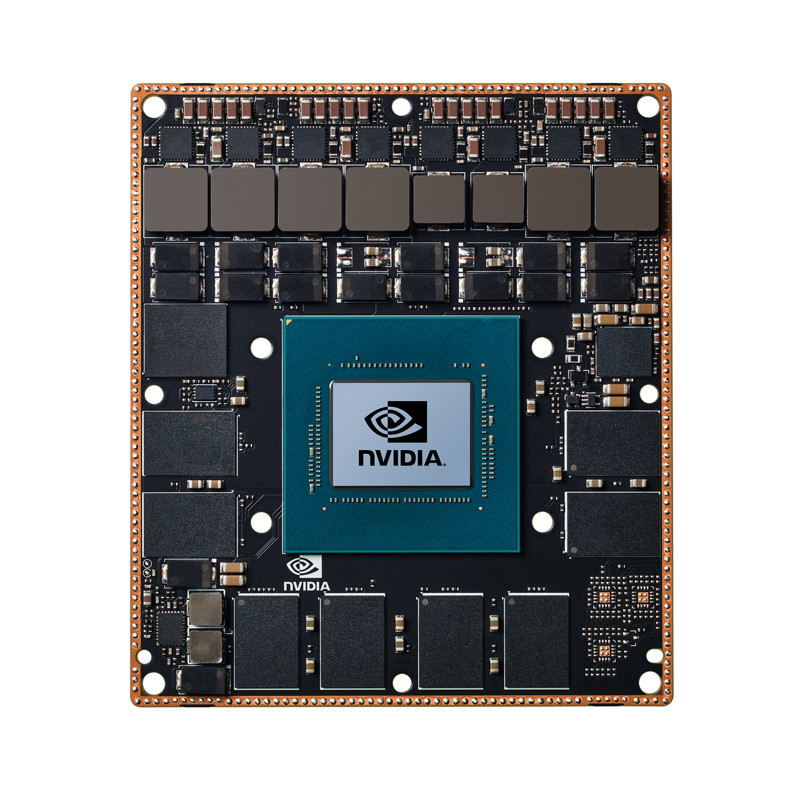

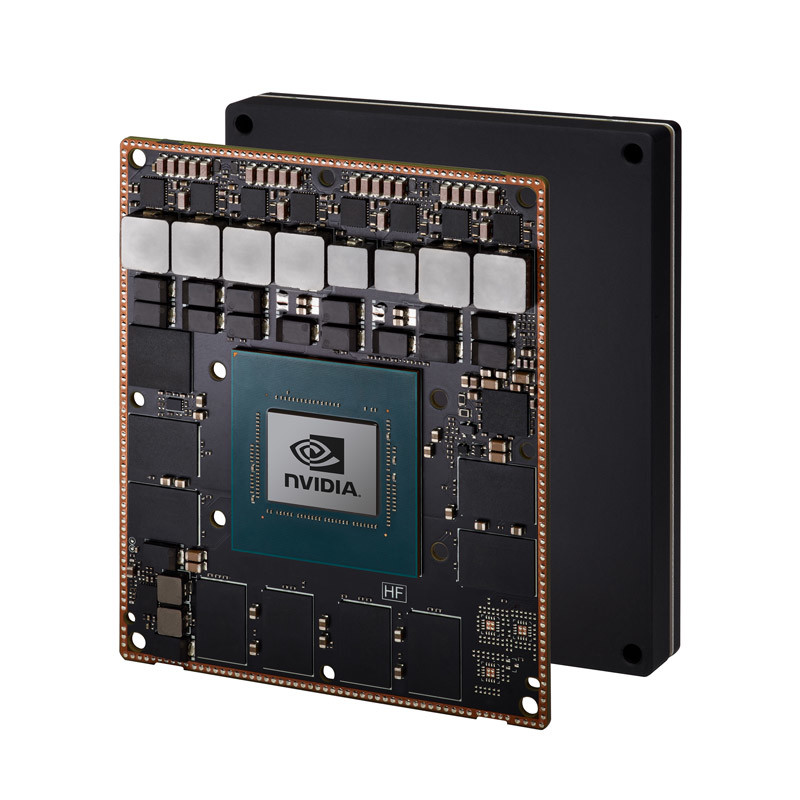

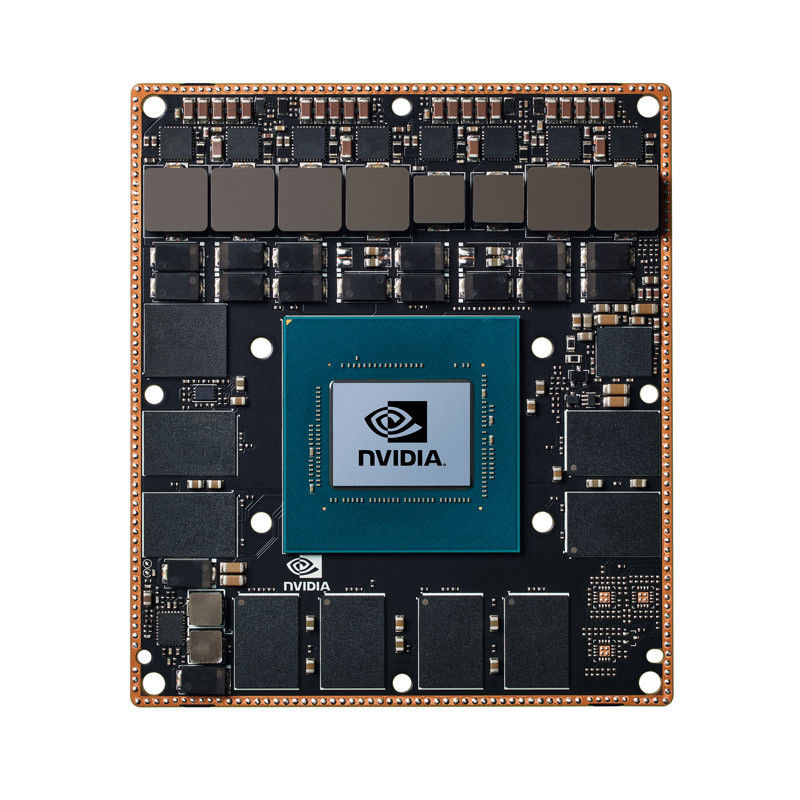

Nvidia AGX xavier 32G module brand new agx xavier autopilot module
NVIDIA Jetson AGX Xavier 32G / 64G / Xavier Industrial
NVIDIA Jetson AGX Xavier sets a new bar for compute density, energy efficiency, and AI inferencing capabilities on edge devices. It’s the next evolution in next-generation intelligent machines with end-to-end autonomous capabilities.
At just 100 x 87 mm, Jetson AGX Xavier offers big workstation performance at 1/10 the size of a workstation. This makes it ideal for autonomous machines like delivery and logistics robots, factory systems, and large industrial UAVs.
The Jetson AGX Xavier module makes AI-powered autonomous machines possible, running in as little as 10W and delivering up to 32 TOPs. As part of the world’s leading AI computing platform, it benefits from NVIDIA’s rich set of AI tools and workflows, enabling developers to quickly train and deploy neural networks.
NVIDIA Jetson AGX Xavier 32G Module Technical Specifications
|
GPU |
NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores 22 TOPS (INT8) |
|
CPU |
8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3 |
| DL Accelerator | 2x NVDLA 10 TOPS (INT8) |
| Vision Accelerator | 2x PVA |
| Memory | 32GB 256-bit LPDDR4x 136.5GB/s |
| Storage | 32 GB eMMC 5.1 |
| CSI Camera | Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2, 8 lanes SLVS-EC D-PHY 1.2 (up to 40Gbps) C-PHY 1.1 (up to 62Gbps) |
| Video Encode | 4x 4K60 (H.265) 8x 4K30 (H.265) 16x 1080p60 (H.265) 32x 1080p30 (H.265) 30x1080p30 (H.264) |
| Video Decode | 2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 26x 1080p60 (H.265) 52x 1080p30 (H.265) 30x 1080p30 (H.264) |
| UPHY | 8x PCIe Gen4 | 8x SLVS-EC 3x USB 3.1 Single Lane UFS |
| Networking | 10/100/1000 BASE-T Ethernet |
| Display | Three multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 a/b |
| Other I/O | USB 2.0 UART, SPI, CAN, I2C, I2S, DMIC & DSPK, GPIOs |
| Power | 10W | 15W | 30W |
| Mechanical | 100mm x 87mm 699 pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate |
Compare Modules
| NVIDIA Jetson AGX Xavier 64GB | NVIDIA Jetson AGX Xavier 32GB | NVIDIA Jetson AGX Xavier Industrial | |
| AI Performance |
32 TOPS |
30 TOPS | |
| GPU | NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores | ||
| CPU |
8-core NVIDIA Carmel Armv8.2 64-bit CPU
8MB L2 + 4MB L3
|
||
| DL Accelerator | 2x NVDLA | ||
| Vision Accelerator | 2x PVA | ||
| Safety Cluster Engine |
_ |
2x Arm Cortex-R5 in lockstep | |
| Memory |
64GB 256-bit LPDDR4x
136.5GB/s
|
32GB 256-bit LPDDR4x
136.5GB/s
|
32GB 256-bit LPDDR4x (ECC support)
136.5GB/s
|
| Storage | 32GB eMMC 5.1 | 64GB eMMC 5.1 | |
| Camera |
Up to 6 cameras
(36 via virtual channels)
16 lanes MIPI CSI-2 | 8 lanes SLVS-EC
D-PHY 1.2 (up to 40 Gbps)
C-PHY 1.1 (up to 62 Gbps)
|
Up to 6 cameras
(36 via virtual channels)
16 lanes MIPI CSI-2
D-PHY 1.2 (up to 40 Gbps)
C-PHY 1.1 (up to 62 Gbps)
|
|
| Video Encode |
4x 4K60 (H.265)
8x 4K30 (H.265)
16x 1080p60 (H.265)
32x 1080p30 (H.265)
30x1080p30 (H.264)
|
2x 4K60 (H.265/H.264)
6x 4K30 (H.265/H.264)
12x 1080p60 (H.265/H.264)
24x 1080p30 (H.265/H.264)
|
|
| Video Decode |
2x 8K30 (H.265)
6x 4K60 (H.265)
12x 4K30 (H.265)
26x 1080p60 (H.265)
52x 1080p30 (H.265)
30x 1080p30 (H.264)
|
2x 8K30 (H.265)
4x 4K60 (H.265)
8x 4K30 (H.265)
18x 1080p60 (H.265)
36x 1080p30 (H.265)
24x 1080p30(H.264)
|
|
| UPHY |
8x PCIe Gen4 | 8x SLVS-EC
3x USB 3.1
Single Lane UFS
|
8x PCIe Gen4
3x USB 3.1
Single Lane UFS
|
|
| Networking | 10/100/1000 BASE-T Ethernet | ||
| Power | 10W | 15W | 30W | 20W | 40W | |
| Display | Three multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 a/b | ||
| Other I/O |
USB 2.0
UART, SPI, CAN, I2C, I2S, DMIC & DSPK, GPIOs
|
||
| Mechanical |
100mm x 87mm
699-pin connector
Integrated Thermal Transfer Plate
|
||
