| Place of Origin: | China |
|---|---|
| Brand Name: | Leadtek |
| Model Number: | WinFast GS2040T |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |
| NAME: | Leadtek WinFast GS2040T For AI Deep Learning 3D Rendering PC Workstation Server | Keyword: | Leadtek WinFast GS2040T For AI Deep Learning 3D Rendering PC Workstation Server |
|---|---|---|---|
| CPU: | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors Support CPU TDP 270W Up To 40 Cores | Memory Type: | 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM |
| Memory Capacity: | 16 DIMM Slots Up To 4TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM Supports Intel® Optane™ DCPMM | Chipset: | Intel® C621A Chipset |
| SATA: | 8 SATA3 (6Gbps) Ports | Video: | 1 VGA Connector |
| Hot-swap: | 10x 2.5" Hot-swap NVMe/SATA/SAS Drive Bays (4x 2.5" NVMe Dedicated) | Fans: | 5x 8cm Heavy Duty Fans With Optimal Fan Speed Control |
| Weight: | Net Weight: 39.5 Lbs (17.9 Kg) Gross Weight: 54 Lbs (24.5 Kg) | ||
| High Light: | 1 VGA 3d Rendering Server,Leadtek WinFast GS2040T 3d Rendering Server |
||

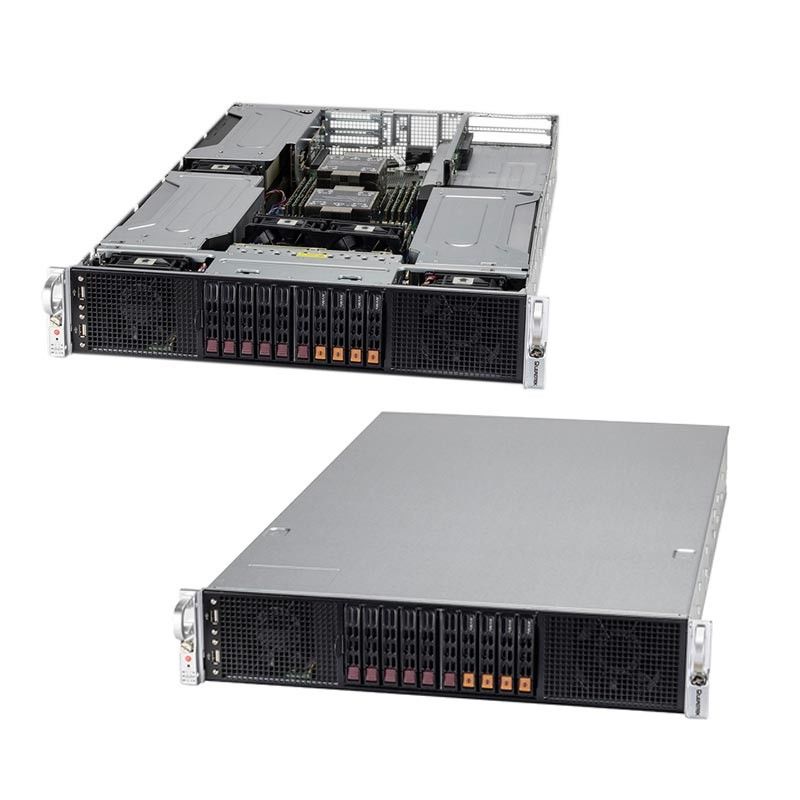

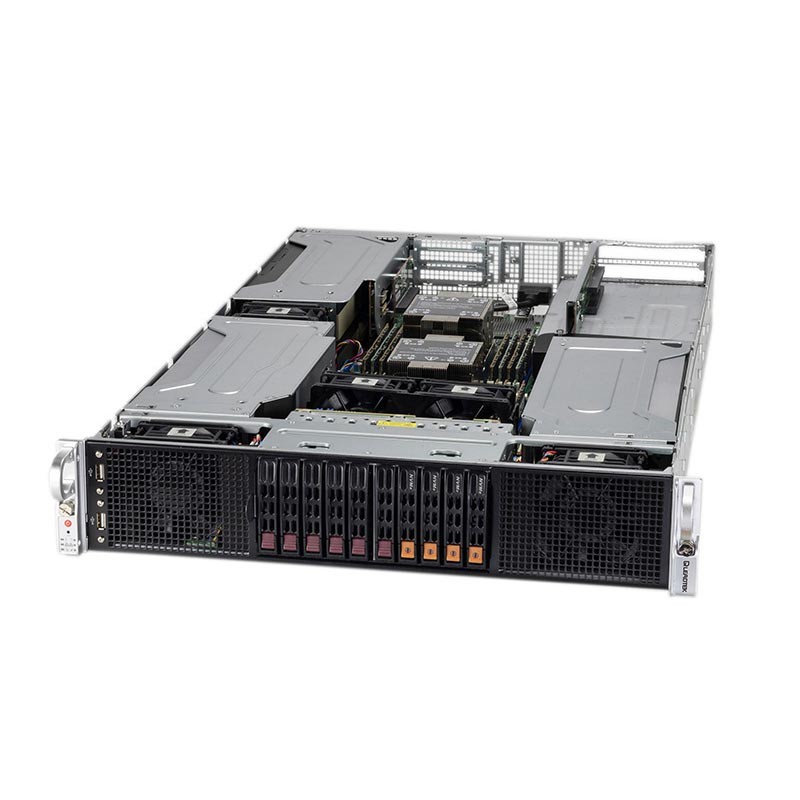

Leadtek WinFast GS2040T PC Workstation Server For AI Deep Learning 3D Rendering
Model, simulate, test, and improve products like never before. With WinFast Workstation manufacturers can design and bring innovative products to market faster.
PCIe 4.0 delivers double the I/O performance over PCIe 3.0. You can use 128 lanes of I/O to double the network bandwidth that ties together HPC clusters and satisfies voracious needs for east-west bandwidth. For other application needs and in virtualized environments, you can connect with higher speed to GPU accelerators, NVMe drives.
Processor
|
CPU |
Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W Up to 40 Cores |
System Memory
| Memory Capacity | 16 DIMM slots Up to 4TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM Supports Intel® Optane™ DCPMM |
| Memory Type | 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM |
Input/Output
| SATA | 8 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GBase-T LAN ports |
| 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 ports (rear) 2 USB 2.0 ports (front) |
| Video | 1 VGA Connector |
Dimensions and Weight
| Height | 3.46"(88mm) |
| Width | 17.35"(440.7mm) |
| Depth | 30.18"(766.8mm) |
| Weight | Net Weight: 39.5 lbs (17.9 kg) |
| Gross Weight: 54 lbs (24.5 kg) |
Power Supply
| Power | 2600W 1U Redundant Power Supplies with PMBus |
| AC Input | 2600W: 200-240Vac / 15A Max |
| DC Input | 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz |
| +12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) |
Operating Environment
| RoHS | RoHS Compliant |
| Environmental Spec. |
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
