| Place of Origin: | China |
|---|---|
| Brand Name: | LeadTek |
| Model Number: | WinFast WS750 |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |
| NAME: | Leadtek WinFast WS750 PC Workstation Server For AI Deep Learning 3D Rendering | Keyword: | Leadtek WinFast WS750 PC Workstation Server For AI Deep Learning 3D Rendering |
|---|---|---|---|
| CPU: | Single Socket V (LGA-1700) 12th / 13th Generation Intel® Core™ Processors Support CPU TDP 125W Up To 16(8+8) Cores | Memory Capacity: | 4 DIMM Slots Memory Capacity: Up To 128GB |
| Memory Type: | 4400~4800MHz ECC DDR5 UDIMM | Chipset: | Intel® W680 |
| SATA: | 8 SATA3 (6 Gbps) Ports, RAID 0/1/5/10 Support | Network Controllers: | 1 RJ45 Gigabit Ethernet LAN Port 1 RJ45 2.5 Gigabit Ethernet LAN Port |
| NVMe: | 3 NVMe Support With M.2 Socket | LAN: | 1 RJ45 GbE And 1 RJ45 2.5GbE LAN Ports |
| High Light: | Leadtek WinFast WS750 Pc Workstation Server,AI Deep Learning Pc Workstation Server,3D Rendering Pc Workstation Server |
||

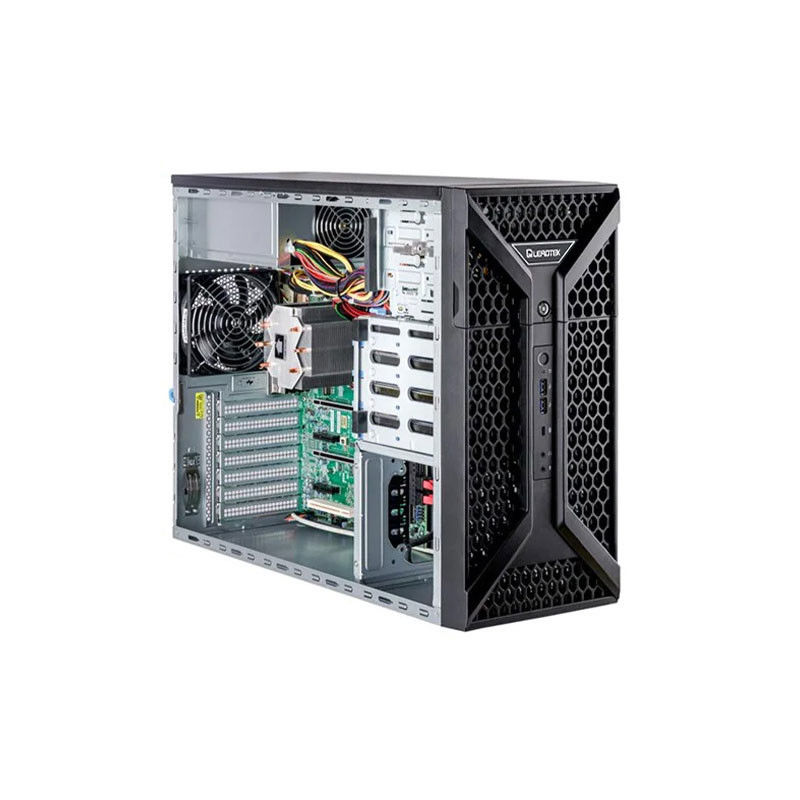

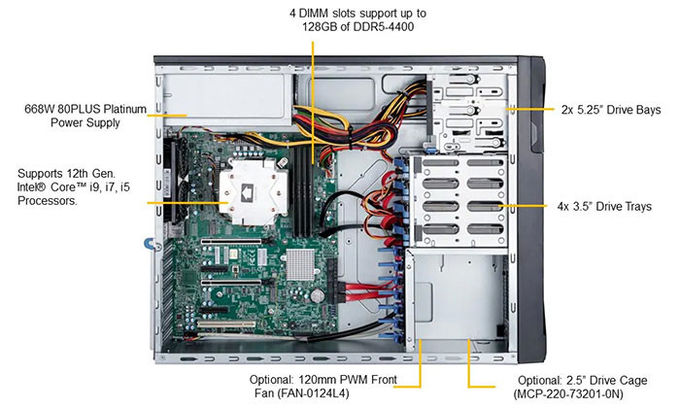

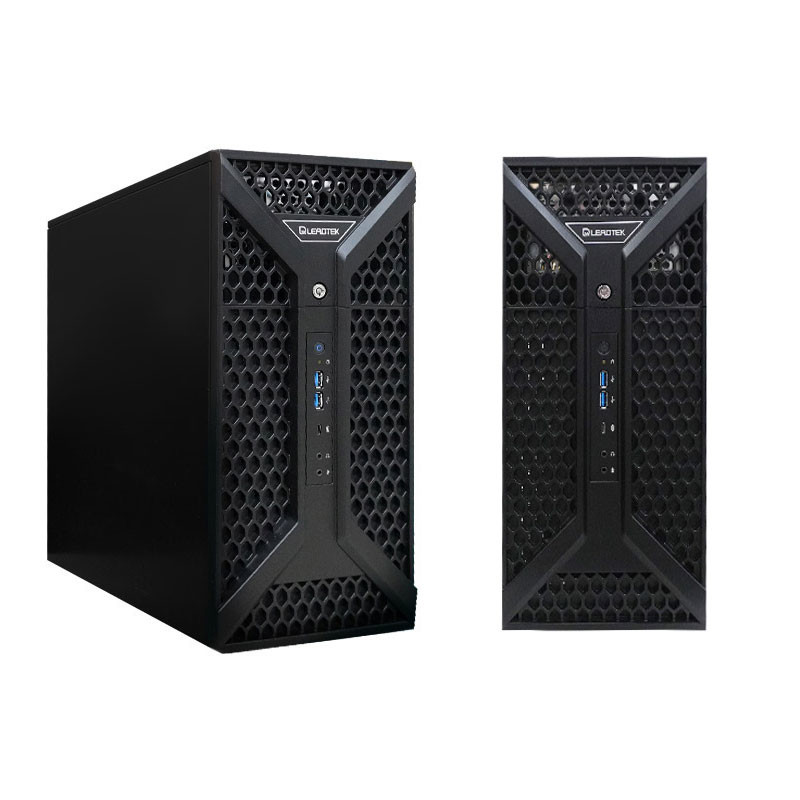

Leadtek WinFast WS750 PC Workstation Server For AI Deep Learning 3D Rendering
Entry-Level Workstation
Designed for AI/Deep learning/CAD and 3D Modeling
Support 1 NVIDIA Double-Width GPUs
Single Socket V (LGA-1700) 12th / 13th Generation Intel® Core™ Processors , TDP up to 125W
4 DIMM slots, up to 128GB: 4x 32 GB DRAM
Memory Type: 4400~4800MHz ECC DDR5 UDIMM
2 PCI-E 5.0 x16 slots (16/NA or 8/8)
2 PCI-E 3.0 x4
1 5V PCI 32bit
3 M.2 Interface: PCI-E 4.0 x4
Support 1 NVIDIA Quadro/GeForce card
1x 2.5GbE BaseT with Intel® i225V
1x 1GbE BaseT with Intel® i219LM
4 3.5" SATA drive bays
2 Standard 5.25" drive bays
4 2.5” SATA drive bays (Optional)
668W 80PLUS Platinum Power Supply

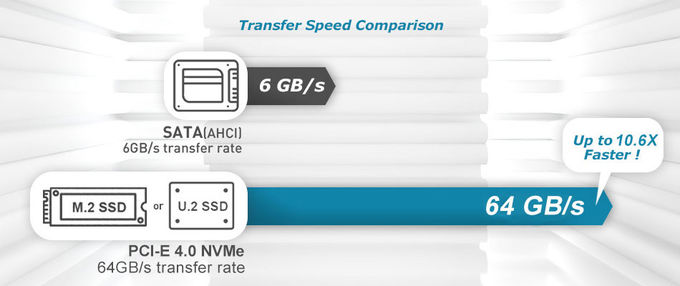

Up to 10.6X performance than SATA
| CPU |
Single Socket V (LGA-1700) |
|
12th / 13th Generation Intel® Core™ Processor |
|
|
Support CPU TDP 125W |
|
|
Up to 16(8+8) cores |
| Memory Capacity |
4 DIMM slots |
|
Memory Capacity: Up to 128GB |
|
| Memory Type | 4400~4800MHz ECC DDR5 UDIMM |
| Chipset | Intel® W680 |
| SATA | 8 SATA3 (6 Gbps) ports, RAID 0/1/5/10 support |
| Network Controllers |
1 RJ45 Gigabit Ethernet LAN port |
|
1 RJ45 2.5 Gigabit Ethernet LAN port |
| SATA | 8 SATA3 (6Gbps) ports |
| NVMe | 3 NVMe support with M.2 Socket |
| LAN | 1 RJ45 GbE and 1 RJ45 2.5GbE LAN ports |

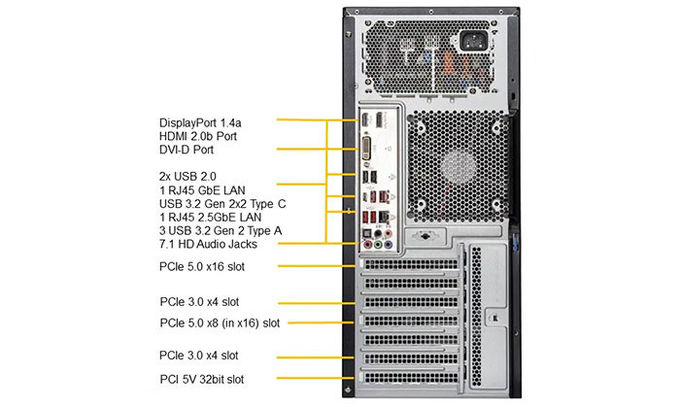

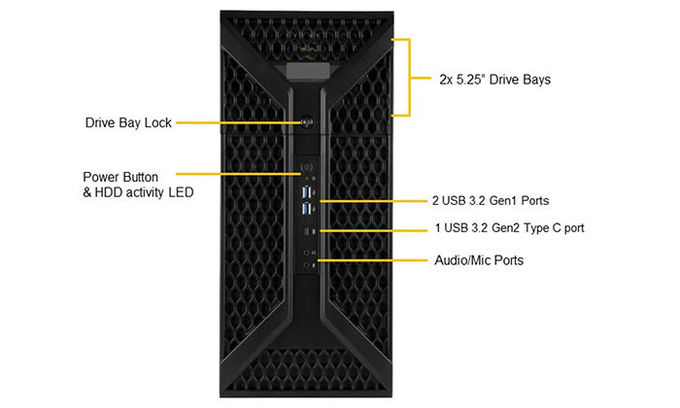

| USB |
3 USB 3.2 Gen 1 port(s) (2 front Type A; 1 front Type C) |
|
3 USB 3.2 Gen 2x1 port(s) (3 rear Type A) |
|
|
1 USB 3.2 Gen 2x2 port(s) (1 rear Type C) |
|
| Video |
1 DisplayPort 1.4a, 1 HDMI 2.0b Port |
|
1 Digital Video Interface (DVI-D) |
|
| Audio | 7.1 HD Audio with optical S/PDIF |

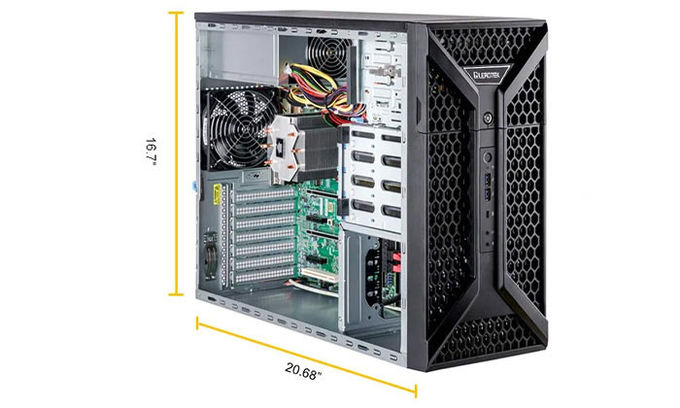

| Mid-Tower |
| Height | 16.7" (424mm) |
| Width | 7.6" (193mm) |
| Depth | 21.1" (536mm) |
| Weight | Gross Weight: 30 lbs (13.61 kg) |
|
4x 3.5" SATA (NVMe optional) drive bays |
|
2x 5.25" drive bays |
|
4x 2.5” drive bays(Optional) |
|
3 M.2 (M-key, 2280) |
| PCI-Express |
2 PCI-E 4.0 x16 slots |
|
2 PCI-E 3.0 x4 slots |
|
|
1 5V PCI 32bit |
|
| M.2 |
M.2 Interface: PCI-E 4.0 x4 |
|
Form Factor: 2280, M-Key |
| FANS |
1x 12cm rear exhaust fan |
|
1x 12cm front cooling fan (Optional) |
| 668W 80PLUS Platinum Power Supply | |
| AC Input | 100-240Vac / 50-60Hz |
Windows 10/11
Ubuntu 20.10
| RoHS | RoHS Compliant |
| Environmental Spec. |
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
|
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
|
|
|
Operating Relative Humidity: 8% to 90% (non-condensing) |
|
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
