| Place of Origin: | China |
|---|---|
| Brand Name: | Leadtek |
| Model Number: | NVIDIA Quadro T1000 8G |
| Minimum Order Quantity: | 1pcs |
| Price: | USD350-USD370\pcs |
| Packaging Details: | 2.713 inches H x 6.137 inches L Single Slot |
| Delivery Time: | 15-30 word days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs |
| NAME: | 8 GB GDDR6 Turing Architecture Original Brand New NVIDIA Quadro Graphics Card T1000 | Keyword: | 8 GB GDDR6 Turing Architecture Original Brand New NVIDIA Quadro Graphics Card T1000 |
|---|---|---|---|
| Model: | NVIDIA Quadro T1000 8G | GPU Architecture: | NVIDIA Turing Architecture |
| CUDA Parallel Processing Cores: | 896 | Single-Precision Performance: | 2.5 TFLOPS |
| Frame Buffer Memory: | 8 GB GDDR6 | Memory Interface: | 128-bit |
| Memory Bandwidth: | Up To 160 GB/s | Max Power Consumption: | 50W |
| Form Factor: | 2.713 Inches H X 6.137 Inches L Single Slot | Product Weight: | 132.6 G |
| Thermal Solution: | Active | ||
| High Light: | 8G Leadtek Graphics Card,T1000 Leadtek Graphics Card,8G leadtek nvidia t1000 |
||
NVIDIA CUDA Parallel Processing Architecture
SMM architecture (NVIDIA Turing streaming multi-processor design that delivers greater processing and efficiency)
Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
API support includes:
CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
96 KB of RAM (dedicated shared memory per SM)
Advanced Display Features
Support for any combination of four connected displays
Four DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 @ 120 Hz and 5120x2880 @ 60 Hz)
HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K @ 60 Hz 10b/12b HEVC
Decode, 4K @ 60 Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort, DVI, and HDMI adapters
12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
Full OpenGL quad buffered stereo support
Underscan/overscan compensation and hardware scaling
NVIDIA RTX Desktop Manager
Support for Nvidia Mosaic

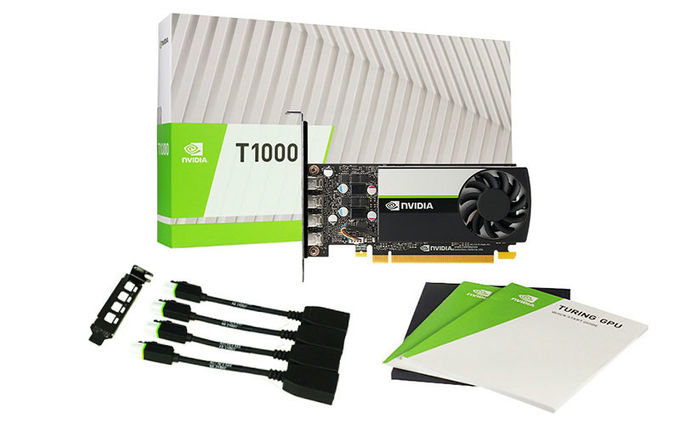

NVIDIA Packaging and Accessories
NVIDIA T1000
Quick Start Guide
Support Guide
4 mDP to DP Adapters
1 Low Profile Bracket
NVIDIA Quadro T1000 Specification
| GPU Architecture | NVIDIA Turing Architecture |
| CUDA Parallel Processing cores | 896 |
| Single-Precision Performance | Up to 2.500 TFLOPS |
| Frame Buffer Memory | 8 GB GDDR6 |
| Memory Interface | 128-bit |
| Memory Bandwidth | Up to 160 GB/s |
| Max Power Consumption |
50W |
| Graphics Bus | PCI Express 3.0 x16 |
| Display Connectors | mDP 1.4 (4) |
| Form Factor | 2.713 inches H x 6.137 inches L Single Slot |
| Product Weight | 132.6g |
| Thermal Solution | Active |
DisplayPort and HDMI Digital Audio
Support for the following audio modes:
Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
DisplayPort and HDMI Digital Audio
Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
Word sizes of 16-bit, 20-bit, and 24-bit
Mini-DisplayPort Latch mini-DisplayPort connector is designed with a custom retention
mechanism to firmly secure its connection with the display cable.
