| Place of Origin: | China |
|---|---|
| Brand Name: | Leadtek |
| Model Number: | WinFast WS1040 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Height 16.7" (424mm) Width 7.6" (193mm) Depth 20.68" (525.3mm) |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |
| NAME: | Leadtek WinFast WS1040 PC Workstation Server For AI Deep Learning 3D Rendering | Keyword: | Leadtek WinFast WS1040 PC Workstation Server For AI Deep Learning 3D Rendering |
|---|---|---|---|
| CPU: | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors And Intel® Xeon® Scalable Processors Support CPU TDP 270W Up To 40 Cores | Memory Capacity: | 16 DIMM Slots Up To 5TB: 8x 128 GB DRAM And 8x 512 GB Pmem Supports Intel® Optane™ Persistent Memory 200 Series |
| Memory Type: | 3200/2933/2666 MHz ECC DDR4 RDIMM/LRDIMM | Chipset: | Intel® C621A Chipset |
| SATA: | 8 SATA3 (6Gbps) Ports | Network Controllers: | Dual LAN With GbE |
| NVMe: | 2 NVMe Support With M.2 Socket | LAN: | 2 RJ45 Gigabit Ethemet LAN Ports (IPMI Shared On LAN Port1) |
| USB: | 2 USB 3.2 Gen2 Port(s) (1 Front; 1 Rear) 6 USB 3.2 Gen1 Port(s) (2 Front; 4 Rear) | PCI-Express: | 5 PCI-E 4.0 X16 Slots 1 PCI-E 4.0 X8 Slots |
| High Light: | WinFast PC Workstation server,Leadtek PC Workstation server,Leadtek deep learning workstation |
||

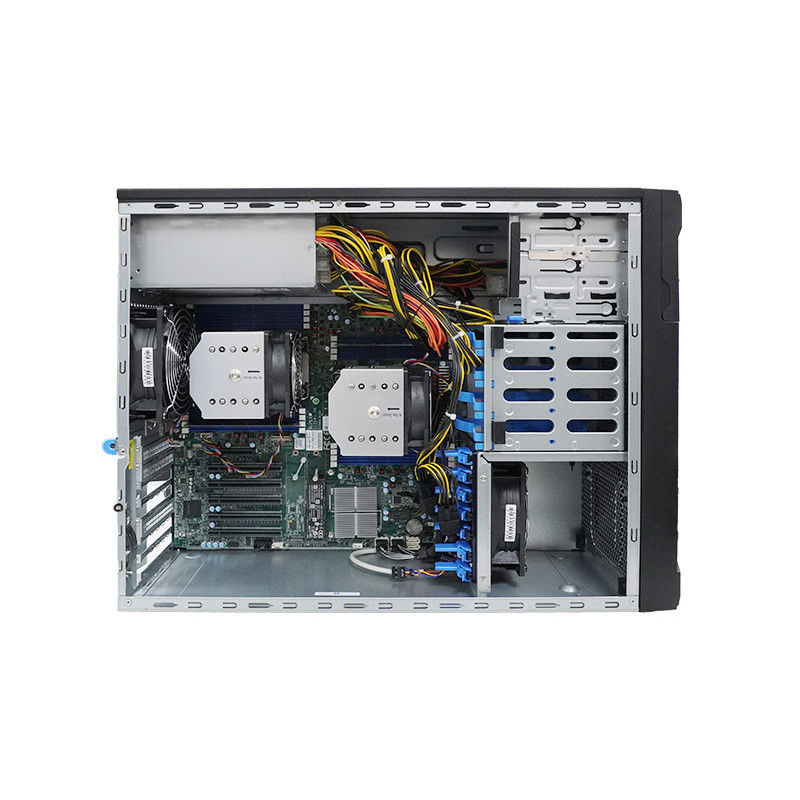

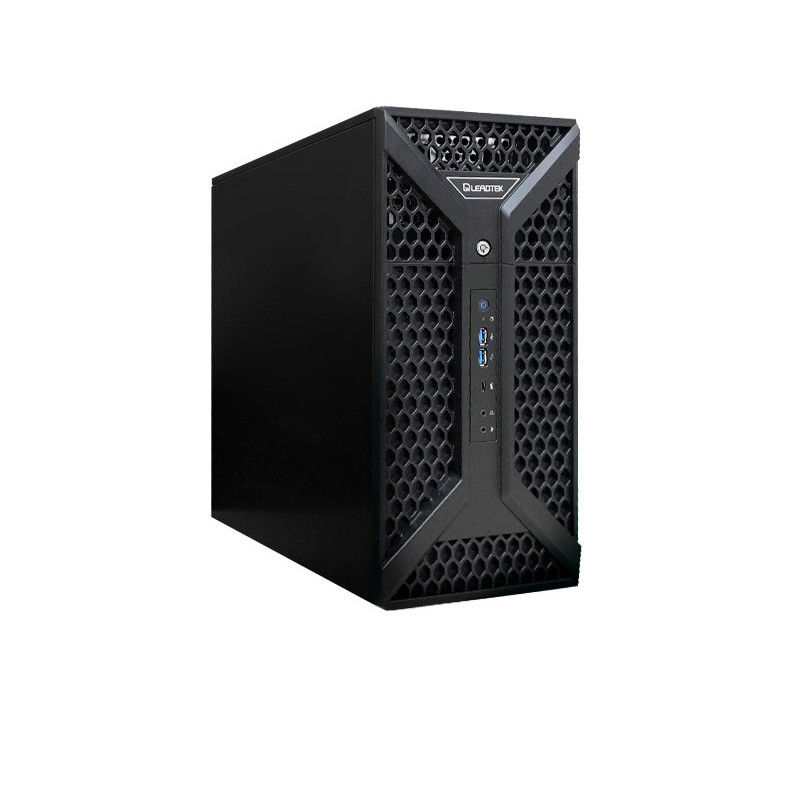

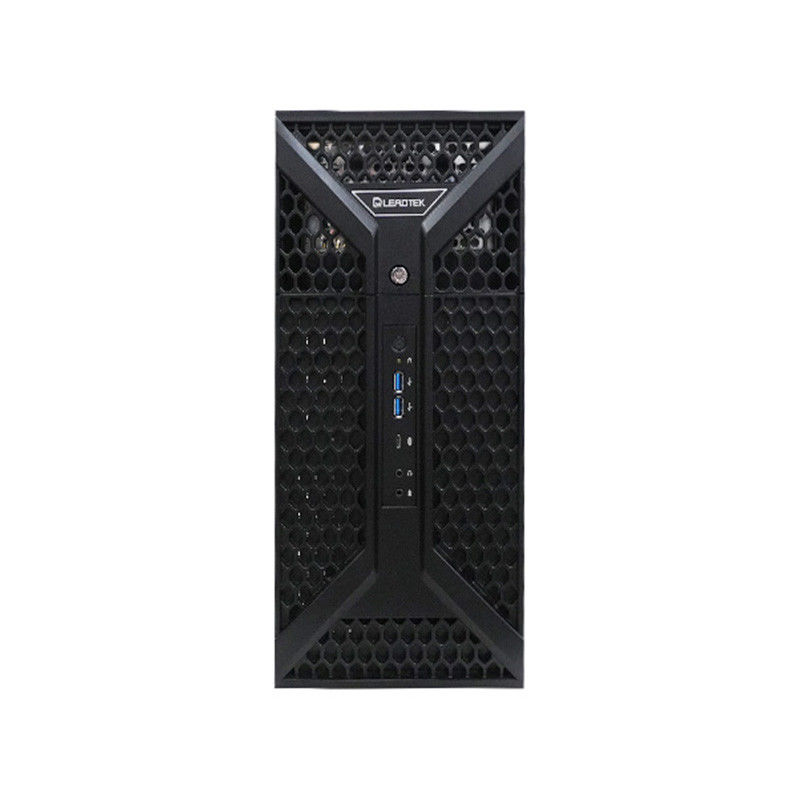

Leadtek WinFast WS1040 PC Workstation Server For AI Deep Learning 3D Rendering
LeadTek deep learning workstation (WinFast WS1040) is validated for optimum performance and exceptional reliability. They are ideal for running software in areas such as AI, data science, rendering, and visual design.
NVIDIA-Certified Workstation
High-end Workstation
Support 2 NVIDIA Double-Width GPUs

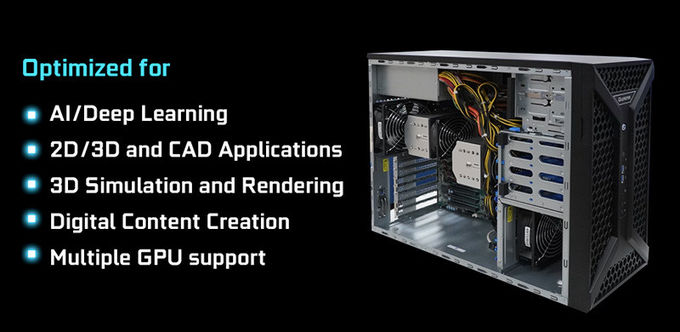

Ideal for AI/Deep Learning/3D rendering
OS Compatibility
Windows 10
Windows Server 2019
Ubuntu 20.04

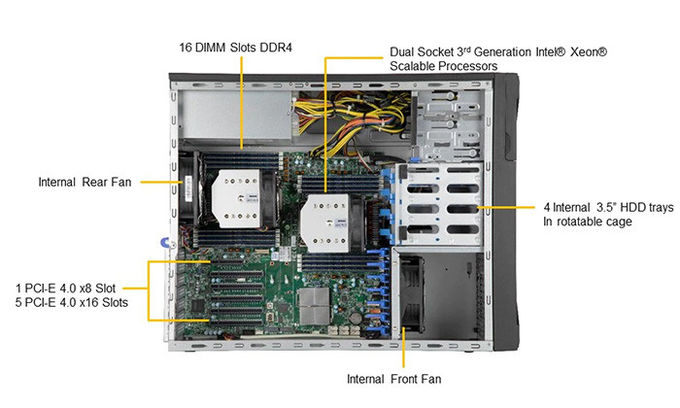

Dual Socket P+(LGA-4189) support 3rd Gen Inter Xeon Scalable processors
16 DIMMs, up to 5TB:8x 128GB DRAM and 8x 512GB PMem
5 PCI-E 4.0 x8 slots
2 NVMe M.2 slots
M.2 Interface: PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
2 PCI-E 4.0 NVMe x8 Internal Port(s)
WinFast WS1040 Specifications
Processor
|
CPU |
Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Support CPU TDP 270W Up to 40 Cores |
System Memory
|
Memory Capacity |
16 DIMM slots |
|
Memory Type |
3200/2933/2666 MHz ECC DDR4 RDIMM/LRDIMM |
On-Board Devices
|
Chipset |
Intel® C621A chipset |
|
SATA |
SATA3 (6Gbps); RAID 0, 1, 5, 10 |
|
Network Controllers |
Dual LAN with GbE |

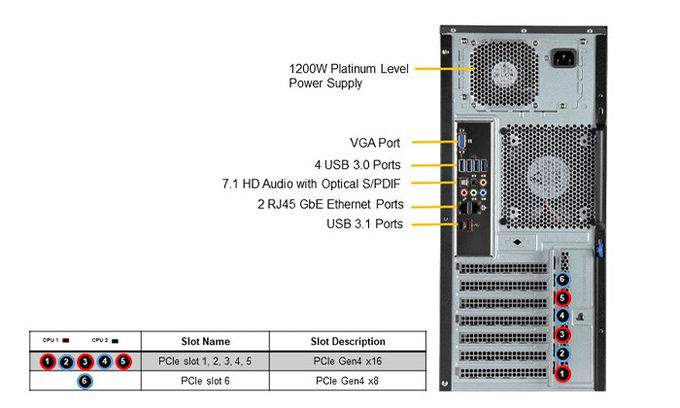

Input/Output
|
SATA |
8 SATA3 (6Gbps) ports |
|
NVMe |
2 NVMe support with M.2 Socket |
|
LAN |
2 RJ45 Gigabit Ethemet LAN ports (IPMI Shared on LAN port1) |
|

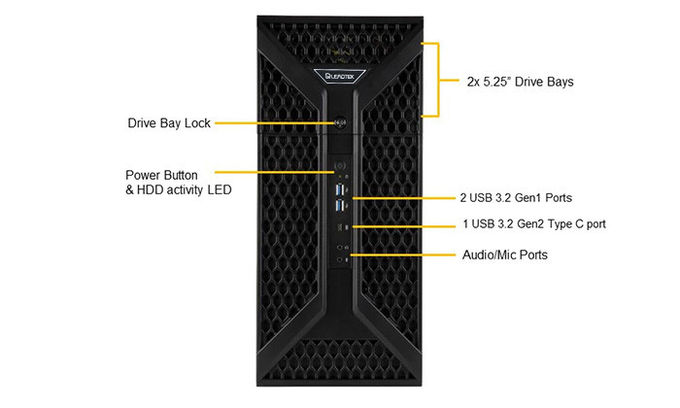

USB |
2 USB 3.2 Gen2 port(s) (1 Front; 1 Rear) |
|
Video |
1 VGA port |
|
Audio |
7.1 HD Audio with optical S/PDIF |

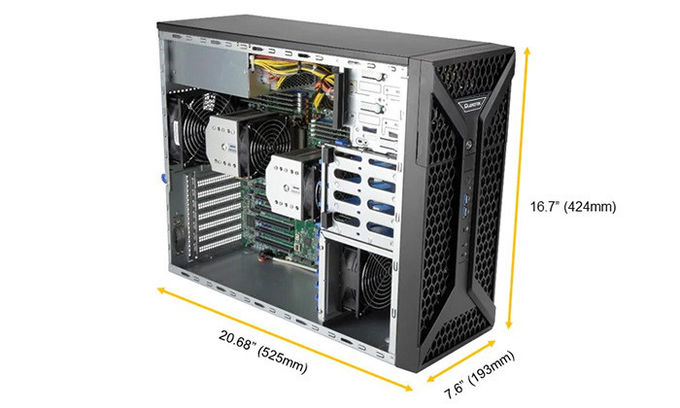

Dimensions and Weight
|
Height |
16.7" (424mm) |
|
Width |
7.6" (193mm) |
|
Depth |
20.68" (525.3mm) |
|
Weight |
Gross Weight: 30 lbs (13.61 kg) |
|
Form Factor |
Mid-Tower |
|
Drive Bays / Storage |
4x 3.5" SATA (NVMe optional) drive bays |
Expansion Slots
|
PCI-Express |
5 PCI-E 4.0 x16 slots |
|
M.2 |
M.2 Interface: PCI-E 4.0 x4 |
System Cooling
|
Fans |
1x 12cm rear exhaust fan |
Power Supply
|
1200W high-efficiency power supply w/ PMBus1x 12cm rear exhaust fan |
|
|
AC Input |
100-240Vac / 8A Max / 50-60Hz |
Operating Environment
|
RoHS |
RoHS Compliant |
|
Environmental Spec. |
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
